| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-R58-4051 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Assembly Type | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Factory Warranty: | 12 Months Warranty | Color: | Black And Gold Silver |
| Spare Part Number: | 4 1/2 X 2 | Application: | For Industrial Machine |
| Number Of Convolution: | Double Convoluted | Packing Size: | 24*24*24(cm) |
| High Light: | SP2441 Industrial Air Bags,Rubber Industrial Air Bags,Industrial Rubber Air Spring |
||
DUNLOP SP2441 Assembly Industrial Air Bags 4.5X2 Rubber Air Spring Manufacturer
Product Description
|
OEM NO. |
W01R584051 |
Model NO. |
4.5X2 |
|
Weight |
2.1 LBS |
Product Type |
Air Spring |
|
Other NO. |
4 1/2 X2 SBR |
Spring Type |
Aluminum Assembly |
|
Factory Warranty |
One-Year Warranty |
Material |
Rubber |
The following Air Spring (Air Bellow) can be Replaced
Firestone Part NO. : W01R584051
Firestone Original NO. : W01 R58 4051
Firestone Spare Part NO. : W01-R58-4051
Firestone Style : 4 1/2'' x2 / 4 1/2'' X2 / 4 1/2 X2
Firestone NO. : w01-r58-4051 / w01r584051 / w01 r58 4051
Continental Contitech : FD 44-10 DI G3/8 CR
Continental Contitech : FD44-10 DI G3/8 CR
Continental Contitech : FD 44-10 DI CR G3/8
Continental Contitech : FD44-10 DI CR G3/4
Continental Contitech : FD 44-10 DI G3/8 M6
Continental Contitech : FD44-10 DI G3/8 M6
Continental Contitech : FD 44-10 DI CR 70206
Continental Contitech : FD44-10 DI CR 70206
Continental Contitech Bellow NO. : FD 44-10 / FD44-10 / FD4410
Dunlop FR : SP2441
Dunlop FR : SP 2441
Dunlop FR : 4 1/2'' X2
Dunlop UK(Pneuride) : PNP 30559 01 07 / PNP305590107
YS-AIR : YS-115-2V / YS 115 2V / YS1152V
Norgren : PM/31042 / PM 31042 / PM31042
NorgrenØ(inch) x convolutions : 4 1/2'' x2 / 4 1/2'' X2 / 4 1/2 X2
Data Information for Dunlop SP 2441
|
Top Cover Plate Diameter |
110mm |
|
Bottom Cover Plate Diameter |
110mm |
|
Gas Hole |
G3/8 |
|
Compressed Height |
60mm |
|
Maximum Expansion Height |
125mm |
|
The Maximum Diameter |
135mm |
|
Maximum Stroke |
70mm |
|
Spring Series |
D |
|
Lowest Temperature |
-22℉ |
|
Maximum Temperature |
194℉ |
Other Kinds of Air Springs
2 3/4 X3 W01-R58-4081 DUNLOP SP 2910
4 1/2 X1 W01-R58-4050 DUNLOP SP 2334
4 1/2 X2 W01-R58-4076 DUNLOP SP 2895
6X1 W01-R58-4052 DUNLOP SP 1368
6X1 W01-R58-4078 DUNLOP SP 2913
6X2 W01-R58-4036 DUNLOP SP543
6X2 W01-R58-4053 DUNLOP SP 1482
6X2 W01-R58-4070 DUNLOP SP 2917
6X3 W01-R58-4095 DUNLOP SP 2861
8X1 W01-R58-4054 DUNLOP SP 1637
8X1 W01-R58 4085 DUNLOP SP 1218
8X2 W01-R58-4045 DUNLOP SP 253
8X2 W01-R58-4055 DUNLOP SP 1490 / SP 918
8X3 W01-R58-4056 DUNLOP SP 2863
10X1 W01-R58-4057 DUNLOP SP 2623
10X2 W01-R58-4048 DUNLOP SP 255
10X2 W01-R58-4058 DUNLOP SP 1538
10X2 W01-R58-4092 DUNLOP SP 1538
10X3 W01-R58-4047 DUNLOP SP 258
10X3 W01-R58-4059 DUNLOP SP 1539
10X3 W01-R58-4068 DUNLOP SP 1539
12X1 W01-R58-4060 DUNLOP SP 1640
12X2 W01-R58-4038 DUNLOP SP 2782NB
12X2 W01-R58-4044 DUNLOP SP 256NB
12X2 W01-R58-4061 DUNLOP SP 1541NB/ SP 921NB
12X2 W01-R58-4073 DUNLOP SP 2665NB
12X3 W01-R58-4037 DUNLOP SP 2666NB/SP 2022NB
12X3 W01-R58-4046 DUNLOP 12X3
Kind Tips
1.We pack the goods in neutral brown cartons. If you have a legally registered trademark patent, we can pack the goods in your branded box after receiving your authorization.
2.We can produce according to your samples or technical drawings.
3.If you are not sure if this product is what you need, please contact us.

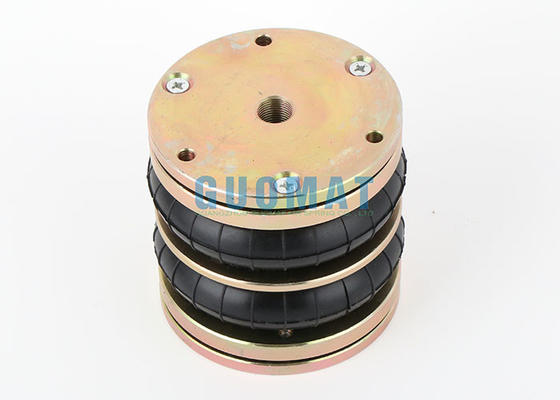

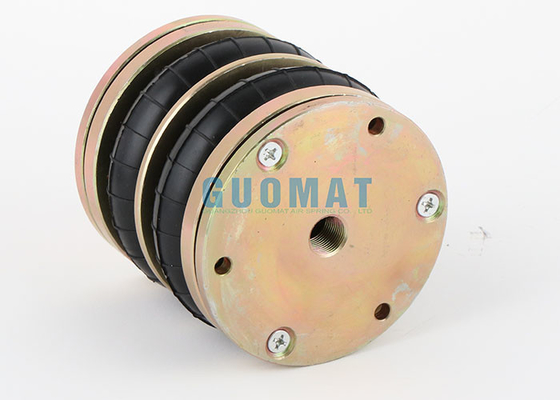

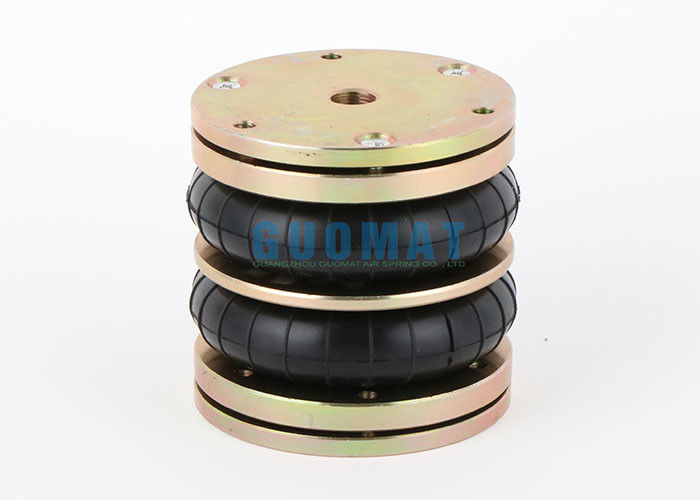

Product Pictures of Dunlop SP2441
