W01R584060 Firestone Industrial Air Spring 12X1 Steel Assembly Single Convoluted Air Bag
Product Description
|
Product Name
|
Dunlop Convoluted Air Spring
|
Type
|
12''X1
|
|
Warranty
|
12 Months
|
Material
|
Steel+Rubber
|
|
Gas Hole
|
G1/2
|
Color
|
Black
|
|
Dunlop
|
SP 1640
|
Firestone
|
W01-R58-4060
|
12''x1 Air Bags Technical Data
Gas Hole/Air Inlet : G1/2
Top Cover Plate Diameter : 260mm
Screw Center Distance of Top Cover Plate : 232mm
Top Cover Plate Screw (Nut) Tooth : 4XM10X1.5
Bottom Cover Plate Diameter : 160mm
Screw Center Distance of Bottom Cover Plate : 232mm
Botton Cover Plate screw(Nut) Tooth : 4XM10X1.5
Design Height : 120mm
Maximum Height : 150mm
Minimun Height : 50mm
Rubber Bellow Max Diameter : 330mm
Replaces These Air Springs (Air Bellows)
|
Continental Contitech
|
FS 412-10 DS 67962
|
|
Continental Contitech
|
FS 412-10 1/2 M10
|
|
Continental Contitech
|
FS 412-10 G1/2 M10
|
|
Continental Contitech
|
FS 412-10 DS G1/2
|
|
Continental Contitech
|
FS 412-10 DS G1/2 M10
|
|
Continental Contitech
|
FS 412-10 DS
|
|
Continental Contitech
|
FS412-10 DS
|
|
Continental Contitech
|
FS412-10DS
|
|
Contitech Bellow
|
FS 412-10
|
|
Contitech Bellow
|
FS412-10
|
|
Contitech Bellow
|
FS41210
|
|
Firestone NO.
|
W01-R58-4060
|
|
Firestone NO.
|
W01R584060
|
|
Firestone NO.
|
W01 R58 4060
|
|
Firestone NO.
|
w01-R58-4060
|
|
Firestone NO.
|
W01-r58-4060
|
|
Firestone NO.
|
w01-r58-4060
|
|
Firestone NO.
|
w01R584060
|
|
Firestone NO.
|
W01r584060
|
|
Firestone Style
|
12x1
|
|
Firestone Style
|
12''x1
|
|
Firestone Style
|
12''X1
|
|
Dunlop FR
|
12''x1
|
|
Dunlop FR
|
SP1540
|
|
Dunlop UK(Pneuride)
|
PNP 30552 01 20
|
|
Dunlop UK(Pneuride)
|
PNP305520120
|
|
Norgren
|
M/31121
|
|
Norgren
|
M 31121
|
|
Norgren
|
M31121
|
|
Nomonal(inch)xconvolutons
|
12''x1 / 12''X1 / 12x1
|
|
Parker
|
12''x1 9109044
|
|
Single Convoluted
|
|
Style NO.
|
Max.Dia
At 7 BAR
(mm)
|
Min.
Height
(mm)
|
Max.
Stroke
(mm)
|
5 BAR Force at Stroke of
|
|
25mm
(kN)
|
50% of
Max. Stroke
|
Maximum Stroke(kN)
|
|
4-1/2x1
|
120
|
50
|
40
|
2.5
|
2.9
|
1.0
|
|
6x1
|
162
|
50
|
50
|
5.9
|
5.9
|
4.1
|
|
8x1
|
215
|
50
|
75
|
11.3
|
10.3
|
3.9
|
|
10x1
|
265
|
50
|
85
|
15.7
|
13.7
|
7.8
|
|
12x1
|
312
|
55
|
95
|
27.5
|
22.8
|
3.9
|
|
14-1/2x2
|
378
|
50
|
115
|
45.1
|
37.3
|
12.3
|
|
16x2
|
406
|
80
|
140
|
45.1
|
33.3
|
14.2
|
Application of air spring in industrial machinery
Air springs are widely used in equipment vibration isolation in industrial machinery, such as in presses, air compressors, centrifuges, vibrating conveyors, control hammers, foundry machinery and textile machinery, optical and laser instruments, integrated circuits, ultra-precision machine tools, etc. on mechanical equipment and precision testing equipment.
For example, in the papermaking, textile and other industries, the paper or cloth needs to bypass many transfer rollers at a high speed during the winding process, so a constant tension force is required during the transfer process to prevent the paper or cloth from slackening, twisting or breaking . In this case, the hollow roll-air spring combination structure is used, which can provide constant tension. Moreover, it has a strong ability to withstand impact loads, and protects the conveying device and the conveying parts from damage.
Air springs can absorb vibration, control movement or boost pressure. Compared with cylinders or other elastic elements with the same function, the air spring has a simple structure, reliable operation, no complicated parameter calculation and structural design, no seal leakage problem, convenient use and maintenance, and long service life.

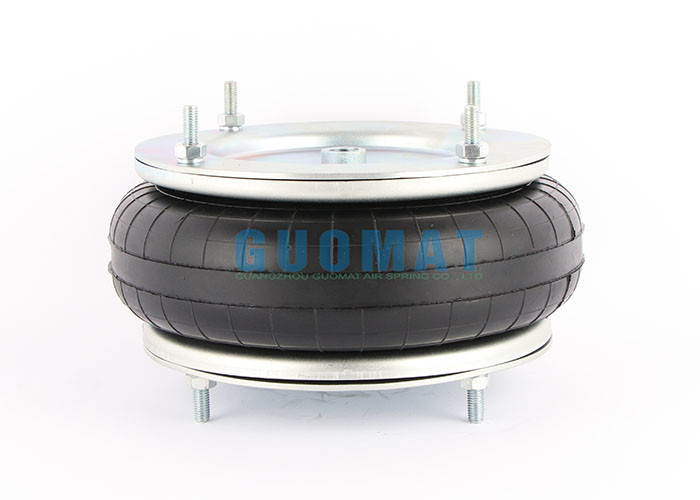

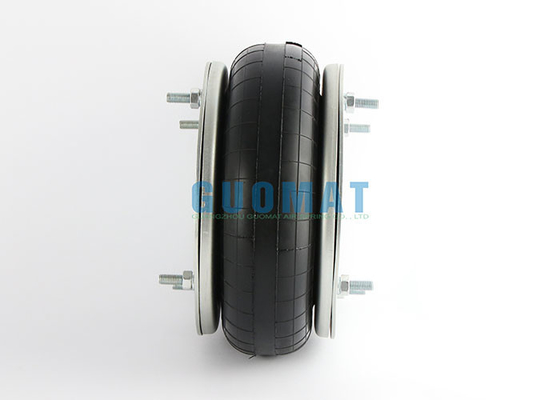

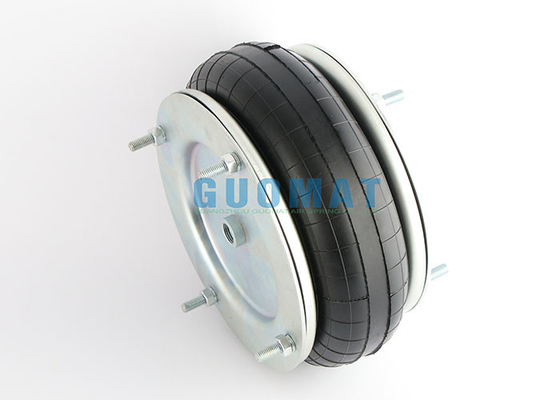

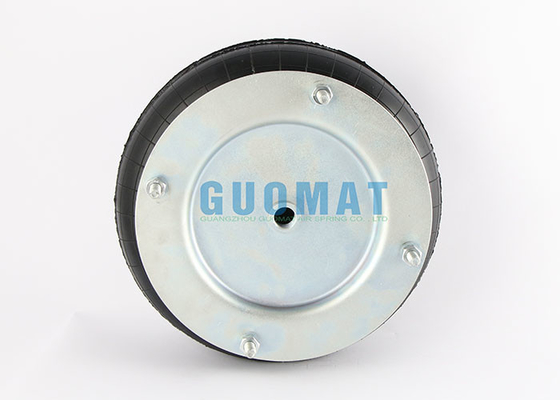

Product Picture
