| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-240-3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $299.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber+Steel | Warranty: | One Year Warranty |
|---|---|---|---|
| Natural Outer Diameter: | 285mm | Color: | Black |
| Number Of Bellows: | Three | YOKOHAMA: | S-240-3R |
| Style: | Triple Convoluted | Used For: | Industrial Punching Machine |
| High Light: | Triple Convoluted Rubber Air Spring,YOKOHAMA S-240-3R Rubber Air Spring,Punching Machine Rubber Air Spring |
||
YOKOHAMA S-240-3R Punching Machine Rubber Air Spring Triple Convoluted Air Lift Bag
Product Description
| GUOMAT No. | F-240-3 |
| YOKOHAMA | S-240-3R |
| YOKOHAMA | S 240 3R |
| YOKOHAMA | S-240-3 |
Model Number : F-240-3
Item Name : Used for Punching Machine Rubber Air Spring
Material : Natural Rubber
Warranty : 1 Year Factory Warranty
Number of Convolution : Three- layers of Rubber
Color : Black
Mark: Can replace Yokohamas F-240-3R industrial punch equipment. Please pay attention to the size data of the product before buying. If you have any questions, please contact us at any time.
S-240-3 Technical Data Purchase Order Data
Design Height : 152 (mm)
Max Height : 232 (mm)
Min Height : 82 (mm)
Common Maximum Travel : ±60 (mm)
Compression Max Outside Diameter : 300 (mm)
Effective Area : 450(cm2)
Volume Load : 7.3 (L)
Dynamic Spring Constant : 324 (n/mm)
Natural Vibration Frequency : 1.9 (Hz)
Maximum Interal Pressure : 0.88 (Mpa)
Internal Pressure Failure : 2.9-3.9 (Mpa)
Other Type of Air Spring
|
Type |
YOKOHAMA Number |
||||
|
S-600- |
S-600-1 |
S-600-2 |
S-600-3 |
S-600-4 |
S-600-5 |
|
S-550- |
S-550-2 |
S-550-3 |
|
|
|
|
S-500- |
S-500-2 |
S-500-3 |
S-500-4 |
S-500-5 |
|
|
S-450- |
S-450-5 |
S-450-4 |
S-450-3 |
S-450-2 |
S-450-1 |
|
S-400- |
S-400-2 |
S-400-3 |
S-400-4 |
S-400-5 |
|
|
S-350- |
S-350-1 |
S-350-2 |
S-350-3 |
S-350-4 |
|
|
S-300- |
S-300-1 |
S-300-2 |
S-300-3 |
S-300-4 |
|
|
S-240- |
S-240-1 |
S-240-2 |
S-240-3 |
S-240-4 |
|
|
S-220- |
S-220-1 |
S-220-2 |
S-220-3 |
S-220-4 |
|
|
S-200- |
S-200-2 |
S-200-3 |
S-200-4 |
|
|
|
S-160- |
S-160-1 |
S-160-2 |
S-160-3 |
S-160-4 |
|
|
S-120- |
S-120-2 |
S-120-3 |
S-120-4 |
|
|
|
S-100- |
S-100-2 |
S-100-3 |
S-100-4 |
|
|
|
S-90- |
S-90-3 |
|
|
||
What are the characteristics of the punch air spring shock absorber:
1. Excellent shock-proof and sound-absorbing performance;
2. Designed with low natural frequency value, the shockproof effect is excellent;
3. Oil-proof cap design, with oil resistance can prevent general oil corrosion;
4. It is suitable for shock equipment vibration, and the vibration of the surrounding environment affects precision equipment, and the effect is excellent.

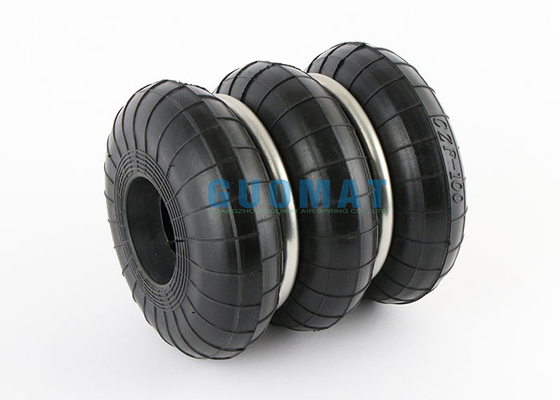

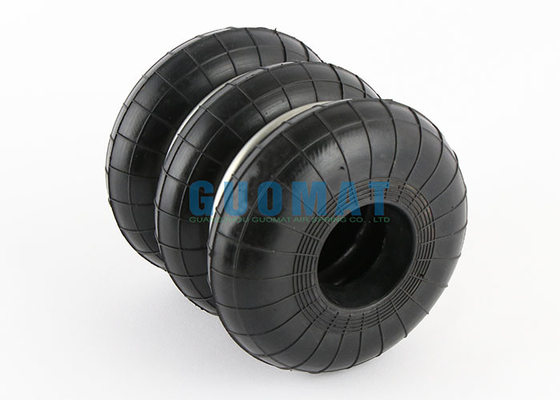

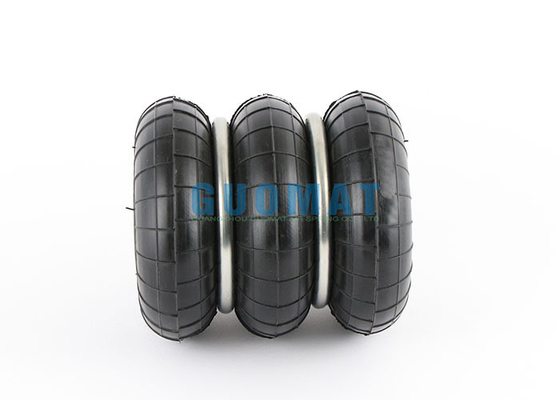

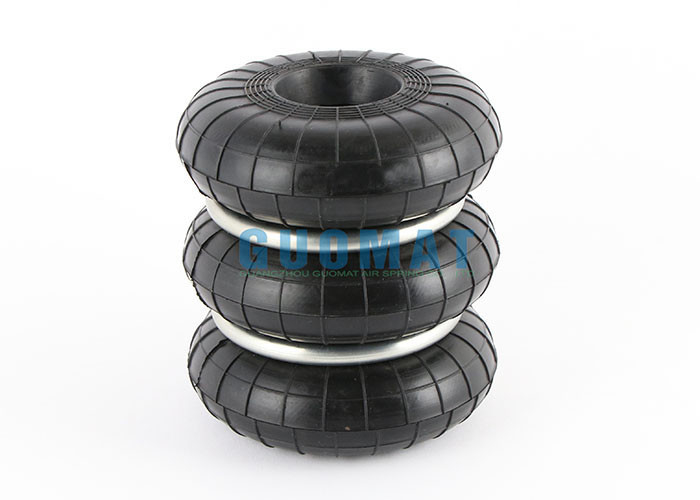

Product Pictures
