| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B 4060 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item: | Suspension Air Spring | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty Period: | 12 Months | Air Connection: | G1/8 |
| Min Pressure: | 0 Bar | Package: | Carton Packing |
| Application: | Contitech FS40-6 | Phoenix: | SP1B04 |
| High Light: | Single Convoluted Air Spring,Industrial Rubber Convoluted Air Spring,SP1B04 Convoluted Air Spring |
||
Single Convoluted Air Spring Contitech FS40-6 G1/8 M8 Plate Industrial Rubber Bellows
Product Description
GUOMAT Single convoluted air spring with crimped plated,G1/8 Gas Hole,M8 Threaded Hole.
1. Hight quality products
2. Competitive factory price
3. Accept small orders or sample orders
4. 1 year warranty
5. Cross information : Contitech FS 40-6 1/8 M8
Specification
|
GUOMAT No. |
1B4060 |
|
Material |
Rubber + Steel |
|
Condition |
Brand-New |
|
Package |
Carton |
|
Place of Origin |
China |
|
Trade Term |
EXW;FOB |
|
Warranty |
12 Months |
|
Payment |
T/T,L/C,Western Union,PayPal |
|
Delivery Time |
2-8 working days after receive your payment |
Packaging Information
|
Packing Units |
Single Item |
|
Net Weight |
1 KG |
|
Gross Weight |
2 KG |
|
Package Size |
24*24*24(cm) |
|
Package |
Export standard packing |
Reference Number
CONTITECH FS 40-6
CONTITECH FS40-6
CONTITECH FS 40-6 1/8 M8
CONTITECH FS 40-6 G1/8 M8
PHOENIX SP1B04
PHOENIX SP 1B04
PHOENIX SP1B 04
WEFORMA WBE100-E1
FS40-6 Air Spring Technical Data
Cover Plate
Top Cover Plate Diameter : 90mm
Bottom Cover Plate Diameter : 90mm
Gas Hole
Gas Hole : G1/8
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : M8X1.25
Distance between Top Cover Plate Screws and Air Holes : 20mm
Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25
Screw Center Distance of Bottom Cover Plate : 20mm
Rubber Bellows
Rubber Bellows MAX Diameter: 145 mm
The Working Stroke : MAX 110 mm to MIN 50 mm
Maximum Height : 110 mm
Minimum Height : 50mm
Contitech CI Style Air Spring
|
FS 40-6 CI |
FS 50-5 CI |
FS 70-7 CI |
|
FS 100-10 CI |
FS 120-12 CI |
FS 200-10 CI |
|
FS 120-9 CI |
FS 330-11 CI |
FS 330-14 CI |
|
FS 120-10 CI |
FS 53011 CI |
FS 530-14 CI |
|
FS 960-12 CI |
FS 1330-11 CI |
FD 40-10 CI |
|
FD 70-13 CI |
FD 110-15 CI |
FD 120-17 CI |
|
FD 120-20 CI |
FD 200-19 CI |
FD 220-22 CI |
|
FD 200-25 CI |
FD 330-22 CI |
FD 330-30 CI |
|
FD 530-22 CI |
FD 530-30 CI |
FD 530-35 CI |
|
FD 960-22 CI |
FT 330-29 CI |
FT 430-32 CI |
|
FT 530-32 CI |
FT 530-35 CI |
FT 960-34 CI |
|
FD 1330-25 CI |
FT 1330-35 CI |

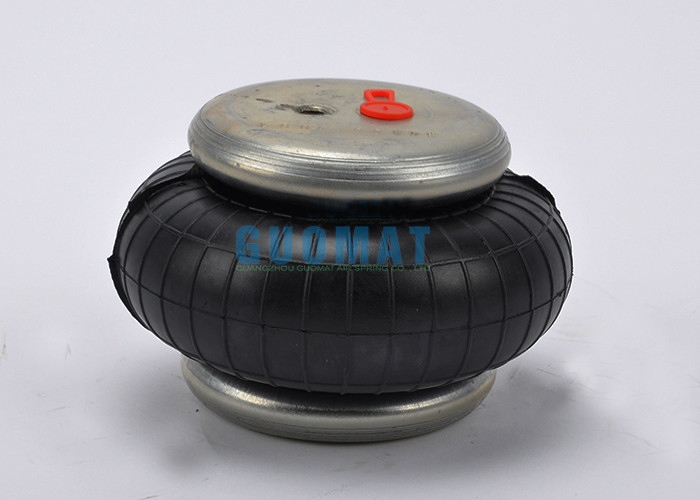

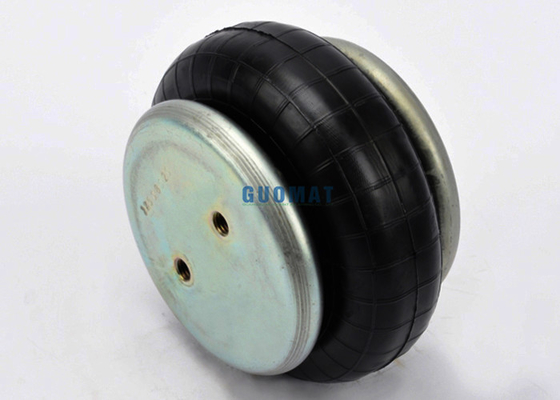

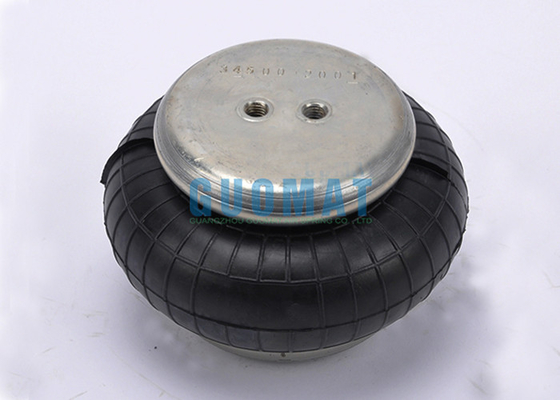

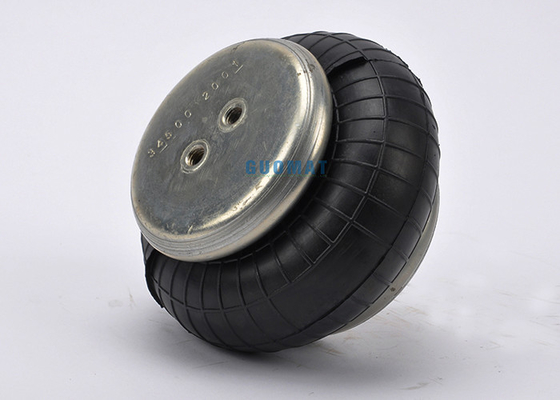

The Product Real Photos
