| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber+Steel | Warranty: | 1 Year |
|---|---|---|---|
| Gas Hole: | G1/2 | Min. Pressure: | 0 Bar |
| Color: | Black | Package: | Neutral Brown Carton Packaging |
| Cross Number: | FD76-14 DS CR | Function: | Shock Absorption |
| High Light: | Contitech FD76-14 Industrial Air Spring,Suspension Industrial Air Spring |
||
Contitech FD76-14 Packaging Machinery Suspension Air Spring G1/2 Rubber Air Bellows China
Product Description
FIRESTONE W01R584053
FIRESTONE W01-R58-4053
FIRESTONE W01 R58 4053
FIRESTONE Part Number w01r584063
FIRESTONE Part Number w01 r58 4063
FIRESTONE Part Number w01-r58-4063
DUNLOP SPRINGRIDE SP1482
DUNLOP SPRINGRIDE SP 1482
DUNLOP PNEURIDE 6X2(Steel)
DUNLOP PNEURIDE 6''X2
CONTITECH FD 76-14 DS CR
CONTITECH FD 76-14 DS M10
CONTITECH FD 76-14 DS M10 G1/2
CONTITECH FD 76-14 M10 G1/2
CONTITECH FD 76-14 M10 G1/2 DS
CONTITECH FD 76-14 M10 G1/2 DS CR
CONTITECH FD 76-14 / FD76-14 FD76 14
NORGREN M/31062
NORGREN M 31062
NORGREN M31062
PARKER 9109001
PARKER 910 900 1
FD 76-14 DS CR Double Convolution Air Actuator Technical Data
Top Cover Plate Diameter (Width): Ø153.5 mm
Bottom Cover Plate Diameter (Width): Ø153.5 mm
Material top and bottom plate:Aluminium
Gas Hole / Air Inlet : G1/2
Top Cover Plate Screw (Nut) Tooth : 4 X M8
Bottom Cover Plate Screw (Nut) Tooth : 4 X M8
Rubber Bellows Diameter : Max Ø178 mm
The Working Stroke : 75 mm - 190 mm
With Girdle Hoop :One Pieces of Girdle Hoop
|
Type |
Firestone |
Dunlop Pneuride |
Dunlop Springride |
Contitech |
Norgren |
Parker |
|
4 1/2" x 1 |
W01R584050 |
4 1/2" x 1 |
SP2334 |
FS 44-5 DI |
PM/31041 |
9109400 |
|
4 1/2" x 2 |
W01R584051 |
4 1/2" x 2 |
SP2441 |
FD 44-10 DI |
PM/31042 |
9109401 |
|
4 1/2" x 3-E |
W01R584035 |
4 1/2" x 3 |
SP2895 |
FT 44-15 DI |
PM/31043 |
9109402 |
|
6" x 1 |
W01R584078 |
6" x 1 |
SP2913 |
FS 76-7 DI |
PM/31061 |
9109004A |
|
6" x 1 |
W01R584052 |
6" x 1 |
SP1536 |
FS 76-7 DS |
M/31061 |
9109004 |
|
6" x 2 |
W01R584070 |
6" x 2 |
SP2917 |
FD 76-14 DI |
PM/31062 |
9109001A |
|
6" x 2 |
W01R584053 |
6" x 2 |
SP1482 |
FD 76-14 DS |
M/31062 |
9109001 |
|
6" x 3 |
|
6" x 3 |
SP2923 |
FT 76-20 DI |
PM/31063 |
9109007A |
|
6" x 3 |
W01R584095 |
6" x 3 |
SP2861 |
FT 76-20 DS |
M/31063 |
9109007 |
|
8" x 1 |
W01R584054 |
8" x 1 |
SP1537 |
FS 138-8 DS |
M/31081 |
9109014 |
|
8" x 2 |
W01R584055 |
8" x 2 |
SP1490 |
FD 138-18 DS |
M/31082 |
9109011 |
|
8" x 3 |
W01R584056 |
8" x 3 |
SP2863 |
FT 138-26 DS |
M/31083 |
9109017 |
|
10" x 1 |
W01R584057 |
10" x 1 |
SP2523 |
FS 210-10 DS |
M/31101 |
9109024 |
|
10" x 2 |
W01R584058 |
10" x 2 |
SP1538 |
FD 210-22 DS |
M/31102 |
9109021 |
|
10" x 3 |
W01R584059 |
10" x 3 |
SP1539 |
FT 210-32 DS |
M/31103 |
9109031 |

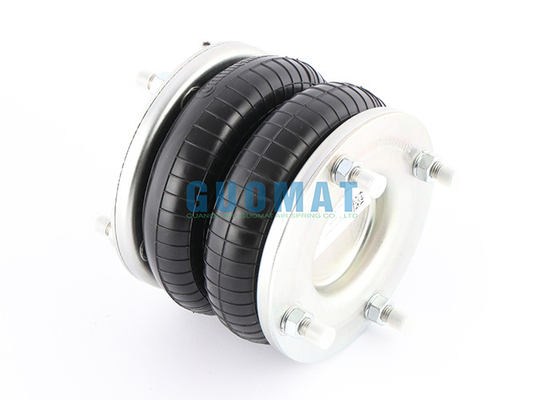

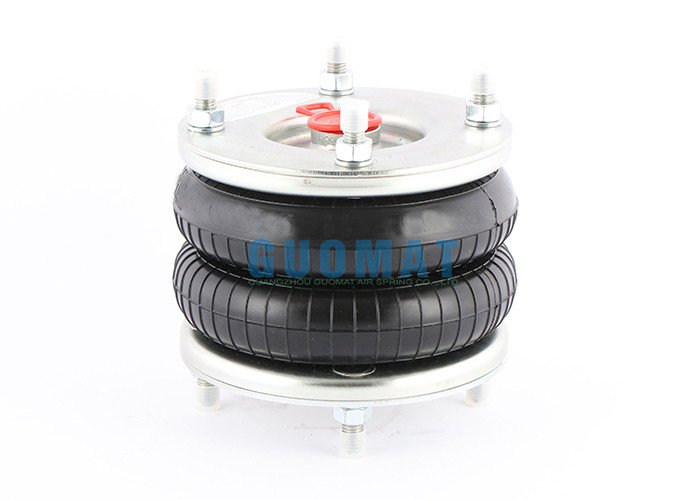

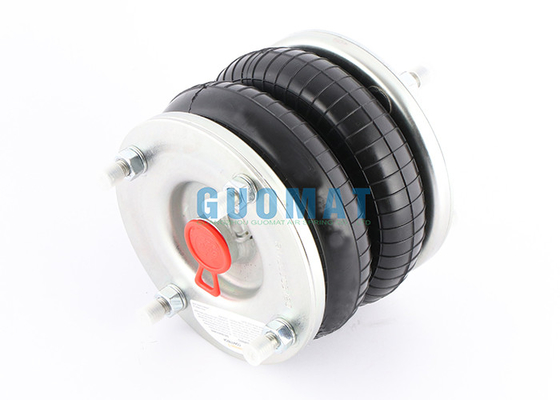

Real Picture
