Double Convoluted Rubber Bellows Industrial Air Spring For Paper Machine Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B250190

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber+Steel	Warranty:	1 Year
Cover Plate:	Aluminum Plate	Package:	Neutral Brown Carton Packaging
Function:	Shock Absorption	Type:	Air Spring
Service:	Sample Order	Rubber Type:	Natural Rubber
Highlight:	Rubber Bellows Industrial Air Spring , Double Convoluted Industrial Air Spring , Aluminum Plate Industrial Air Spring

High Quality Double Convoluted Rubber Bellows Air Spring For Paper Machine Equipment

Product Description

Product Name:	Air Spring
Description:	Industrial Air Spring Platforms
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber
Package:	Carton
Payment:	L/C T/T Western Union PayPal
Port of shipment	NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shippment:	Bye sea, By air, by DHL Fedex

Technical Data

Path	Minimal Compression	Safe Stretch	Working Stroke
Ø185mm	Ø85mm	Ø220mm	Ø135mm

Top Cover Plate Diameter : 160 mm

Bottom Cover Plate Diameter : 160 mm

Gas Hole / Air inlet : G1/4 / G3/4

Top Cover Plate Screw (Nut) Tooth : 2XM10

Bottom Cover Plate Screw (Nut) Tooth : 2XM8

Screw Center Distance of Top Cover Plate : 89 mm

Screw Center Distance of Bottom Cover Plate : 89 mm

Distance Between Air Hole and Screw : 40 mm

Rubber Bellows MAX Diameter : 263 mm

The Working Stroke : 190 mm

Bearing Capacity	Inflation Pressure		0.2Mpa	0.3Mpa	0.4Mpa	0.5Mpa	0.6Mpa
	Installation Height
	85	(mm)	681	1019	1355	1750	2069
	117	(mm)	622	935	1291	1600	1937
	149	(mm)	579	900	1224	1505	1839
	181	(mm)	541	791	1060	1347	1625
	190	(mm)	511	758	980	1275	1569
	213	(mm)	433	647	865	1086	1338
	220	(mm)	416	622	824	1055	1271
	245	(mm)	320	475	649	810	917
Stiffness and frequency at design height	Vertical Stiffness	(Kg/cm)	97	140	155	190	200
	Natural frequency	Hz	2.18	2.15	1.99	1.93	1.79
	Natural frequency	cpm	131	129	119	116	107

Bearing Capacity	Inflation Pressure		0.7Mpa	0.8Mpa	0.7Mpa Volume(dm³)
	Installation Height
	85	(mm)	2427	2811	3.26
	117	(mm)	2331	2641	4.36
	149	(mm)	2043	2450	5.38
	181	(mm)	1904	2187	6.2
	190	(mm)	1834	2098	6.4
	213	(mm)	1545	1800	6.94
	220	(mm)	1524	1740	7.03
	245	(mm)	1194	1393	7.39
Stiffness and frequency at design height	Vertical Stiffness	(Kg/cm)	230	248
	Natural frequency	Hz	1.77	1.72
	Natural frequency	cpm	106	103

The Industrial Application

The air spring technology is applied to the shock absorption of industrial equipment, which effectively improves the working efficiency of the equipment and the working efficiency of the equipment and the safe service life of the equipment. Air springs do not have internal levers, pistons, or sliding seals like ordinary cylinder devices, thus greatly reducing the cost of using pneumatic or hydraulic cylinders and winning more economic benefits for customers.

Features:
Low cost and wide range of specifications
Long service life, no maintenance and lubrication, no internal manipulation or pistons.
No friction effect, soft medium
Bending energy, side load capacity, compact original height

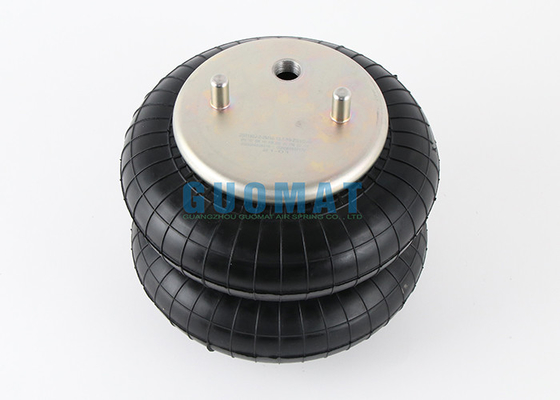

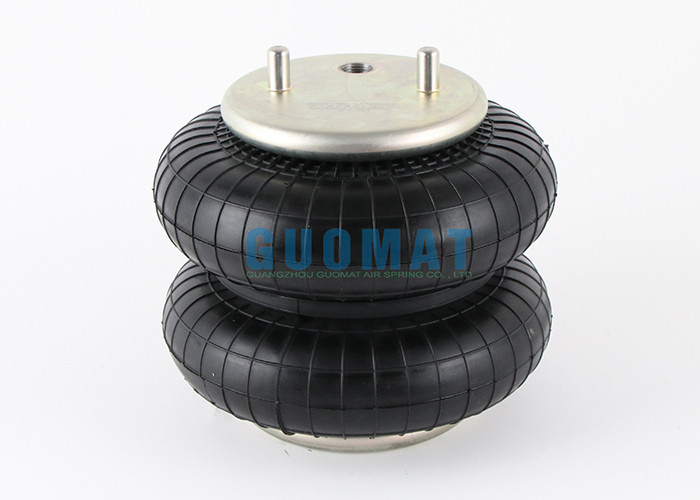

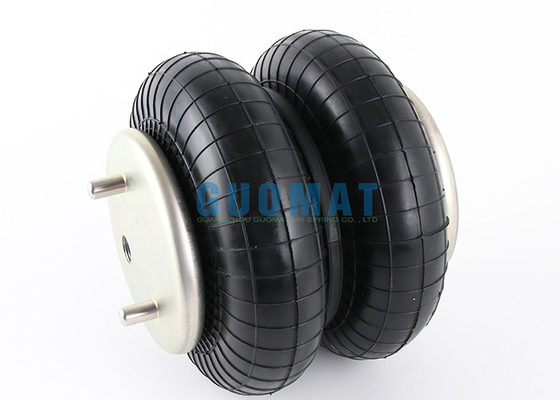

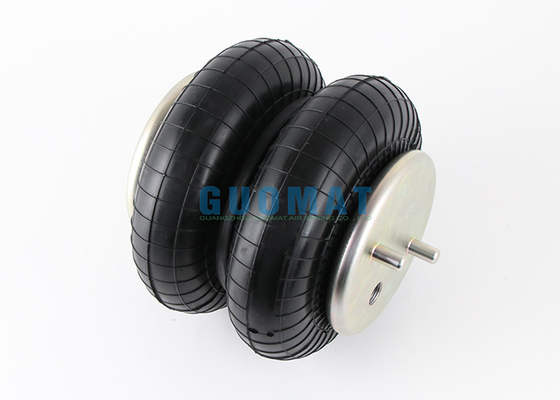

Product Images
