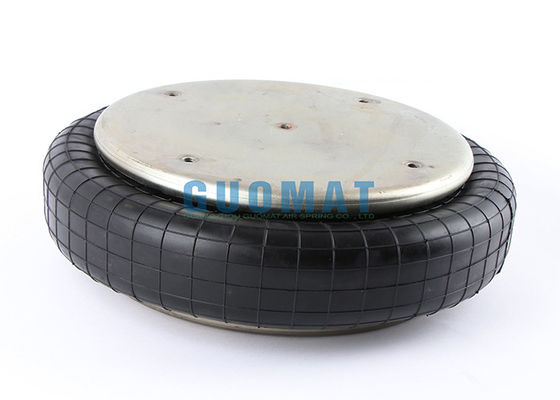

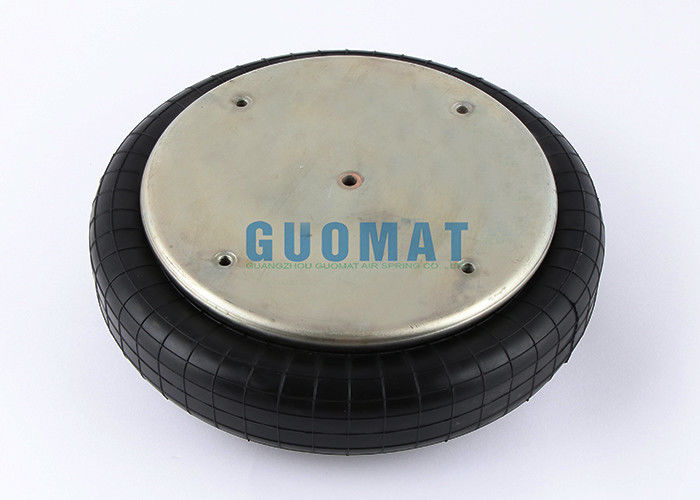

1B14-372 Goodyear Helper Springs Contitech Rubber Air Bellow FS530-14 CI G3/4 With Crimped Plate
Product Description
OEM Cross Reference Number
Goodyear Part Number : 1B14-372
Goodyear Part Number : 1B14 372
Goodyear Part Number : 1B14372
Goodyear Part Number : 1B14/372
Goodyear Number : 578912372
Goodyear Number : 578 912 372
Goodyear Number : 578-912-372
Goodyear Number : 578/912/372
Contitech Number : FS53014
Contitech Number : FS 530 14
Contitech Number : FS 530-14
Contitech Number : fs53014
Contitech Number : fs530-14
Contitech Part Number : FS 530-14 CI
Contitech Part Number : FS 530-14 G3/4
Contitech Part Number : FS 530-14 CI G3/4
Contitech Part Number : FS530-14 CI
Contitech Part Number : FS530-14 G3/4
Contitech Part Number : FS530-14 CI G3/4
Contitech Part Number : FS 530 14 CI G 3/4
Firestone Number : W01-M58-6369
Firestone Number : W01M586369
Firestone Number : W01 M58 6369
Firestone Number : w01-m58-6369
Firestone Number : w01 m58 6369
Firestone Number : w01m586369
FS530-14 Air Spring Technical Parameter
|
♦Nut/Blind Nut
|
|
Top Cover Plate Screw (Nut) Tooth
|
4x3/8 -16UNC
|
|
Screw Center Distance of Top Cover Plate
|
158.8mm
|
|
Bottom Cover Plate Screw (Nut) Tooth
|
4X3/8-16UNC
|
|
Screw Center Distance of Bottom Cover Plate
|
158.8mm
|
|
♦Gas Hole / Air inlet / Air Fitting
|
|
Gas Hole / Air inlet
|
3/4NPTF
|
|
♦Cover Plate
|
|
Top Cover Plate Diameter
|
289mm
|
|
Bottom Cover Plate Diameter
|
289mm
|
|
♦Rubber Bellow
|
|
Rubber Bellows MAX Diameter
|
406mm
|
|
The Working Stroke
|
MAX 160mm to MIN 81 mm
|
|
Maximum Height
|
160mm
|
|
Minimum Height
|
81mm
|
|
Compression Height
|
79mm
|
|
Min. Pressure 0 bar
|
|
Return Force to Min Height ≤ 300 N
|
|
Overall Weight 6.1KG
|
Vibration isolation – dynamic characteristic values
| Pressure P ［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V ［I］ |
| Force (Load) ［KN］ |
18.6 |
24.9 |
31.5 |
37.9 |
44.4 |
50.8 |
11 |
| Spring Rate ［N/cm］ |
365 |
441 |
534 |
614 |
722 |
792 |
| Natural Frequency［Hz］ |
2.2 |
2.1 |
2.1 |
2.0 |
2.0 |
2.0 |
Pneumatic application – static characteristic values
| Pressure P ［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V ［I］ |
| Height H ［mm］ |
160 |
17.1 |
23 |
29 |
35 |
41.2 |
47.3 |
12 |
| 140 |
20 |
26.8 |
33.7 |
40.5 |
47.7 |
54.5 |
11 |
| 120 |
22.3 |
29.8 |
37.3 |
44.9 |
52.7 |
60.2 |
9.5 |
| 100 |
24.1 |
31.9 |
40 |
48 |
56.3 |
64.3 |
8.2 |
| 80 |
25.3 |
33.4 |
41.9 |
50.3 |
58.8 |
67.1 |
6.6 |
| 60 |
26 |
34.5 |
43.4 |
52 |
60.8 |
69.1 |
4.6 |
