| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8-550 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 1 Year | Spring Material: | Metal+Rubber |
|---|---|---|---|
| Goodyear: | 1B8-550 | Spring Type: | Single Convoluted Type |
| Air Spring: | 1B8x4 | Spring Rubber: | High-Quality Rubber |
| Application: | For Industrial Equipment Application | ||
| High Light: | Single Convoluted Air Suspension Air Spring,Air Suspension Air Spring Goodyear 1B8-550 |
||
Goodyear 1B8-550 Single Convoluted Air Suspension Air Spring For Industrial Equipment
Product Description
Item Name : Goodyear Air Springs Shock
Item Number : 1B8x4
Warranty : 1 Year
Place of Origin : Guangdong,China
Material : Rubber+Metal
Net Weight : 2.4KG
Packing Size : 24*24*22(cm)
Application : For Industrial Equipment Shock Absorption
GUOMAT 1B4X4 Original Equipment Manufacturer Information
Air Spring Supplier : Goodyear
Supplier Number : 1B8-550
Air Spring Supplier : Goodyear
Supplier Number : 1B8 550
Air Spring Supplier : Goodyear
Supplier Number : 1B 8-550
Air Spring Supplier : Contitech
Supplier Number : FS 120-10
Air Spring Supplier : Contitech
Supplier Number : FS 120-10
Air Spring Supplier : Contitech
Supplier Number : FS120-10
Air Spring Supplier : Contitech
Supplier Number : FS 12010
Air Spring Supplier : Contitech
Supplier Number : FS12010
Air Spring Supplier : Firestone
Supplier Number : W01-358-7564
Air Spring Supplier : Firestone
Supplier Number : W013587564
Air Spring Supplier : Firestone
Supplier Number : W01 358 7564
Continental Contitech Number : FS 120-10
Continental Contitech Number : FS 120-10 CI
Continental Contitech Number : FS120-10 CI
Continental Contitech Number : FS 120 10 CI
Continental Contitech Number : FS120 10 CI
|
Failure Testing |
≥3 millions |
|
Working Temperature |
-40℃ bis +70℃ |
|
Technical Data |
Top Cover Plate Diameter:135mm |
|
Bottom Cover Plate Diameter:135mm |
|
|
Gas Hole / Air inlet:1/4NPTF |
|
|
Rubber Bellows MAX Diameter:230mm |
|
|
The Working Stroke:MAX 140 mm to MIN 50 mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Screw Center Distance of Top Cover Plate:70mm |
|
|
Screw Center Distance of Bottom Cover Plate:70mm |
|
|
Screw And Gas Hole Distance of Top Cover Plate:35mm |
Min.Pressure : 0Bar
Return Force to Min.Height : ≤200N
Overall Weight with Clamped Plates : 2.0kg
Other Goodyear Air Spring
|
578913201 |
2B9-209 |
1B9-202 |
|
2B8-550 |
578913201 |
2B8-153 |
|
1B12-300 |
2B8-150 |
1B12-313 |
|
2B8-153 |
1B12-301 |
2B8-550 |
|
2B9-253 |
579913500 |
2B9-352 |
|
2B9-246 |
579913532 |
2B9-252 |
|
1B7-540 |
2B9-218 |
1B8-550 |
|
2B9-250 |
2B9-253 |
2B9-254 |
|
579913502 |
2B9-269 |
2B9-251 |
|
2B7-540 |
2B9-606 |
2B12-425 |
|
2B9-228 |
2B12-311 |
2B9-229 |
|
2B12-411 |
2B9-216 |
2B12-412 |
|
2B9-204 |
2B12-304 |
2B9-207 |
|
2B12-309 |
2B9-201 |
2B12-316 |
|
2B9-206 |
2B12-320 |
2B9-210 |
|
2B12-307 |
2B9-200 |
2B12-433 |
|
2B9-202 |
2B12-445 |
2B9-216 |

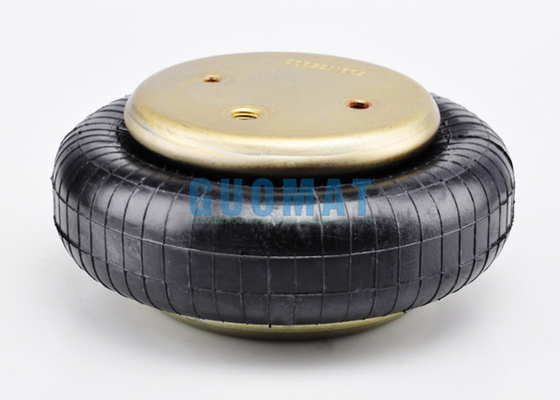

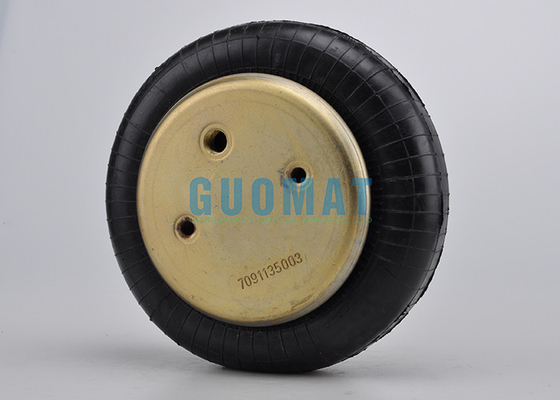

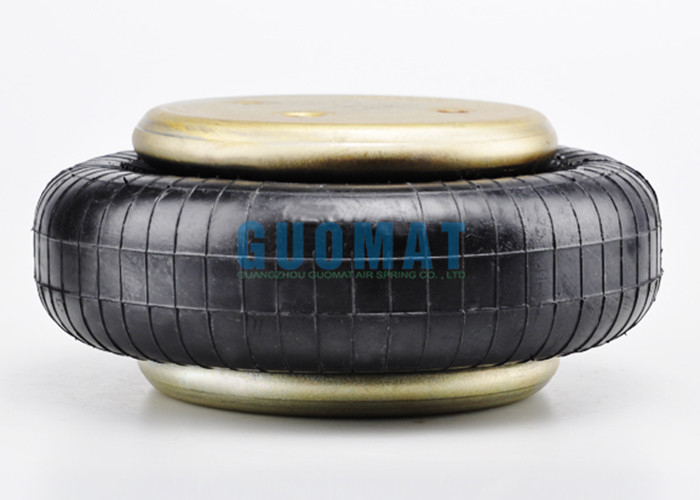

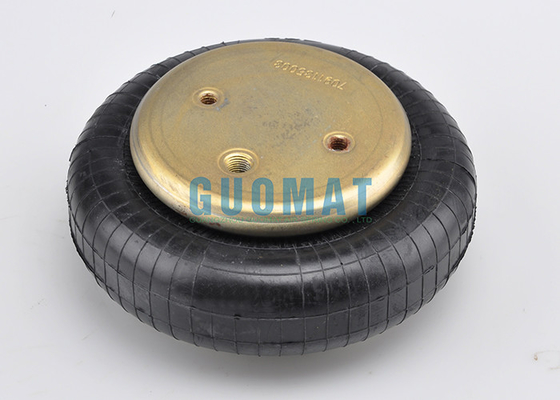

Product Detailed Pictures
