| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7451 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber+Metal | Warranty: | 12 Months Warranty |
|---|---|---|---|
| OEM NO.: | W013587451 | Style: | Style 110 Air Bag |
| Gas Hole: | 1/4NPTF | Plate: | With Crimped Plates |
| Weight: | 14.5kg | Packing Size: | 38*38*22(cm) |
| High Light: | Firestone Industrial Air Spring,W01-358-7451 Industrial Air Spring |
||

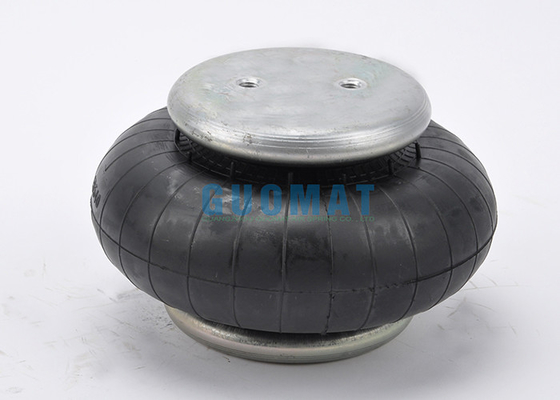

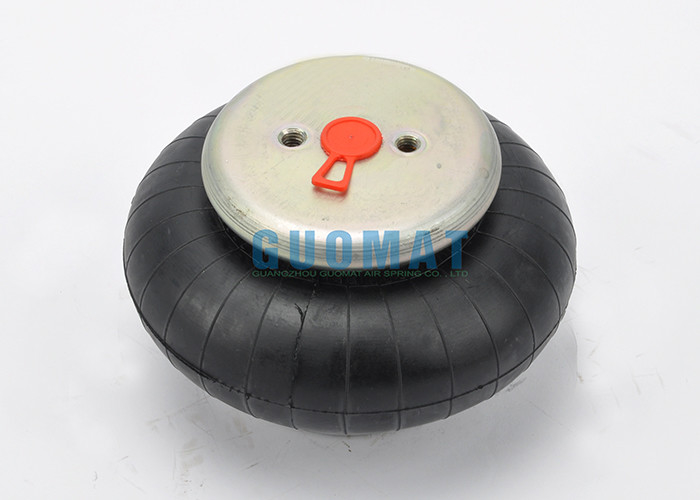

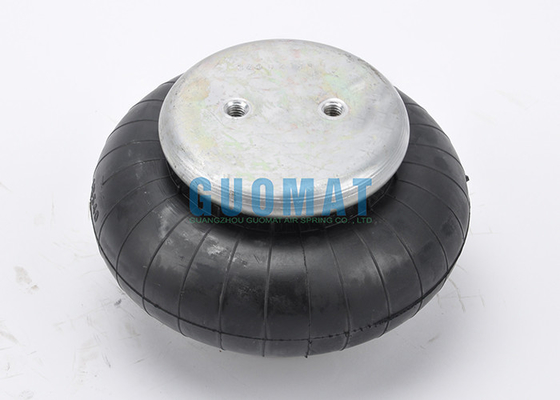

W01-358-7451 Firestone Industrial Air Springs Bellows Actuator For Paper Machine Equipment
Product Description
|
Product Name |
Industrial Air Spring |
Model NO. |
1B7451 |
|
Warranty |
12 Months Warranty |
Material |
Rubber |
|
Type |
Single Convoluted Type |
Firestone |
W01-358-7451 |
|
Delivery Time |
2-8 working days |
Package |
Brown Cartons |
Product Packaging Details
| Model NO. |
Net Weight (kg) |
Gross Weight (kg) |
Packaging Length (cm) |
Packaging Width (cm) |
Packaging Height (cm) |
| W01 358 7451 | 1.7 | 14.5 | 38 | 38 | 22 |
OEM Reference Number
Firestone Number : W01-358-7451
Firestone Number : W01 358 7451
Firestone Number : W013587451
Firestone Part Number : w01-358-7451
Firestone Part Number : w013587451
Firestone Part Number : w01 358 7451
W01-358-7451;W01 358 7451;W013587451;w01-358-7451;w013587451;w01 358 7451
W01-358-7451 Firestone Single Convoluted Gas Bags Technical Data
|
Cover Plate |
|
Top Cover Plate Diameter : 115mm |
|
Bottom Cover Plate Diameter : 115mm |
|
Air Inlet / Gas Hole |
|
Air Hole : 1/4 NPTF ; Middle Hole |
|
Blind Nut |
|
Top Cover Plate Screw(Nut)Tooth : 2X3/8-16UNC |
|
Bottom Cover Plate Screw(Nut)Tooth : 2X3/8-16UNC |
|
Screw Center Distance Of Top Cover Plate:44.5mm |
|
Screw Center Distance Of Bottom Cover Plate:44.5mm |
|
Rubber Bellow |
|
Rubber Bellow MAX Diameter:205mm |
|
The Working Stroke:MAX 140mm to MIN 50mm |
|
Maximum Height : 140mm |
|
Minimum Height : 50mm |
|
Compression Height :90mm |
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Our Service
1. Welcome OEM manufacturing: product, packaging...
2. Sample order is available. If you order a large order after receiving the sample, we will refund the sample fee as a discount.
3. We will reply your inquiry within 24 hours.
4. After sending, we will track the product for you every two days until you receive it. Test them and give me feedback when you receive them. If you have any questions about the problem, please contact us and we will provide you with a solution.
What about our payment & shipping terms?
Package: According to customer requirement,Neutral packing
Shipping:Huangpu Port,Guangzhou,China
Payment Term:T/T,L/C,Western Union,PayPay
Delivery Time:About 2-8 working days after receive your payment.
Product Images
