Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | FS 120-10 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $49.9-59.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Material: | Rubber+Metal | Warranty: | 12 Months |
---|---|---|---|
Type Of Goods: | Industrial Air Bellows | Operation: | Gas-filled |
Gross Weight: | 2.1kg | Packing Size: | 24*24*24(cm) |
Quality: | 100% Tested | Packaging Details: | Carton/Pallet |
High Light: | Single Convoluted Industrial Air Bags,W01-358-7564 Industrial Air Bags,Firestone Air Spring FS120-10 |
Durable Single Convoluted Industrial Air Bags W01-358-7564 Firestone Air Spring FS120-10
Product Description
Item |
Value |
OEM.NO. |
W01-358-7564 |
Type |
Air Spring |
Warranty |
12 Months |
Truck Model |
Heavy Duty Truck |
Color |
Black |
Place of Origin |
Guangzhou,China |
Certification |
ISO/TS16949:2009 |
Material |
Rubber+Steel |
Packing |
Neutral Packing |
MOQ |
1 Pcs |
Quality |
High-Quality |
Position |
Auto/Truck parts/Industrial Machine |
Application |
Auto Suspension Systems |
OEM Number
FIRESTONE |
W01-358-7564 |
FIRESTONE |
W013587564 |
FIRESTONE |
W01 358 7564 |
Firestone |
w01-358-7564 |
Firestone |
w013587564 |
Firestone |
w01 358 7564 |
Firestone Part Number |
WO1-358-7564 |
Firestone Part Number |
WO13587564 |
Firestone Part Number |
WO1 358 7564 |
GOODYEAR |
1B8-550 |
GOODYEAR |
1B8 550 |
Goodyear Part Number |
1b8-550 |
Goodyear Part Number |
1b8 550 |
CONTITECH |
FS120-10 |
CONTITECH |
FS 120-10 |
Contitech Part Number |
fs 120-10 |
Contitech Part Number |
fs120-10 |
The Technical Data of Goodyear 1B8-550
Bellows Type : Single Convoluted
Spring Net Weight : 2.018kg
Spring Gross Weight : 2.1kg
Min Temperature : -40°C
Max Temperature : +70°C
Air Inlet : 1/4NPTF
Series : C
Compressed Height : 90mm
Max Diameter : 230mm
Max Inflation Pressure : 120psi
Max Stroke : 140mm
Cover Plate Diameter : 135mm
Screw Center Distance : 70mm
Screw (Nut) Tooth : 3/8-16UNC
Also Known As: 75229, FS120-10CI1/4NPTCA
Application of air spring in shock absorption equipment
The advantages of high frequency vibration isolation, sound insulation and low natural vibration frequency of the rubber air spring can better realize vibration isolation and ensure the safety and stability of the base of the vibration equipment and the control system. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats. Air springs can reduce noise and prolong the service life of machinery and equipment.
About Us
GUOMAT has always focused on the development of auto parts and industrial shock absorbers, providing you with high-quality products and competitive prices.
If you are interested in our products, please contact us and tell us your needs, we are happy to offer you our best offer. Our products are all with a one-year warranty and accept sample orders. We can also make air springs according to the drawings you provide.
We look forward to building business with you.

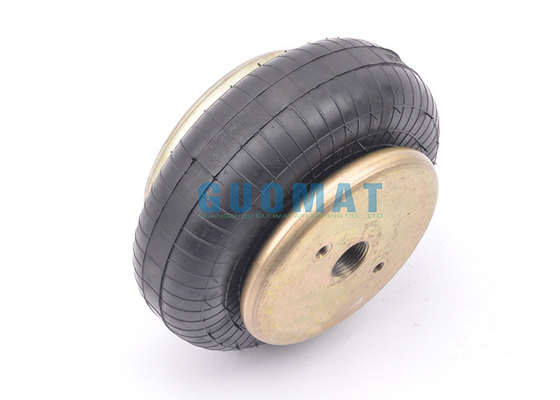

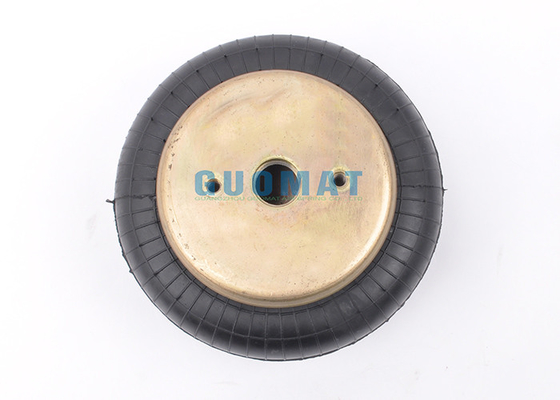

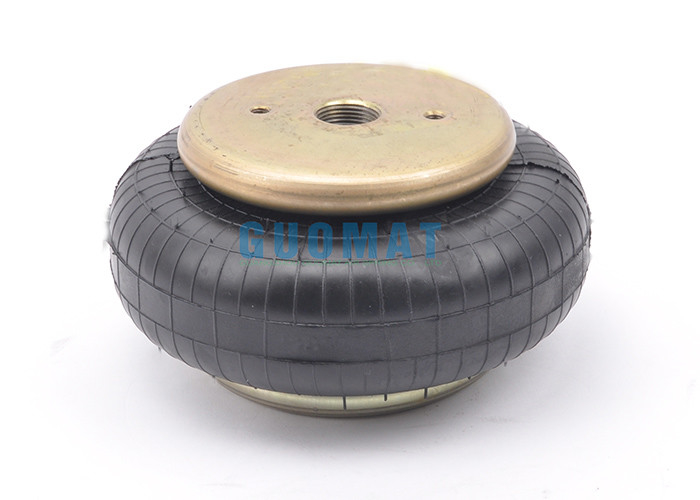

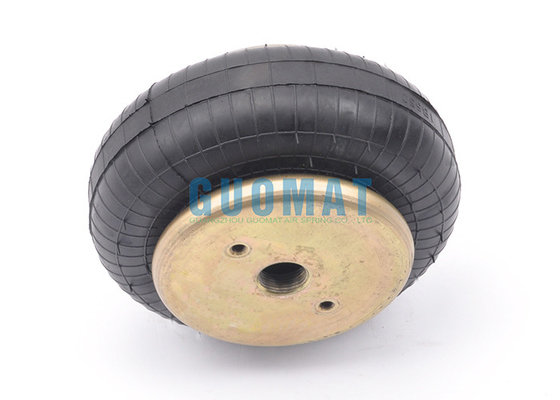

Firestone W01-358-7564 Air Springs Real Pictures
