| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 200-10 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber+Metal | Warranty: | 12 Months |
|---|---|---|---|
| Compatibility: | W01-M58-6374 | Gas Hole: | G3/4 |
| Net Weight: | 2.625kg | Packing Size: | 24*24*24(cm) |
| Norgren: | PM/31091(81/4x1) | Dunlop(FR): | 9''1/4x1 S09101 |
| High Light: | W01-M58-6374 Industrial Air Spring,Contitech FS200-10 Industrial Air Spring |
||
For Industrial Air Spring W01-M58-6374 Trailer Air Lift Suspension Contitech FS200-10
Product Description
Item: Single Vibration Industrial Air Spring
Item Number : FS200-10
OEM Number : W01-M58-6374
Suspension Type : Air Suspension Spring
Warranty : 12 Months
Color : Black
Place of Origin : Guangzhou,China
Spring Material : Natural Rubber
Certification : ISO/TS16949:2009
Packing : Neutral Packing
Quality : High-Quality
Application : Paper Machine Equipment
Top Cover Plate Screw (Nut) Tooth : 2XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25
Air Fitting : G3/4
Top Cover Plate Diameter : 160mm
Bottom Cover Plate Diameter : 160mm
Screw and Air Inlet Distance of Top Cover Plate : 38mm
Screw Center Distance of Top Cover Plate : 89mm
Screw Center Distance of Bottom Cover Plate : 89mm
Rubber Bellows MAX Diameter : 220mm
The Working Stroke : 110mm
Original Equipment Manufacturer
|
Firestone |
W01-M58-6374 |
Firestone |
W01M586374 |
|
Firestone |
W01 M58 6374 |
Contitech |
FS200-10 |
|
Contitech |
FS 200-10 |
Phoenix |
SP 1B 12 |
|
Dunlop(FR) |
9’’1/4x1 |
Dunlop(FR) |
S09101 |
|
Bosch |
822419004 |
Festo |
EB-250-85 |
|
Norgren |
PM/31091 |
Norgren |
8''1/4x1 |
Application of rubber air spring in lifting equipment
Traditional lifting equipment uses air cylinders or hydraulic cylinders to lift objects, which require large installation space, difficult manufacturing processes, heavy weight, easy leakage and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting equipment, the traditional shortcomings of the lifting equipment are overcome, maintenance is not required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
Other Type Air Spring
|
Type |
Firestone |
Dunlop Pneuride |
Dunlop Springride |
Contitech |
Norgren |
|
4 1/2" x 1 |
W01R584050 |
4 1/2" x 1 |
SP2334 |
FS 44-5 DI |
PM/31041 |
|
4 1/2" x 2 |
W01R584051 |
4 1/2" x 2 |
SP2441 |
FD 44-10 DI |
PM/31042 |
|
6" x 1 |
W01R584052 |
6" x 1 |
SP1536 |
FS 76-7 DS |
M/31061 |
|
6" x 2 |
W01R584070 |
6" x 2 |
SP2917 |
FD 76-14 DI |
PM/31062 |
|
6" x 2 |
W01R584053 |
6" x 2 |
SP1482 |
FD 76-14 DS |
M/31062 |
|
6" x 3 |
W01R584095 |
6" x 3 |
SP2861 |
FT 76-20 DS |
M/31063 |
|
8" x 1 |
W01R584054 |
8" x 1 |
SP1537 |
FS 138-8 DS |
M/31081 |
|
8" x 2 |
W01R584055 |
8" x 2 |
SP1490 |
FD 138-18 DS |
M/31082 |
|
8" x 3 |
W01R584056 |
8" x 3 |
SP2863 |
FT 138-26 DS |
M/31083 |
|
10" x 1 |
W01R584057 |
10" x 1 |
SP2523 |
FS 210-10 DS |
M/31101 |
|
10" x 2 |
W01R584058 |
10" x 2 |
SP1538 |
FD 210-22 DS |
M/31102 |
|
10" x 3 |
W01R584059 |
10" x 3 |
SP1539 |
FT 210-32 DS |
M/31103 |

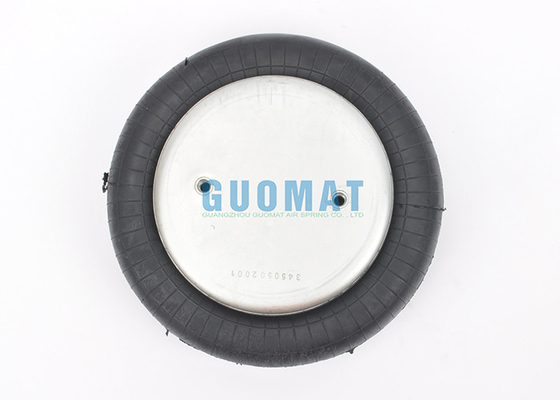

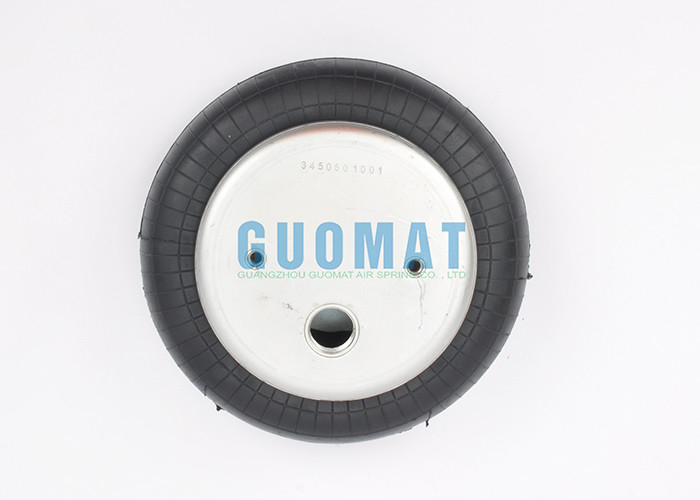

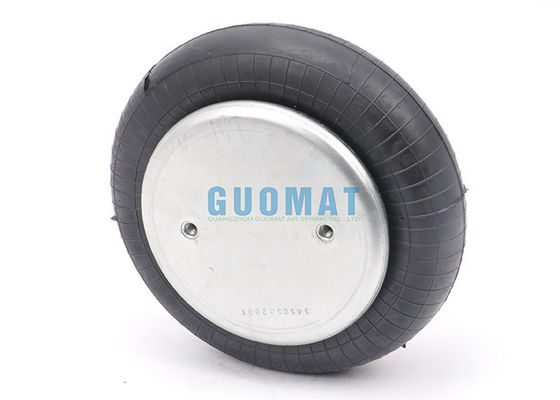

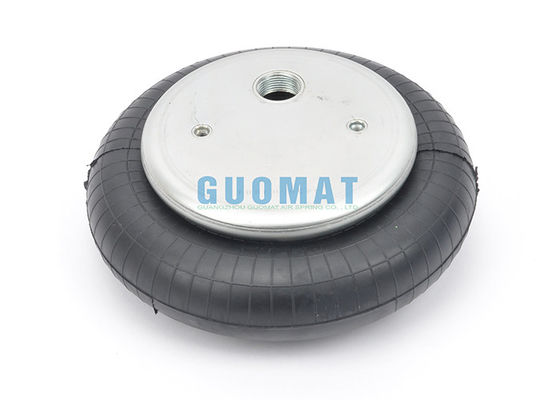

Product Pictures
