| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD200-25 426 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber+Metal | Warranty: | 12 Months |
|---|---|---|---|
| Number Of Convolution: | Two Convoluted | Air Hole: | 1/4NPTF |
| Product Weight: | 4kg | Carton Size: | 24*24*24(cm) |
| Style: | Double Convoluted Style Air Spring | Use Range: | Truck Part,Industrial Machine |
| High Light: | 2B9-250 Goodyear Suspension Air Spring,Suspension Air Spring Double Convoluted,W01-358-6943 Industrial Air Spring |
||
2B9-250 Goodyear Air Lift Suspension W01-358-6943 Firestone 1/4NPTF Double Convoluted Air Spring
Product Description
Product Name: Industrial Double Convoluted Air Spring Bags
Material: Rubber+Steel
Warranty: 1 Year
Failure Testing: ≥3 millions
Working Temperature: -40℃ bis +70℃
Firestone: W01-358-6943
Contitech: FD 200-25 426
Contitech: 161332
Goodyear: 2B9-250
Goodyear: 578923206
Triangle: 6332/4426
Watson&Chalin: AS-0041
Neway/SAF: 90557237
Ridewell: 1003586943C
Tuthill: 6352
2B9-250 Air Spring Specifications and Tecnical Data
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows MAX Diameter:262mm
The Working Stroke:MAX 325 mm to MIN 79 mm
Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:89mm
Screw And Gas Hole Distance of Top Cover Plate:44.5mm
OEM Manufacturer
FIRESTONE W01-358-6943
FIRESTONE W01 358 6943
FIRESTONE W013586943
FIRESTONE WO1-358-6943
FIRESTONE WO13586943
CONTITECH FD 200-25 426
CONTITECH FD200-25 426
CONTITECH FD200-25426
CONTITECH 161 332
GOODYEAR 2B9-250
GOODYEAR 2B 9-250
GOODYEAR 2B9250
GOODYEAR 2B 9 250
GOODYEAR 578 923 206
TRIANGLE 6332
TRIANGLE 4426
Firestone Part Number w01-358-6943
Firestone Part Number w013586943
Firestone Part Number w01 358 6943
Contitech Part Number fd200-25
Contitech Part Number fd200-25 426
Contitech Part Number fd 200-25 426
Goodyear Part Number 2b 9-250
Goodyear Part Number 2b9-250
Product Packaging and Shipping Details
|
Item |
Net Weight |
Gross Weight |
Packaging Length |
Packaging Height |
Packaging Width |
|
Air Springs |
4KG |
4.241KG |
24cm |
24cm |
24cm |
|
Delivery Time: 2-8 working days after receive your payment |
|||||
|
Packing 1. One piece in a poly bag.1piece in a carton. 2. Mark the product numbers and the QTY outside the carton. 3. As your requirement. |
|||||
|
Marking 1. Be possible to mark your logo as request. 2. No specified, will mark our Logo as standard. 3. OEM is accepted. |
|||||
Air Spring
Air spring is a rubber and fabric bladder that maintains air pressure to support the load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more of the load and the spring rate increases. The larger the air spring, the larger the maximum load it can support.
Industrial Air Spring
Industrial air springs are widely used in papermaking machinery, vehicle testing equipment, vibration tables, etc. In these fields, products play an important role in shock absorption, lifting, support, etc., which can effectively improve the work efficiency, safety and service life of equipment.

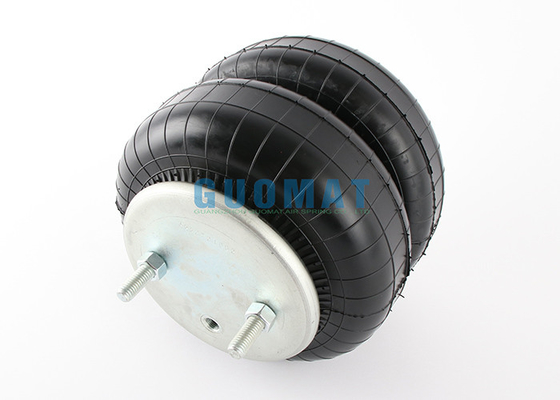

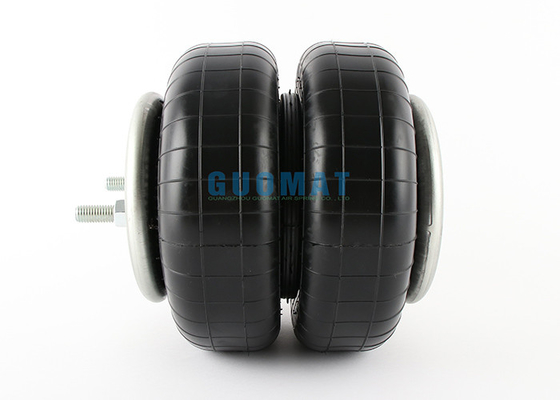

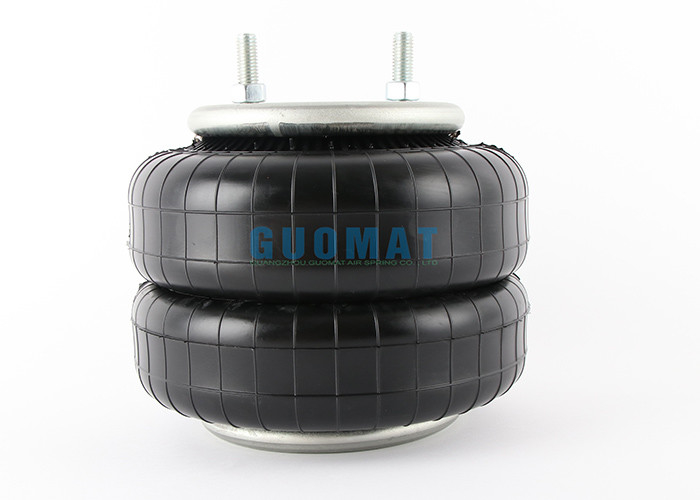

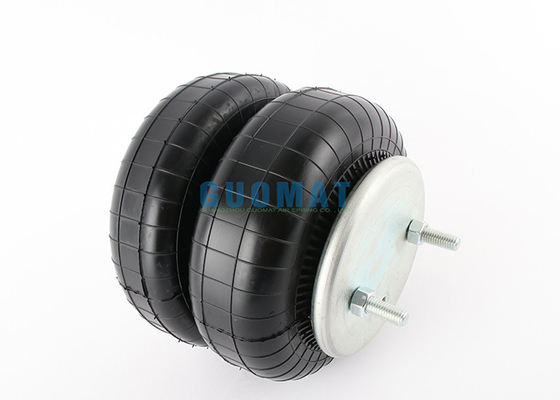

Detailed photo of W01-358-6943 air balloon :
