| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B20F-2P03 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| Sample And OEM: | Available | Operation: | Gas-filled |
| Product Structure: | Triple Convoluted | Fuction: | Reduce Shock |
| Quality: | 100 % Tested | Other Name: | Air Bags,Air Actuator |
| High Light: | Rubber Triple Convoluted Air Spring,3B20F-2P03 Triple Convoluted Air Spring,3B20F-2P03 Industrial Air Spring |
||
Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension
Product Information
|
Product Name: |
Industrial Air Spring |
|
Description: |
Triple Convoluted Air Spring Bags |
|
MOQ: |
10 PCS |
|
Warranty: |
12 Months |
|
Material: |
Rubber+Steel |
|
Package: |
Carton/Cartons |
|
Payment: |
L/C ;T/T ;Western Union;Paypal |
|
Port of shipment |
Huangpu ,Guangzhou |
|
Shippment: |
By sea, By air, by DHL Fedex |
Air Spring 3B20F-2P03 Technical Data
Spring Cover Plate
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Spring Gas Hole
Gas Hole: 1/2 NPT
Spring Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 223 mm
The Working Stroke : MAX 400 mm to MIN 200 mm
Spring Screw Or Nut
Top Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut : 44.5 mm
Advantages of Air Spring Shock Absorbers
1. Excellent shock absorption ability
GUOMAT air spring shock absorbers have the highest vibration isolation capacity of all types of vibration shock absorbers. The natural frequency of the system can be as low as 1Hz. If an additional plenum is installed, the natural frequency of the system can be even lower.
2. Stable shock absorption effect
The unique feature of GUOMAT air spring shock absorbers is that the natural frequency of the system does not change significantly when the load changes. This feature, combined with precise height control, makes it particularly suitable for installing GUOMAT air spring shock absorbers at various mounting points in equipment with unbalanced loads.
GUOMAT 3B-Type Air Spring
|
GUOMAT |
CONTITECH |
FIRESTONE |
GOODYEAR |
|
3B5602 |
FD 300-29 546 |
W01-358-7994 |
3B12-328 |
|
3B5603 |
FD 300-29 547 |
W01-358-7995 |
3B12-329 |
|
3B5604 |
FD 300-29 520 |
W01-358-7996 |
3B12-335 |
|
3B5605 |
FD 300-29 430 |
W01-358-8006 |
3B12-304 |
|
3B5606 |
FD 300-29 431 |
W01-358-8008 |
3B12-300 |
|
3B5607 |
FD 300-29 432 |
W01-358-8010 |
3B12-301 |
|
3B5608 |
FD 300-29 433 |
W01-358-8016 |
|
|
3B5609 |
FD 300-29 469 |
W01-358-8025 |
|
|
3B5610 |
FD 300-29 466 |
W01-358-8027 |
3B12-310 |
|
3B5611 |
FD 300-29 498 |
W01-358-8030 |

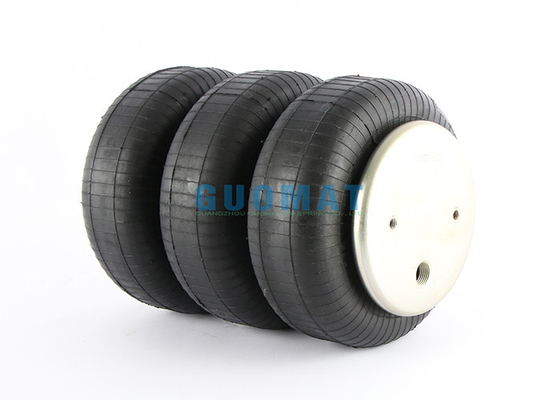

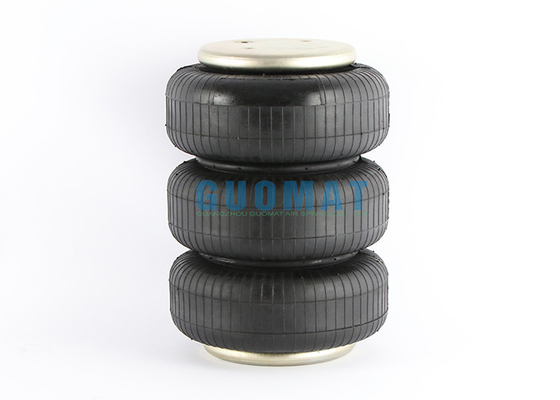

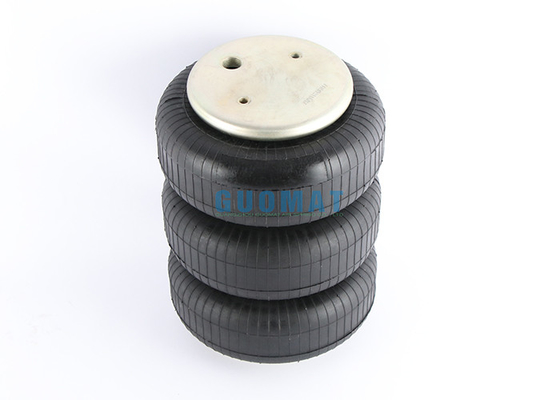

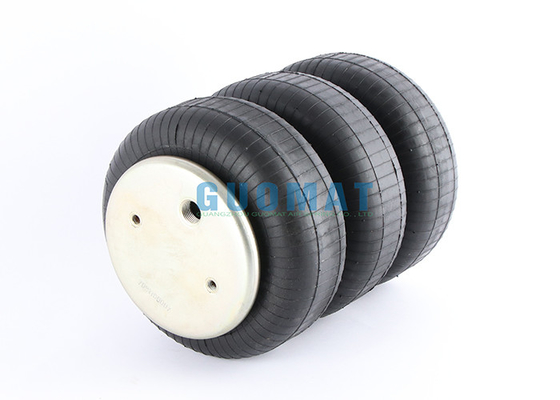

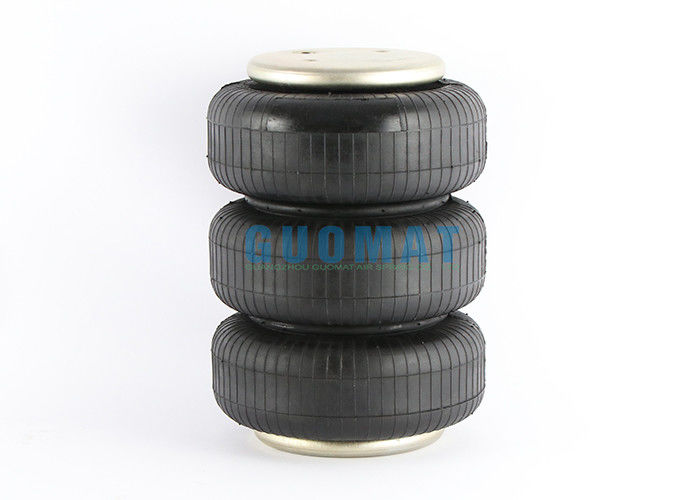

Product Photo
