| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B53014 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Metal+Rubber |
|---|---|---|---|
| Air Inlet: | G1/4 | Color: | Black |
| Package: | Brown Carton Box | Function: | Shock Absorption |
| Suspension Type: | Air Springs | Other Name: | Steel Single Convoluted Air Bag |
| High Light: | W01-358-7103 Single Convoluted Air Spring,1B53014 Single Convoluted Air Spring,Firestone Single Convoluted Air Spring |
||
Firestone W01-358-7103 Single Convoluted Air Spring GUOMAT 1B53014 G1/4 Gas Hole
Product Description
GUOMAT NO. 1B53014
FIRESTONE W01-358-7103
FIRESTONE W01 358 7103
FIRESTONE W013587103
GOODYEAR 1B14-350
Firestone Style 113
FleetPride AS7103
Goodyear Flex No. 578913351
Taurus 6326
Triangle AS-4442
TRP AS71030
Peerless 0550-00015
Manufacturer | OEM NO. | Manufacturer | OEM NO. |
Firestone | w01-358-7103 | Triangle | AS-4442 |
Firestone | w013587103 | TRP | AS71030 |
Goodyear | 1b14-350 | Peerless | 0550-00015 |
Goodyear | 1b14 350 | Taurus | 6326 |
1B53014 1/4NPTF Gas Hole Technical Data
Top Cover Plate Diameter:289mm
Bottom Cover Plate Diameter:289mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows MAX Diameter:406mm
The Working Stroke:MAX 160 mm to MIN 81 mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Screw Center Distance of Top Cover Plate:158.8mm
Screw Center Distance of Bottom Cover Plate:158.8mm
GUOMAT 1B53014P01 Firestone Air Bags
FIRESTONE W01-358-7112
FIRESTONE W01 358 7112
FIRESTONE W013587112
GOODYEAR 1B14-358
Firestone Style 113-1
FleetPride AS7112
Goodyear Flex No. 578913352
Taurus 6326
Triangle AS-4339
TRP AS71120
Dayton 354-7112
Hendrickson S-13044
Loadguard SC2012
Navistar
Fleetrite 554782C1
Ridewell 1003587112C
SAF Holland 90557028
1B53014P01 Technical Data
Top Cover Plate Diameter:289mm
Bottom Cover Plate Diameter:289mm
Gas Hole / Air inlet:3/4-14NPTF
Rubber Bellows MAX Diameter:406mm
The Working Stroke:MAX 160 mm to MIN 81 mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Screw Center Distance of Top Cover Plate:158.8mm
Screw Center Distance of Bottom Cover Plate:158.8mm
Preventive Maintenance Air Springs
We should check the following when repairing the car (never try to repair the air spring when the air spring is charged with air pressure)
1. Check the outside diameter of the air spring. Check for irregular breakage cracks.
2. Check the air pipe. Verify that the air tube does not have any contact with the outside diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the surrounding clearance is sufficient.
4. Check whether there is accumulation of foreign matter on the outer diameter of the piston.
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connecting parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness.

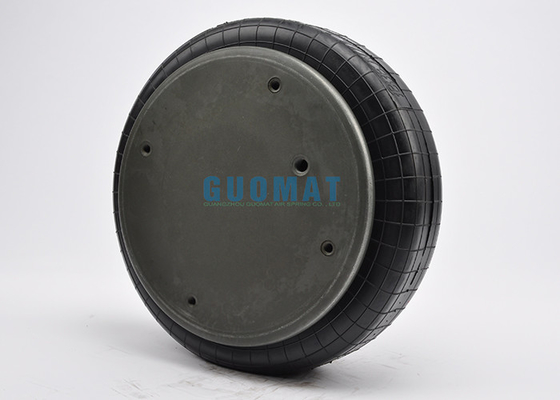

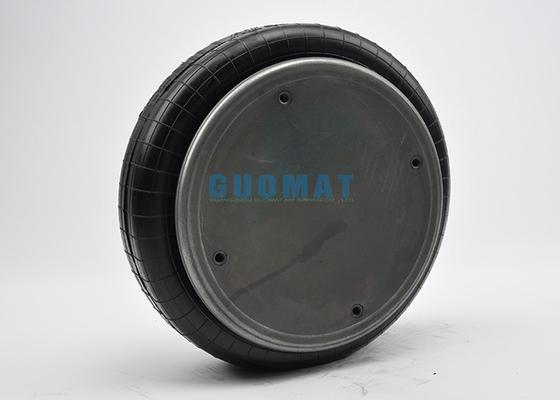

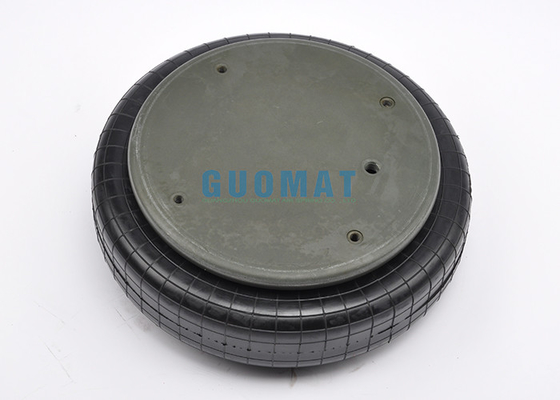

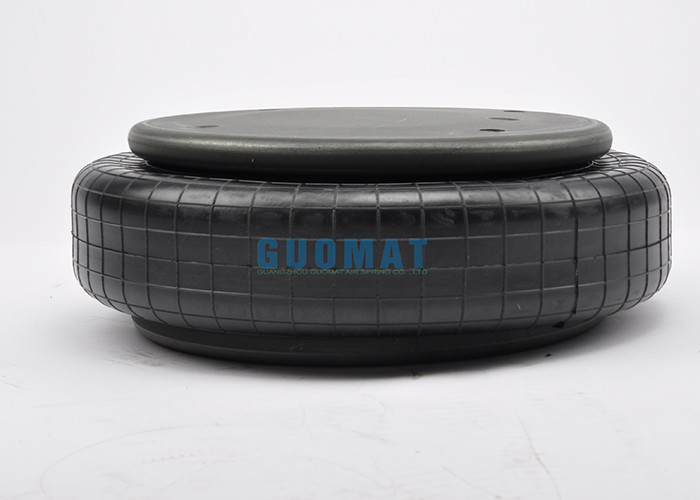

Product Pictures
