| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7325 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| Operation: | Gas-filled | Air Hole: | G3/4 |
| The Stroke: | 205mm | Quality: | 100 % Tested |
| Color: | Black | Air Spring: | Rubber Bellow Air Spring |
| High Light: | FD120-20 509 Industrial Air Spring,Double Convoluted Industrial Air Spring,Goodyear Double Convoluted Air Bags |
||
Contitech FD120-20 509 Industrial Air Spring 2B8-150 Goodyear Double Convoluted Air Bags
Product Information
Product Name:Industrial Air Spring
Description:Double Convoluted Air Spring Bags
MOQ:10 PCS
Warranty:12 Months
Material:Rubber+Steel
Package:Carton/Cartons
Payment:L/C ;T/T ;Western Union;Paypal
Port of Shipment:Huangpu ,Guangzhou
Shippment:By sea, By air, by DHL Fedex
OEM Manufacturer Number
Bellow Number: 2B 20-1
Firestone: W01-358-7325
Firestone: W01 358 7325
Firestone: W013587325
Firestone: W01-358-7326
Firestone: W01 358 7326
Firestone: W013587326
Contitech: FD120-20 509
Contitech: FD 120-20 509
Contitech: FD120-20509
Contitech: FD 120-20 509
Goodyear: 2B8-150
Goodyear: 2B8-153
Goodyear: 2B8-550
Goodyear: 2B8 150
Goodyear: 2B8 153
Goodyear: 2B8 550
Goodyear: 2B 8-150
Goodyear: 2B 8-153
Goodyear: 2B 8-550
Goodyear Flexmember: 579923530
Goodyear Flexmember: 579-92-3-530
Triange: 6392
Triange: 4509
E.R.F: 1398567
American Carrier: 800 3006
Goodyear 2B8-150 Air Bellow Bags Technical Data
|
Cover Plate |
Top Cover Plate Diameter:141mm |
|
Bottom Cover Plate Diameter:141mm |
|
|
Air Inlet |
G3/4 |
|
Blind Nut |
Screw Center Distance Of Top Cover Plate:70mm |
|
Screw And Gas Hole Distance Of Top Cover Plate:73mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25 |
|
|
Bottom Cover Plate Screw (Nut) Tooth:XM8X1.25 |
|
|
Rubber Bellow |
Rubber Bellow MAX Diameter:193mm |
|
The Working Stroke:205mm |
|
GUOMAT 2B Type Air Spring |
|||
|
GUOMAT |
CONTITECH |
FIRESTONE |
GOODYEAR |
|
2B5241 |
FD 200-19 724 |
W01-358-6884 |
|
|
2B5242 |
FD 200-19 539 |
W01-358-6890 |
|
|
2B5243 |
FD 200-19 505 |
W01-358-6897 |
2B9-229 |
|
2B5244 |
FD 200-19 319 |
W01-358-6900 |
|
|
2B5245 |
FD 200-19 310 |
W01-358-6902 |
2B9-201 |
|
2B5246 |
FD 200-19 315 |
W01-358-6905 |
2B9-206 |
|
2B5247 |
FD 200-19 362 |
W01-358-6908 |
2B9-210 |
|
2B5248 |
FD 200-19 320 |
W01-358-6910 |
2B9-200 |
|
2B5249 |
FD 200-19 504 |
W01-358-6926 |
|
|
2B5250 |
FD 200-19 452 |
W01-358-6932 |
2B9-246 |
|
2B5251 |
FD 200-19 499 |
W01-358-6935 |
|
|
2B5252 |
FD 200-19 450 |
W01-358-6940 |
2B9-230 |
|
2B5253 |
FD 200-19 448 |
W01-358-6941 |
2B9-265 |
|
2B5254 |
FD 200-19 506 |
W01-358-6949 |
|
|
2B5255 |
FD 200-19 510 |
W01-358-7788 |
2B9-245 |
|
2B5256 |
FD 200-22 524 |
W01-358-7795 |
2B10-226 |
|
2B5257 |
|
W01-358-7892 |
|
|
2B5261 |
FD 200-22 529 |
W01-358-6883 |
|
|
2B5262 |
FD 200-22 706 |
W01-358-6886 |
|
|
2B5263 |
|
W01-358-7897 |
|
|
2B5286 |
|
|
|
|
2B5271 |
FD 200-25 453 |
W01-358-6927 |
2B9-218 |

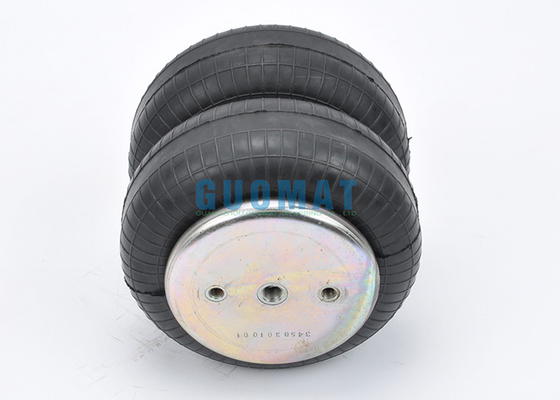

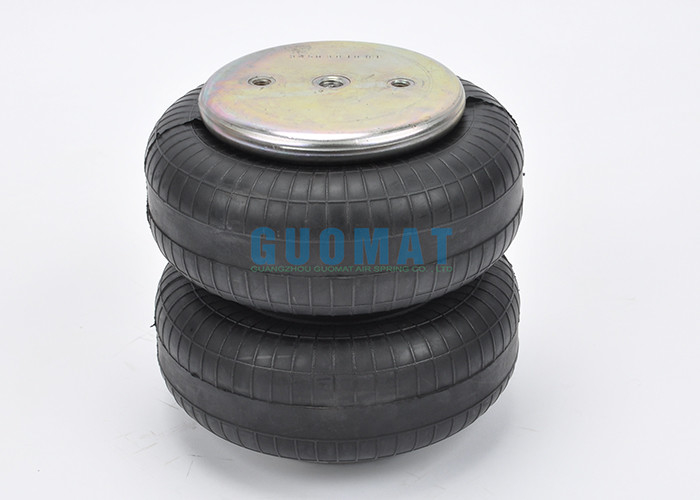

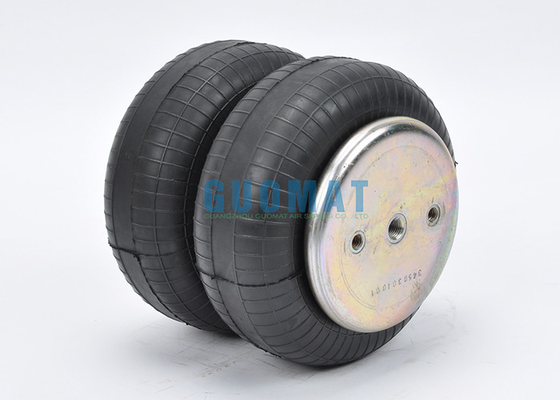

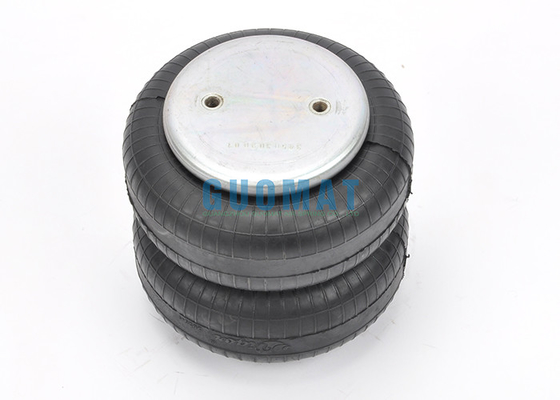

Product Photo
