| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 578 238 077 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber | Warranty: | 12 Months |
|---|---|---|---|
| Quality: | 100 % Tested | Color: | Black |
| Number Of Convolution: | Tow Convolution | Application: | Car Axle System |
| Package: | Carton | Function: | Lift And Reduce Shock |
| Highlight: | Suspension Convoluted Air Spring,578238077 Convoluted Air Spring |
||
Unique Rubber Air Bellow 578238077 Automobile Axle Air Suspension Convoluted Air Spring
Product Description
|
Item Number |
Double Convoluted Rubber Air Bags |
|
Brand |
GUOMAT/Neutral |
|
Spring Material |
Rubber |
|
Warranty |
12 Months |
|
MOQ |
10 Pieces |
|
Delivery Time |
About 2-8 Working Days |
|
Packing |
Brown Carton Packing or According to Customer's Request |
|
Shipping |
1.By Air 2.By Sea 3.By Express E.g:FedEx,DHL,UPS,EMS...... |
|
Our Main Products |
|
Cross Reference Number
Air Spring 578 238 077
Air Bellow 578238077
Bellow Number 578238077,578 238 077
How to Install Axle Air Springs
Step 1 :Have your new air spring ready
Step 2 :Deflate your air spring
• First stabilize your vehicle.
• Deflate the air spring and keep the air system and ignition fully off.
Step 3 :Loosen Pneumatic Valves
• We make sure the compressor remains off when the valve is released.
• Disconnect air connections and make sure valves and air lines are clean.
Step 4 :Loosen all screws
Step 5 :Preparations for installment of your new air spring
• Remove the damaged air spring.
• Clean the mating surfaces
• Keep air ducts closed to prevent dust from entering or dust.
Step 6 :Inspect all other air springs on your vehicle
• Inspect rubber parts for wear, embrittlement and cracks.
• Check metal parts for corrosion.
• Check plastic parts for capillary cracks.
• Check lubricants such as oil, diesel, brake fluid or coolant for possible contamination.
• Remove any foreign objects such as stones or dirt.
• Remove all fluids and check for sources of contamination.
Step 7 :Put your new air spring in place
Install new air springs between chassis and axle
• Screw the top plate onto the chassis first.
• Keep the air intake open.
Step 8 :Tighten your new air spring
Step 9 :Inflate your new air spring.
|
Model |
Gas Hole |
Screw Tooth |
Rubber Bellow(mm) |
Cover Plate(mm) |
|
FS 76-7 DS CR |
G1/2 |
M10 |
175 |
153.5 |
|
FS 412-10 DS |
G1/2 |
M10 |
330 |
260 |
|
FS 816-15 DS |
G1/2 |
M10 |
420 |
310 |
|
FD 76-14 DS CR |
G1/2 |
M10 |
175 |
153.5 |
|
FD 209-21 DS |
G1/2 |
M10 |
255 |
197 |
|
FD 210-22 DS |
G1/2 |
M10 |
270 |
210 |
|
FD 816-30 DS |
G1/2 |
M10 |
435 |
310 |
|
FT 76-20 DS CR |
G1/2 |
M10 |
178 |
153.5 |
|
FT 138-26 DS |
G1/2 |
M10 |
230 |
184 |
|
FT 210-32 DS |
G1/2 |
M10 |
270 |
210 |

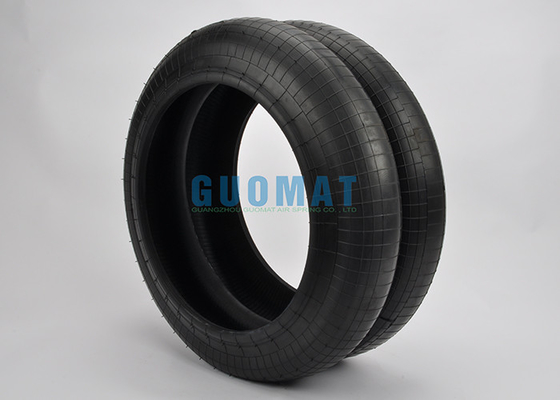

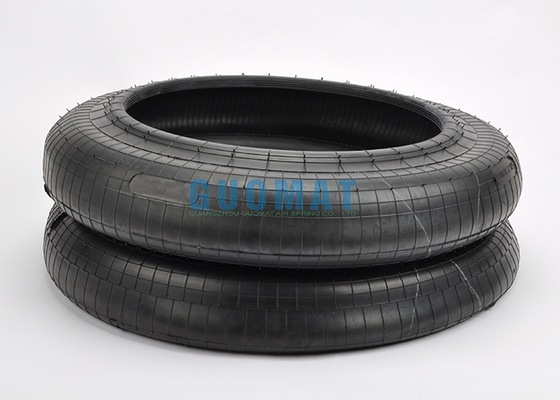

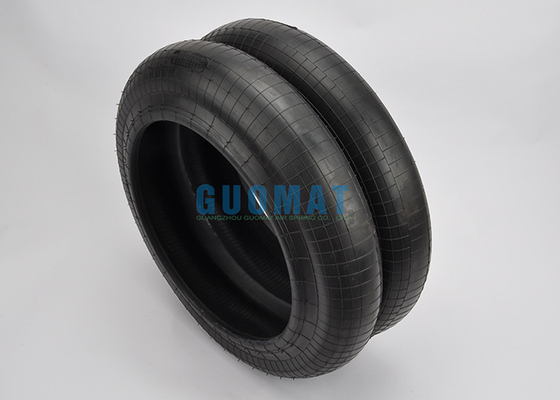

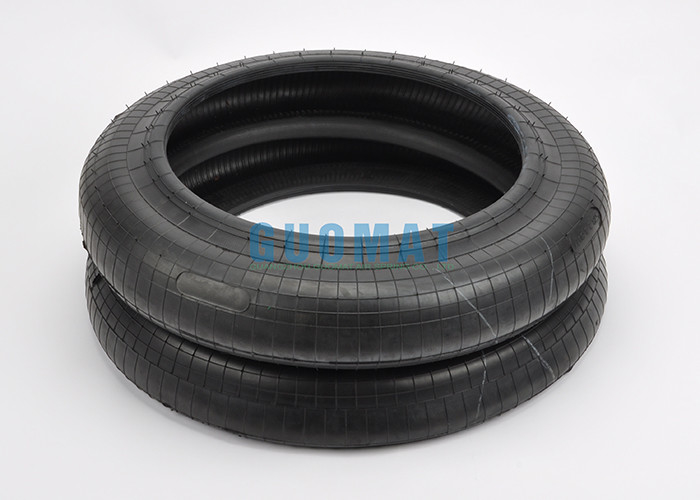

The Pictures of Air Spring
