| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8-850 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-129.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year |
|---|---|---|---|
| Color: | Black | Brand: | GUOMAT Or Neutral |
| Packaging: | Carton/Cartons | Goodyear: | 1B8-850 |
| Application: | For Printing And Dyeing Machinery | Gas Hole: | 1/4 NPT Or 3/4 |
| High Light: | Goodyear Industrial Air Spring,Industrial Air Spring 1B8-850,Air Cushion Rubber Airbag |
||
Goodyear Industrial Air Spring 1B8-850 Vibration Platform Isolation Air-Cushion Rubber Airbag
Product Description
|
Item |
Goodyear Air Bellow |
OEM NO. |
1B8-850 |
|
Brand |
Goodyear |
MOQ |
10 Pieces |
|
Warranty |
12 Months |
Material |
Steel and Rubber |
Can Replace the Following Air Bags
ContiTech(Continental):FS 120-10
ContiTech(Continental):FS 120-10 CI
ContiTech(Continental):FS 120-10 CI G1/4
ContiTech(Continental):FS 120-10 G1/4 CI
Contitech Bellow :FS 120-10
Contitech Bellow :FS120-10
Contitech Bellow :FS120-10
Firestone :W01-M58-6166
Firestone :W01M586166
Firestone :W01 M58 6166
Firestone Type :116
Goodyear :1B8-850
Goodyear :1B8 850
Goodyear :1B8850
Goodyear :1B 8850
Goodyear :1B 8-850
Goodyear Bellow :579-913-530
Goodyear Bellow :579 913 530
Goodyear Bellow :579913530
Dunlop(FR) :8''x1
Dunlop(FR) :S08100
Weforma :WBE 300-E2
Weforma :WBE300-E2
Weforma :WBE300E2
Goodyear Air Bellow Technical Data
Top Cover Plate Diameter: 127.8mm
Screw Center Distance of Top Cover Plate: 70mm
Bottom Cover Plate Diameter: 127.8mm
Screw Center Distance of Bottom Cover Plate: 70mm
Rubber Bellow MAX Diameter: 221mm (6.9 Bar)
Design Height Range: 95mm-121mm
MAX Extended Height: 135mm
Metal to Metal Height: 51mm
Torques
M8: MAX.25Nm
G1/4: MAX.25Nm
| Bill of Materials | |
|
Flexible Member |
579-91-3-530 |
|
Lower Retainer |
ASC-92-6-083 |
|
Upper Retainer |
ASC-92-8-282 |
|
Steel Clamp Ring |
ASB-08-4-023 |
Notes:
1.Centerline of mounting hole of upper and lower retainers aligned within 2°.
2.Do not Inflate to more than 6.9 bar without Goodyear approcal.
3.Fastener torque not to exceed 27 Nm.
4.Assembly to be supported.Top and bottom.By minimum 140mm diameter plate.
External limits must be provided in mounting structure to prevent spring from exceeding min and max heights.
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Contitech Goodyear Firestone Phoenix
928N 8042 W01-095-0228 2E23A
943N 9001 W01-095-0189
973N 8012 W01-095-0198 1F21A
945N 9014 W01-095-0063 1E21C
975N W01-095-0437 1E10
W01-095-0294
W01-358-9391
4913NP02 1R14-753 W01-095-0500 1D28H-16
1R14-869
4159NP06 W01-M58-0736
810NTB 1R14-713 W01-M58-0749 1DK28A4
4022NP02 1R11-709 W01-M58-0756
4022NP02 1R11-709 W01-M58-0756
836MB W01-M58-0775 1DF25-4
836MB 1R12-700 W01-M58-0776 1DF25-1
836M2K1 1R12-711 W01-M58-8721 1DF25-13
887M 1R11-796 W01-M58-0780
889MK2 W01-M58-0781
W01-M58-0918
4004NP02 W01-M58-0919
4004NP02 W01-M58-0919

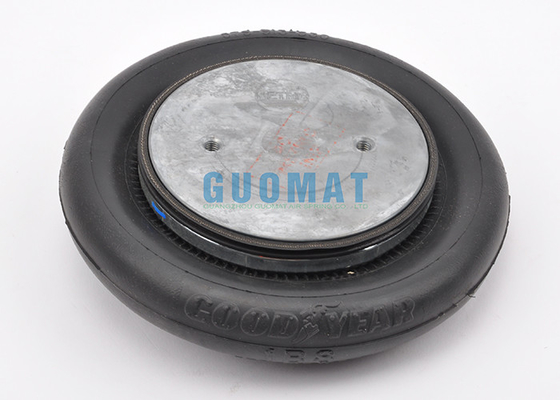

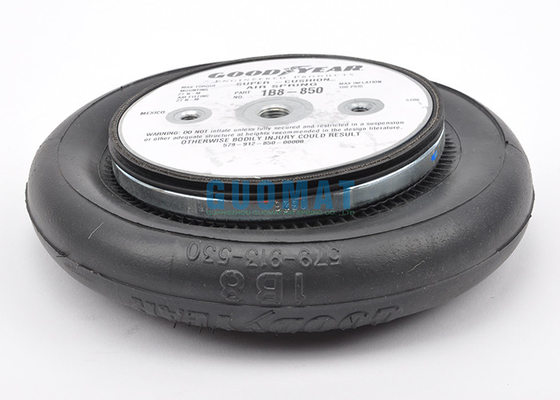

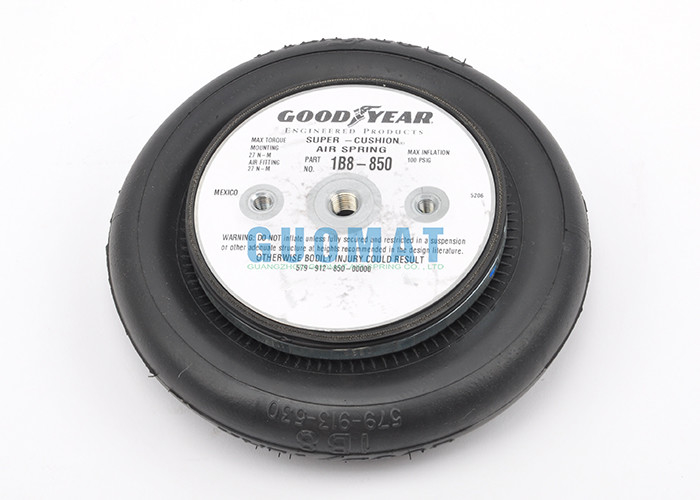

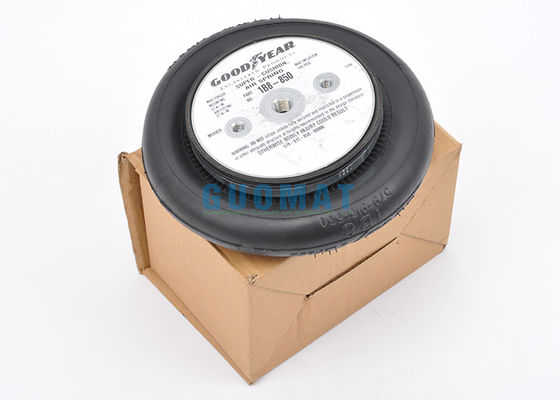

The Pictures of Goodyear Air Spring Bags
