| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-160-2 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Punch Air Spring | Material: | Natural Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Quality: | 100 % Tested |
| OEM No.: | S-160-2R | Application: | Punching Machine |
| Package: | Carton | Spring Type: | Two Convoluted Type |
| High Light: | Rubber Bellow Double Convoluted Air Spring,Double Convoluted Air Spring S-160-2R,Yokohama Air Bags |
||
F-160-2 Rubber Bellow Double Convoluted Air Spring S-160-2R Punching Press Yokohama Air Bags
Product Description
Product Name: Punching Press Yokohama Air Spring
OEM Number: S-160-2R/s-160-2r
GUOMAT No.: F-160-2
Material: High Quality Natural Rubber
Warranty: 1 Year Warranty
MOQ: 10 pcs
Color: Black
Suspension Type: Rubber Air Spring
Air Bellow: Air Bags
Payment: L/C,T/T,Western Union or PayPal
Delivery Time: 3-8 Working Days
The Role of the Punch Air Bags
Airbags, also known as air springs, are often used when pressing large parts or deep drawn parts on large punches. In addition to being used to prevent wrinkling during stretching, they can also be used as top materials or for partial forming of the working bottom. The punch is equipped with After the air spring is used, the scope of use of the punch press can be expanded, and the pressure of the compressed air in the air cushion system can be adjusted to obtain the pressing force required for various punching work. The punch air spring can play a role in environmental protection, muteness, buffering and shockproofing.
GUOMAT F-160-2 Technical Data
Item | Data | Item | Data |
Design Height | 98mm | Max Height | 148mm |
Min Height | 111mm | Common Maximum Travel | ±35mm |
Compression Max Outside Diameter | 220mm | Effective Area | 200cm2 |
Volume | 2.1L | Load | 9.8(KN) |
Dynamic Spring Constant | n/mm | Natural Vibration Frequency | 2.5Hz |
Maximum Internal Pressure | 0.88Mpa | Internal Pressure Failure | 2.9-3.9Mpa |
Safety Instructions |
Air Spring Application Notes |
1. Do not use an air spring if the recommended safe extension height is exceeded. |
2. In order to prolong the service life of the air spring, please do not use it at a height lower than the minimum compression height. |
3. Do not use the air spring under the pressure of more than 0.7Mpa. |
4. Do not use if the air spring is deformed. |
Air Spring Storage and Use Instructions |
1. Take it lightly. During transportation, loading and unloading, extra care should be taken to avoid rough handling. |
2. The air spring should be stored in a dry and ventilated warehouse to avoid direct sunlight. |
3. The installation location should have enough storage space. Avoid contact with oil, acid and alkali substances and any sharp objects. |
4. The air spring should avoid contact with sharp objects, and the mating parts should be smooth without edges and corners. |

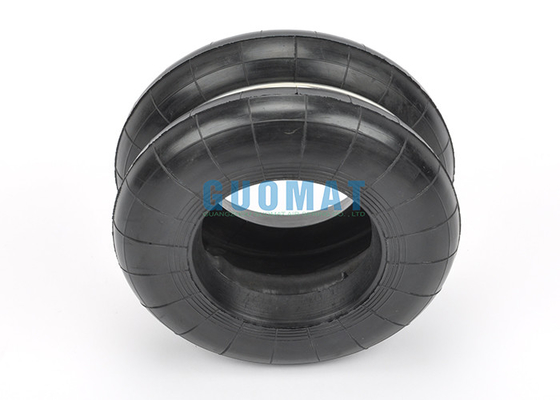

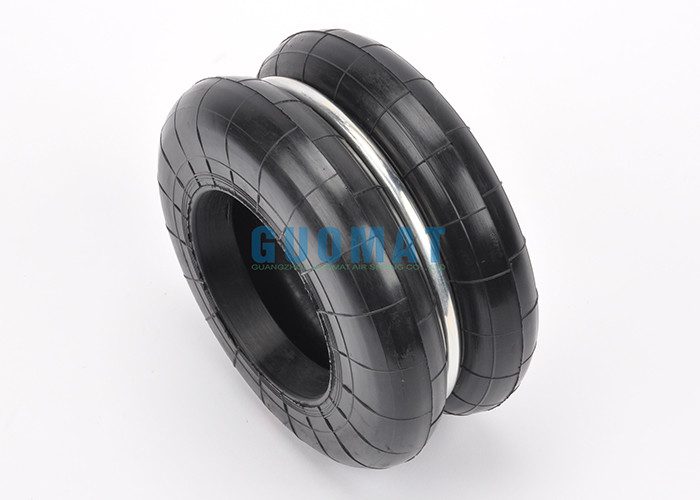

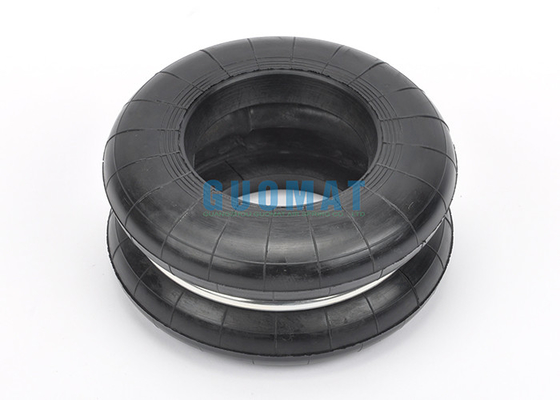

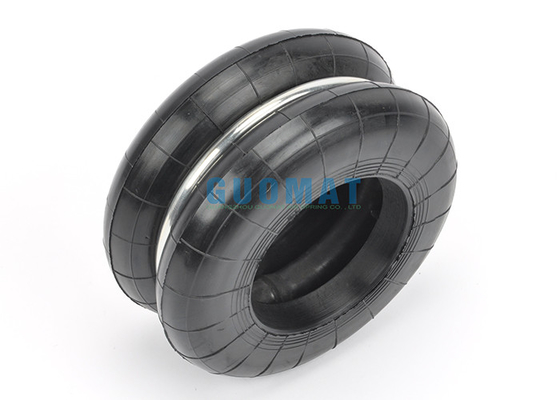

Yokohama Air Spring Detailed Pictures
