| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7400 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Industrial Air Spring | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Warranty: | 1 Year Warranty | MOQ: | 10 Pieces |
| Spring Type: | Air Filled | Firestone: | W01-358-7400/22 |
| Goodyear: | 2B12-309/316 | Scania: | 670199 |
| High Light: | FD330-22 313 Industrial Air Spring,Double Convoluted Industrial Air Spring |
||

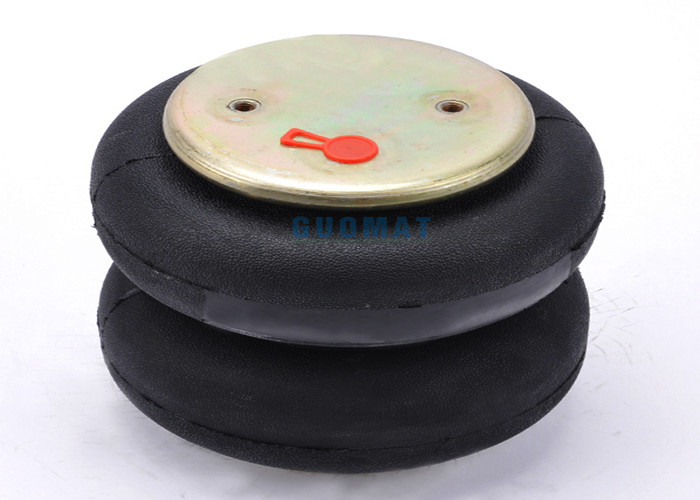

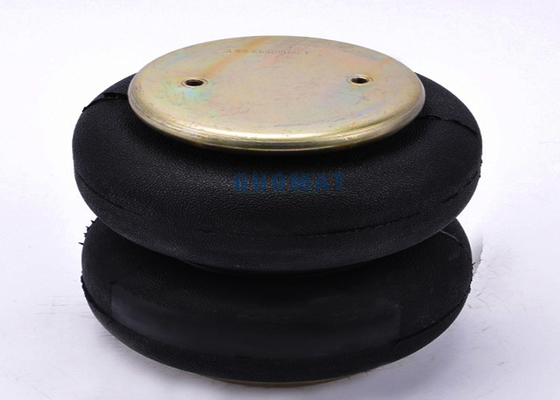

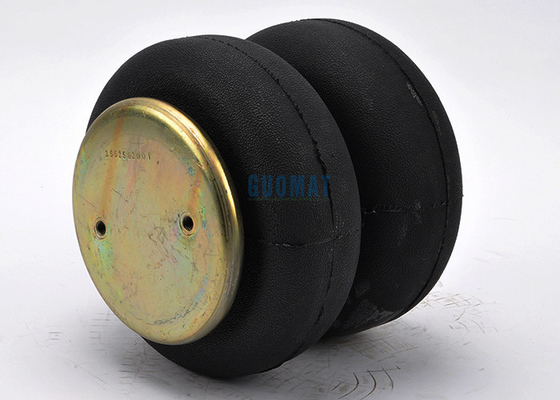

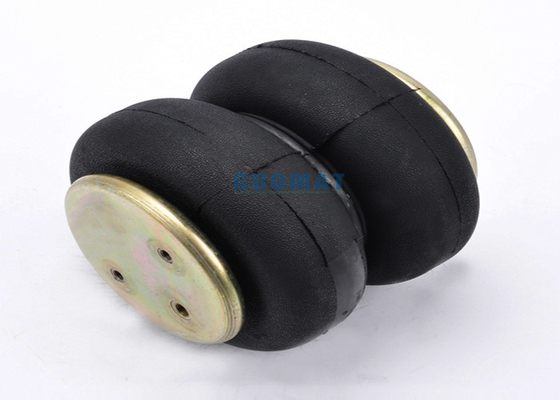

High Quality FD330-22 313 Contitech Bellow Type Air Spring Double Convoluted Air Help Bag
Product Description
| Cross References | |||
| Firestone | W01-358-7400/22 | Contitech | FD 330-22 313 |
| Goodyear | 2B12-309 | Goodyear | 2B12-316 |
| Goodyear | 578923309 | Triangle | 6316 |
| Triangle | 4313 | ||
| Original Parts | |||
|
Fab Tek |
04-0080 |
Freightliner |
16-10769-000 |
|
GMC |
693230 |
Granning |
2726 |
|
Hendrickson |
S1013 |
Neway |
90557016 |
|
R&S Truck & Body |
1027519 |
Watson&Chalin |
AS0003 |
|
Ridewell |
1003587400C |
Dayton |
3547400 |
|
VOL-VO |
3130488 |
Scania |
670199 |
Cross references are not a guarantee that a part will fit a specific application. Please check all available information before relying on a cross reference to make a purchase.
What is an Air Spring?
An air spring is a carefully designed flexible part of rubber and cord that contains a volume of compressed air. The air spring itself does not provide force and support load, it is completed by the compressed air column. The air spring is also equipped with a metal end seal plate, and the standard double wire mesh layer is composed of four layers.
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Continental Contitech FD 330-22 313 Air Spring Technical Data
|
Nut/Blind Nut |
|
|
Top Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw and Air Inlet Distance of Top Cover Plate |
73mm |
|
Screw Center Distance of Bottom Cover Plate |
157mm |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Bottom Cover Plate |
157mm |
|
Gas Hole / Air inlet / Air Fitting |
|
|
Gas Hole / Air inlet |
1/4NPTF |
|
Cover Plate |
|
|
Top Cover Plate Diameter |
231mm |
|
Bottom Cover Plate Diameter |
231mm |
|
Rubber Bellow |
|
|
Rubber Bellows MAX Diameter |
325mm |
|
The Working Stroke |
MAX 305mm to MIN 104 mm |
|
Maximum Height |
305mm |
|
Minimum Height |
104mm |
|
Compression Height |
201mm |
The Drawing Picture of Firestone Air Bellows
The Real Pictures of Goodyear Industrial Air Suspension Bags
