Guomat 1B8X4 Single Convoluted Air Suspension Air Spring For Industrial Machine Reduce Shock
Product Description
FIRESTONE Number: W01-358-7564
FIRESTONE Number: W01 358 7564
FIRESTONE Number: W013587564
FIRESTONE Part Number: WO1-358-7564
FIRESTONE Part Number: WO1 358 7564
FIRESTONE Part Number: WO13587564
GOODYEAR Part Number: 1B8-550
GOODYEAR Part Number: 1B8 550
GOODYEAR Part Number: 1B 8-550
CONTITECH Part Number: FS120-10
CONTITECH Part Number: FS 120-10
CONTITECH Part Number: FS120 10
Original Equipment Manufacturer Number
|
Firestone
|
w01-358-7564
|
Firestone
|
w01 358 7564
|
|
Firestone
|
w013587564
|
Goodyear
|
1b8-550
|
|
Goodyear
|
1b8 550
|
Goodyear
|
1b 8-550
|
|
Contitech
|
fs120-10
|
Contitech
|
fs 120-10
|
|
Contitech
|
fs 12010
|
|
|
Technical Data
|
Working Temperature
|
-40°C bis +70°C
|
|
Failure Testing
|
≥3 millions
|
|
Top Cover Plate Diameter
|
135mm
|
|
Bottom Cover Plate Diameter
|
135mm
|
|
Gas Hole / Air inlet
|
1/4NPTF
|
|
Rubber Bellows MAX Diameter
|
230mm
|
|
The Working Stroke
|
MAX 140 mm to MIN 50 mm
|
|
Top Cover Plate Screw (Nut) Tooth
|
2X3/8-16UNC
|
|
Bottom Cover Plate Screw (Nut) Tooth
|
2X3/8-16UNC
|
|
Screw Center Distance of Top Cover Plate
|
70mm
|
|
Screw Center Distance of Bottom Cover Plate
|
70mm
|
Air Spring Industry-Specific Applications
►Lift Tables
Automotive lift
Pallet lift station
Parts cage lift
►Robotics
Pick & Place
Offset load stabilizer
End of arm tooling
►Packaging
Conveyor Systems
Conveyor stop
Transfer station
►Forestry & Timber
Debarking Machine
Apply force at angle
Adjusts for vibrations
►Heavy Industry
Cement Brick Making
Dirty environment
Double-acting
No clevis needed
►Pulp & Paper
Web Positioner
Chemical resistant
High temperature
Packaging Details
|
Item
|
Item No.
|
N.W(kg)
|
G.W(kg)
|
Packing Length(cm)
|
Packing Width(cm)
|
Packing Height(cm)
|
Qty
|
|
Air Spring Bag
|
1B8X4
|
2.018
|
6.434
|
24
|
24
|
24
|
3
|

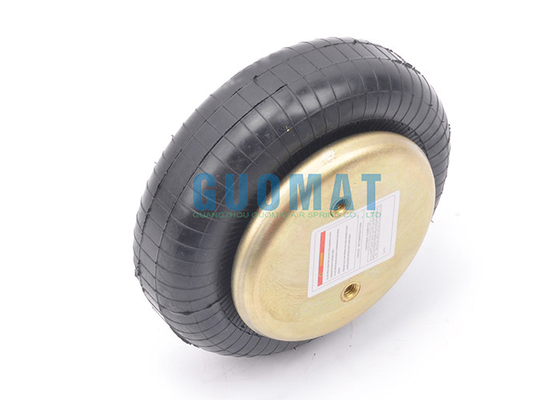

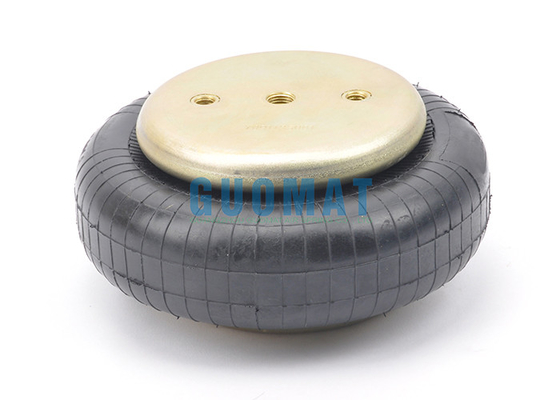

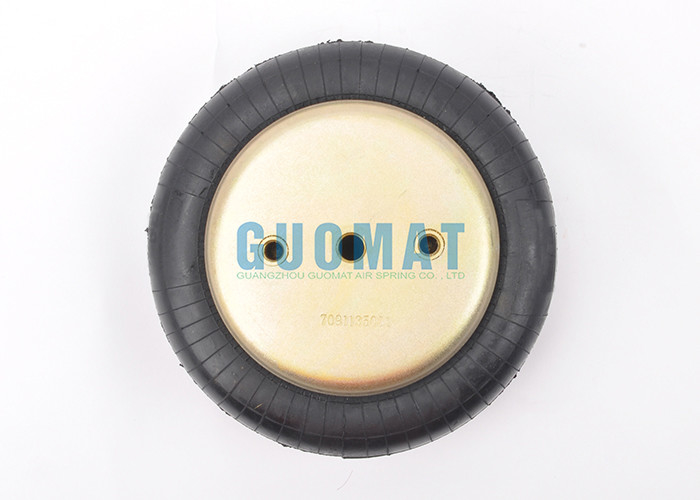

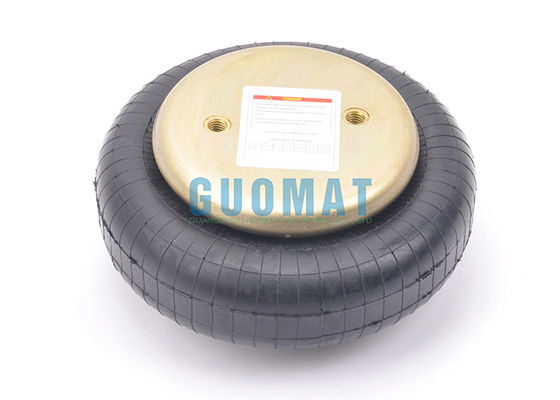

The Real Pictures of Firestone Rubber Air Bags
