| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD330-22 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Steel | Warranty: | 12 Months |
|---|---|---|---|
| Sample And OEM: | Available | Operation: | Gas-filled |
| OEM Number: | FD 330-22 CI | Weight: | 4.8Kg |
| Gas Hole: | G1/4 | Air Suspension: | Contitech Air Spring |
| High Light: | Contitech FD 330-22 Rubber Air Spring,Double Convolution Rubber Air Spring |
||

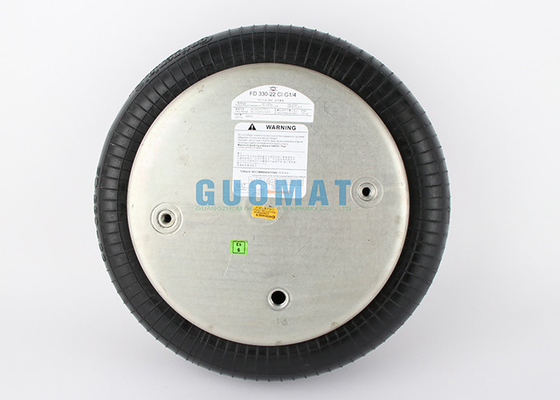

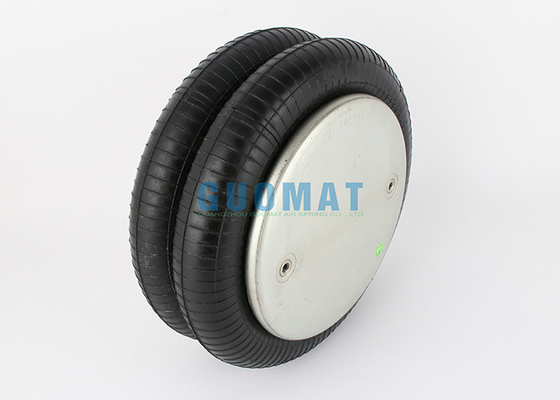

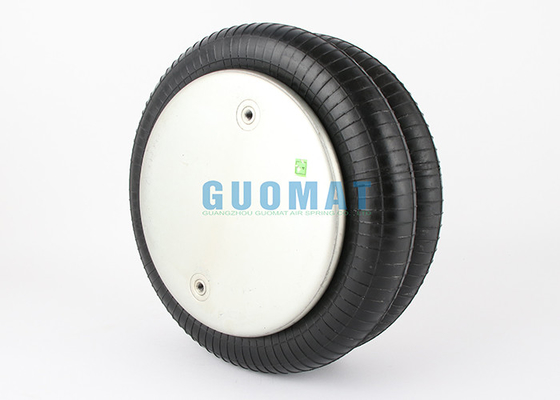

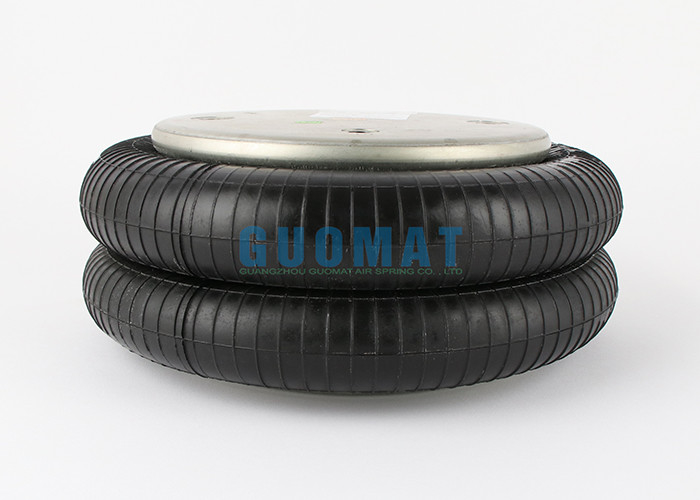

Contitech FD 330-22 CI Double Convolution Air Actuator G1/4 Air Fitting Rubber Air Spring
Detailed Description For Contitech FD330-22
Manufacturer: Contitech
Part Number: FD 330-22 CI G1/4
Warranty:12 Months
Material:Rubber and Steel
Color:Black
Payment:LC/TT/Western Union/PayPal
Package:Strong Brown Carton
Delivery Time:About 2-8 working days after receive your payment
Shipping method:By sea,by air,by express(DHL/UPS/EMS/Fedex)
Technical Data
|
1 |
Top Screw (Nut) Tooth |
2xM8-15mm |
|
2 |
Top Cover Plate Diameter |
228mm |
|
3 |
Bottom Cover Plate Diameter |
228 mm |
|
4 |
Screw Center Distance |
157.5 mm |
|
5 |
Gas Hole |
G1/4 |
|
6 |
Bottom Screw (Nut) Tooth |
2xM8-15mm |
|
7 |
Rubber Bellows MAX Diameter |
325 mm |
|
8 |
The Stroke |
75-305 mm |
|
9 |
Overall Weight with Clamped Plates |
4.8 kg |
|
10 |
Required Mounting Width |
340mm |
Vibration isolation – dynamic characteristic values
Design height H: recommended 240mm, minimum 220mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force (Load) ［KN］ | 10 | 13.3 | 16.7 | 20.6 | 24.1 | 27.6 | 12 |
| Spring Rate ［N/cm］ | 156 | 190 | 221 | 252 | 283 | 314 | |
| Natural Frequency ［Hz］ | 2.0 | 1.9 | 1.8 | 1.8 | 1.7 | 1.7 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 265 | 7.97 | 10.8 | 13.5 | 16.9 | 19.7 | 22.7 | 13 |
| 220 | 11.3 | 15.2 | 18.9 | 23.1 | 26.9 | 30.8 | 11 | |
| 180 | 13.6 | 18.2 | 22.7 | 27.5 | 32 | 36.5 | 8.8 | |
| 140 | 15.4 | 20.5 | 25.5 | 31.1 | 36.3 | 41.3 | 6.8 | |
| 100 | 16.8 | 22.1 | 27.8 | 34.1 | 39.8 | 45 | 4.8 | |
Service Instructions
M8:max.25Nm
G1/4:max.25Nm
Common Types of Double Convoluted Air Springs
FD 330-22 363 ; FD330-22 363
Every Standard Air Spring Consists of 4 Layers
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
