| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS200-10 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Steel | Warranty: | 12 Months |
|---|---|---|---|
| Gas Hole: | G1/4 | Air Suspension: | Contitech Air Spring |
| Number Of Convolution: | 1 | Color: | Black |
| Contitech: | FS200-10 | MOQ: | 10 Pieces |
| High Light: | FS 200-10 CI Single Convoluted Air Spring,Industrial Single Convoluted Air Spring |
||

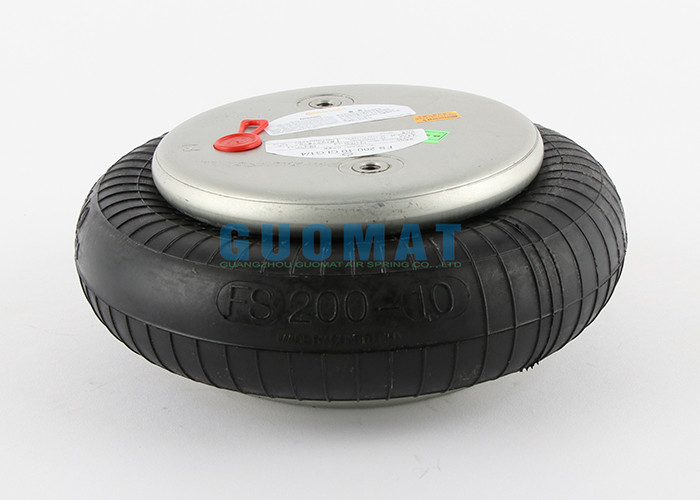

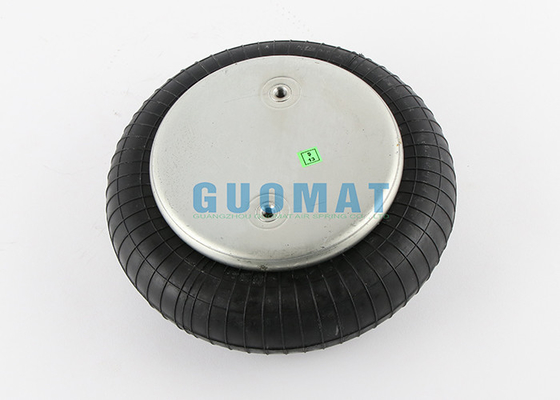

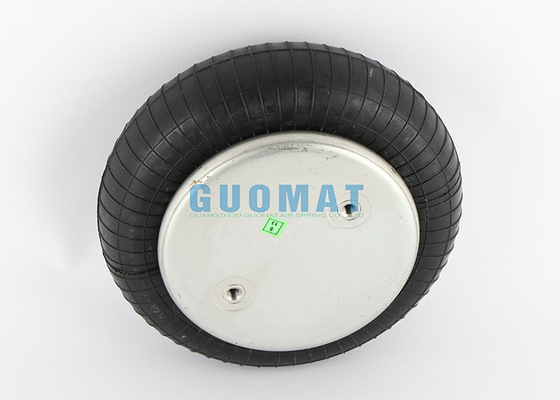

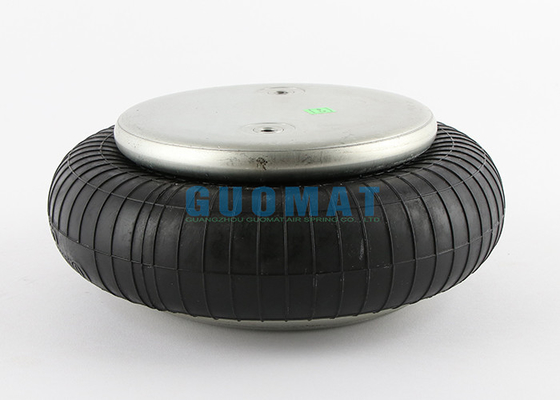

FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
Detailed Description For Contitech FS200-10
Manufacturer: Contitech
Part Number: FS 200-10 CI
Top Cover Plate Diameter: 161mm
The Screw (Nut) of the Top Cover Plate: 2XM8,15mm
The Distance Between the Screw of the Top Cover Plate: 89mm
Gas Hole: G1/4
Bottom Cover Plate Diameter: 161mm
The Screw (Nut) of the Bottom Cover Plate: 2XM8,15mm
The Distance Between the Screw of the Bottom Cover Plate: 89mm
The Rubber Bellow Diameter: 250mm
The Working Stroke: 51mm-140mm
Vibration isolation – dynamic characteristic values
Design height H: recommended 110mm, minimum 90mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force (Load) ［KN］ | 5.5 | 7.5 | 9.6 | 11.9 | 14 | 15.7 | 2.9 |
| Spring Rate ［N/cm］ | 150 | 205 | 260 | 315 | 370 | 425 | |
| Natural Frequency ［Hz］ | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 150 | 5.36 | 7.24 | 9.18 | 11.2 | 13.2 | 15.3 | 3.1 |
| 110 | 6.09 | 8.21 | 10.4 | 12.6 | 14.8 | 17.2 | 2.9 | |
| 100 | 6.85 | 9.2 | 11.6 | 14 | 16.5 | 19 | 2.6 | |
| 90 | 7.37 | 9.88 | 12.4 | 15 | 17.7 | 20.3 | 2.4 | |
| 80 | 7.85 | 10.5 | 13.2 | 15.9 | 18.7 | 21.5 | 2.1 | |
| 70 | 8.36 | 11.2 | 13.9 | 16.8 | 19.7 | 22.6 | 18 | |
| 60 | 8.68 | 11.5 | 14.5 | 17.4 | 20.3 | 23.3 | 1.5 | |
Material: Rubber
Warranty:1 Year Warranty
MOQ: 10 Pieces
Air Spring: Single Convoluted Air Spring
Color: Black
Gas Hole: G1/4 ; G3/4
Item: Bellows Style Industrial Air Spring
Contitech Assembly Number
FS 120-9 3/4 M8 ; FS120-9 3/4 M8
FS 120-9 1/4 M8 ; FS120-9 1/4 M8
Instructions for Using Rubber Air Spring
Do not inflate the air spring when it is not installed, unless the product is firmly installed in a suitable structure and the maximum pressure is 7 pressures, otherwise there is a risk of product damage or personal injury
Air springs should be placed indoors at room temperature, in a cool and dry place
The air spring is made of high-quality spring material, and its good dynamic performance ensures that the air spring is maintenance-free and has a long service life.
Wide operating temperature range from -53°C to 70°C
Resistant to oily compressed air
Anti-dust
Resistant to alkaline and acidic cleaners
Insensitive to atmospheric influences
Ozone resistant
solvent
Hydraulic oil
grease
