| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | LHF300/218-2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber + Steel | Warranty Period: | 1 Year |
|---|---|---|---|
| Package: | Carton/Cartons | Rubber Type: | High-Quality |
| Application: | For Industrial | Position: | Front Or Rear |
| Pressure: | 0.2-0.8 M PA | Sample: | Available |
| High Light: | LHF300/218-2 Rubber Air Spring,Double Convoluted Rubber Air Spring |
||
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
Product Description
Model Number: LHF300/218-2
Flange: JBF
Number of Convolution: 2
Nominal Diameter: Ø300mm
Outer Diameter: Ø380mm
End Outer Diameter: Ø308mm
Height: Ø226mm
Product Performance
|
Applicable Medium |
Air |
Water |
|
Work Pressure |
Mpa |
≤0.7 |
|
Burst Pressure |
Mpa |
≥2.0 |
|
Fatigue Test |
Times |
≥1 Million Times |
|
Minimum Compression Height |
mm |
90 |
|
Safe Extension Height |
mm |
270 |
The air spring can be used on the vibration platform, which can effectively reduce the vibration damage caused by external factors and the internal structure of the machine, thereby prolonging the service life of the machine and increasing the utilization rate of various products. So air springs can protect mechanical equipment by reducing vibration. Air springs can be used in air conditioners, centrifugal fans, small chillers, water pumps, etc.; rubber shock absorbers are widely used in instruments, equipment cabinets, etc.
LHF Type Air Spring
|
LHF100/166-2 |
LHF100/238-3 |
LHF150/212-2 |
LHF150/304-3 |
|
LHF200/212-2 |
LHF200/304-3 |
LHF230/120-1 |
LHF230/218-2 |
|
LHF230/316-3 |
LHF250/255-2 |
LHF250/218-2 |
LHF250/316-3 |
|
LHF256/92-1 |
LHF256/166-2 |
LHF280/218-2 |
LHF280/316-3 |
|
LHF300/218-2 |
LHF300/316-3 |
LHF320/186-2 |
LHF320/240-2 |
|
LHF320/350-3 |
LHF340/226-2 |
LHF400/218-2 |
LHF400/316-3 |
|
LHF440/218-2 |
LHF440/316-3 |
LHF500/220-2 |
LHF500/320-3 |
|
LHF580/262-2 |
LHF580/384-3 |
|
HF Type Air Spring
|
HF80/90-1 |
HF80/142-2 |
HF95/70-1 |
HF100/166-2 |
|
HF100/238-3 |
HF104/66-1 |
HF115/77-1 |
HF120/132-2 |
|
HF125/112-1 |
HF150/140-2 |
HF170/120-1 |
HF174/126-1 |
|
HF180/156-1 |
HF180/152-2 |
HF190/170-2 |
HF190/248-3 |
|
HF192/140-2 |
HF208/90-1 |
HF230/116-1 |
HF230/120-1 |
|
HF230/140-2 |
HF240/100-1 |
HF240/165-2 |
HF250/255-2 |
|
HF264/90-1 |
HF290/105-1 |
HF300/255-2 |
HF310/160-1 |
|
HF320/203-2 |
|
GF Type Air Spring
|
GF40/60-1 |
GF100/140-2 |
GF100/166-2 |
GF100/238-3 |
|
GF120/102-1 |
GF150/206-2 |
GF150/298-3 |
GF200/206-2 |
|
GF200/298-3 |
GF230/206-2 |
GF230/298-3 |
GF250/206-2 |
|
GF250/298-3 |
GF280/206-2 |
GF280/298-3 |
GF300/218-2 |
|
GF300/316-3 |
GF320/120-1 |
GF320/215-2 |
GF320/310-3 |
|
GF400/215-2 |
GF400/310-3 |
GF400/215-2 |
GF440/310-3 |
|
GF500/220-2 |
GF500/320-3 |
GF500/420-4 |
GF580/262-2 |
|
GF580/384-3 |

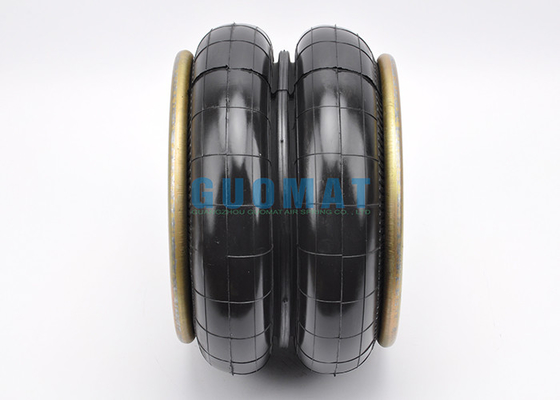

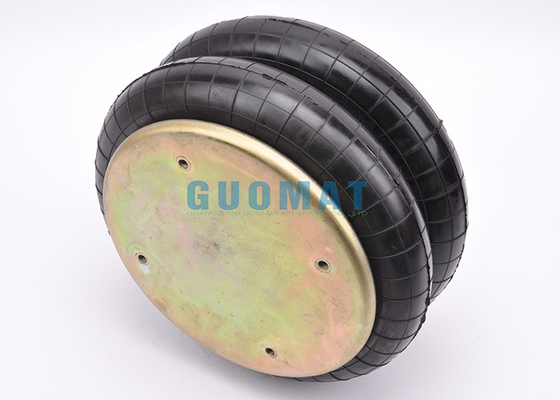

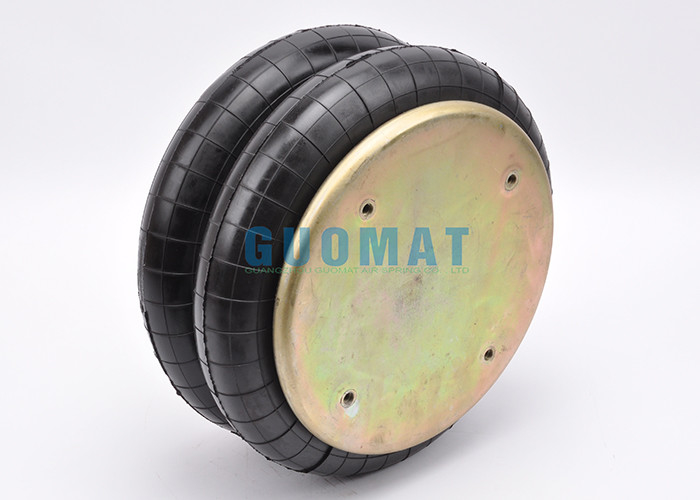

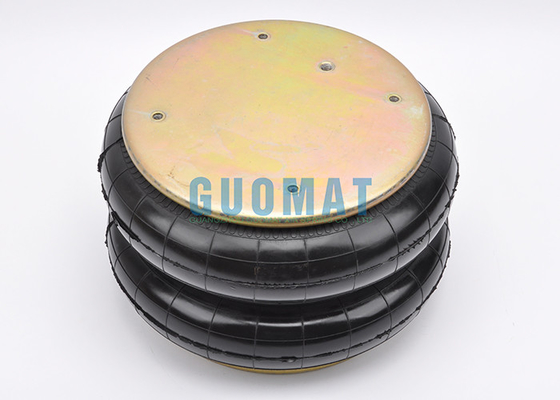

The Real Pictures
