Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N

Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N

  • Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N
  • Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N
  • Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N
  • Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N
Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 769N
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $19-29/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Rubber Air Bags Material: Natural Rubber
Warranty: 12 Months Suspension System: Bus Air Suspension Spring
Sample: Available The Working Stroke: 380mm
Natural Outer Diameter: 190mm Weight: 1.7kg
High Light:

W01-095-0204 Firestone Air Spring

,

Natural Rubber Firestone Air Spring

Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N



Product Description



Cross references

Firestone

W01-095-0204

Firestone

W01 095 0204

Firestone

W010950204

Firestone Bellow

1R1A 380 260

Firestone Bellow

1R1A380260

Contitech

769N

Goodyear

8053

Phoenix

1E18

Taurus

B156

Dunlop

D10S02

CF Gomma

1SC 240-30

CF Gomma

1SC240-30



Original parts

Menarini

252933

CF Gomma

1S 323-23

CF Gomma

1S323-23

IRIS

5.000.786.640

IRIS

5.000.786.641

IRIS

5.000.805.284

RVI

5.000.805.284

Van Hool

624319-860



Contitech 769N Technical Data



Net Weight: 1.7KG

Design Height: 380mm

Natural Outer Diameter: 190mm
Nominal Diameter: 130.8mm

Loading cap. At 0.3 bar: 3.5kN

Loading cap. At 9.0 bar: 26kN



Bus Air Spring

Bus air suspension springs arose nearly 50 years ago from the need to improve driving comfort by absorbing vibrations, vibrations and sudden shocks in buses caused by road structures, and air suspension springs are used in almost all buses in Europe. We produce air suspension springs to meet the requirements of a more comfortable ride and a more optimized vehicle load.



The air suspension springs of the bus both ensure a high level of driving comfort for the passengers and are able to maintain the vehicle height at the same ideal level during travel. Additionally, air suspension springs allow the bus to tilt and lower, allowing passengers to get on and off the bus with ease. Generally, it is necessary to install two air suspension springs on the front axle and four air suspension springs on the rear axle.



GUOMAT ROLL AIR SPRING

GUOMAT CONTITECH FIRESTONE GOODYEAR PHOENIX
644N 644N W01-095-0118 8017 1E21
661N 661N W01-095-0021 8018 1E25
662N 662N W01-095-0207 9007 1E32
673N 673N W01-095-0198 9051 1F21A
701N 701N W01-095-0205 9006 1E26-1
706N 706N
713N 713N
715N   W01-095-0087 8015 1F25
716N   W01-095-0145   1F26B-1
719N 719N W01-095-0192 8118 1F32B
720N   W01-095-0195 9008 1F21
727N   W01-095-0191 8117 1F32A
728N   W01-095-0419   1F32A-2
737N   W01-095-0211   1F26
746N
757N   W01-095-0212   1F26C
762N   W01-095-0190 9010 1F32
768N   W01-095-0213
769N   W01-095-0204 8053 1E18
775N
782N   W01-095-0197 9013 1E21D
786N   W01-095-0436   1F14

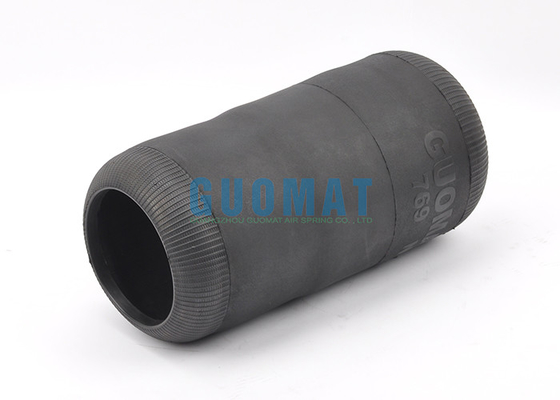

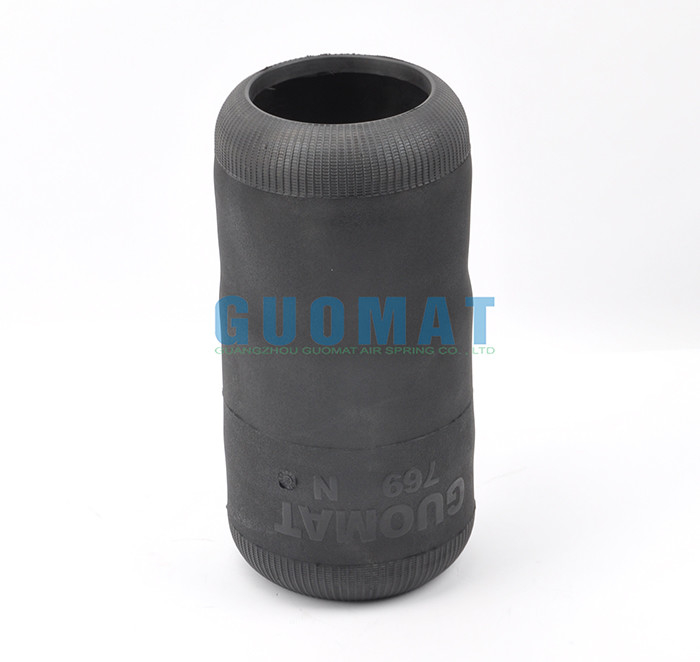

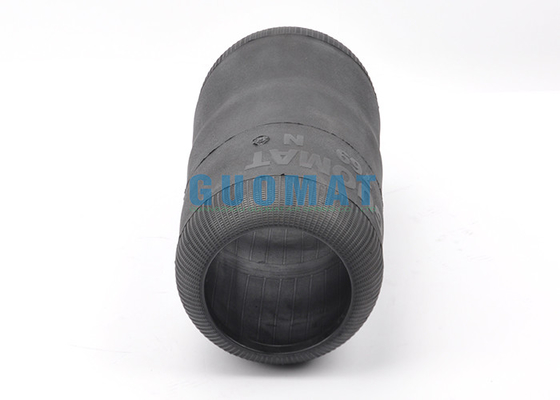

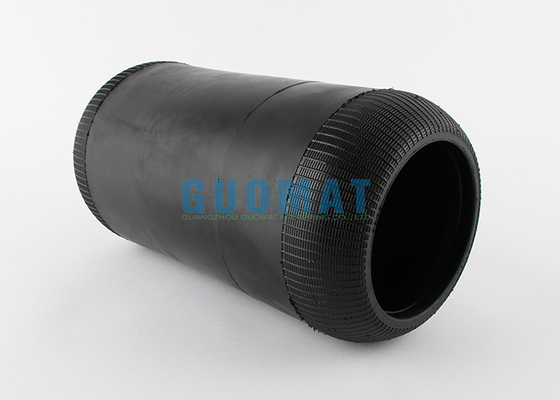

Real Pictures

Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N 0Natural Rubber W01-095-0204 Firestone Air Spring Bellow For Bus Air Suspension Contitech 769N 1
