| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B8008 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $89.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Industrial Air Spring | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Operation: | Gas-filled |
| Fuction: | Reduce Shock | MOQ: | 10 Pieces |
| Cover Plate Dia.: | 231mm | The Stroke: | 297mm |
| High Light: | 3B12-300 Goodyear Air Spring,W01-358-8008 Goodyear Air Spring,Firestone Rubber Air Bellow |
||

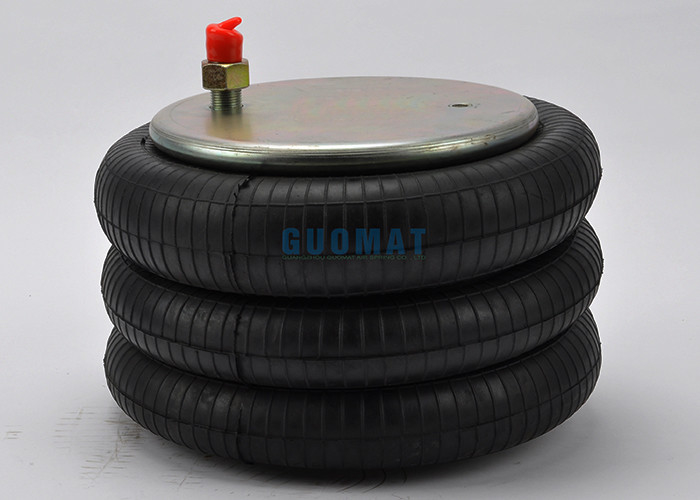

3B12-300 Goodyear Air Spring W01-358-8008 Firestone Industrial Rubber Air Bellow With Cover Plate
Product Information
|
Item |
Convoluted Type Air Spring |
|
Model No. |
3B8008 |
|
Material |
Natural Rubber |
|
Warranty |
12 Months |
|
MOQ |
10 Pieces |
|
Number of Convolution |
3 Convoluted |
|
Delivery Time |
3-8 working days |
|
Color |
Black |

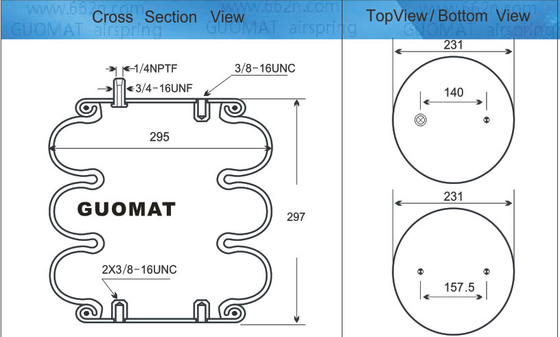

Product Specifications Technical Data
|
Nut/Blind Nut |
|
|
Top Cover Plate Screw (Nut) Tooth |
3/8-16UNC |
|
Top Cover Plate Screw(Nut) With Air Hole Tooth |
3/4-16UNF |
|
Screw and Air Inlet Distance of Top Cover Plate |
140mm |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Bottom Cover Plate |
157.5mm |
|
Gas Hole / Air inlet / Air Fitting |
|
|
Gas Hole / Air inlet |
1/4NPTF |
|
Cover Plate |
|
|
Top Cover Plate Diameter |
231mm |
|
Bottom Cover Plate Diameter |
231mm |
|
Rubber Bellow |
|
|
Rubber Bellows MAX Diameter |
295mm |
|
The Working Stroke |
297mm |
Cross Reference Number
Firestone Part Number: W01-358-8008
Firestone Part Number: W01 358 8008
Firestone Part Number: W013588008
Contitech Part Number: FT300-29 431
Contitech Part Number: FT 300-29 431
Contitech Part Number: FT300-29431
Goodyear Part Number: 3B12-300
Goodyear Part Number: 3B 12-300
Goodyear Part Number: 3B12 300
Triangel Part Number: 6334
Goodyear Bellow Number: 578933100
Triangel Bellow Number: 4431
Dayton Air Spring: 3548008
Leland Air Spring: Sc2130
Ridewell Air Spring: 1003588008C
Silent Drive Air Spring: AS-0019
Hendrickson Air Spring: S11637
Hendrickson Air Spring: NS501690
Watson&chalin Air Spring: AS-0019
EZ RIDE Air Spring: 8030155
Histeer/Langes Air Spring
SAF Holland Air Spring: 57008008
Tuthill Air Spring: 6392
Attention to Installing Truck Air Springs
For your safety and to prevent possible damage to your vehicle, do not exceed the maximum load recommended by the vehicle manufacturer (GVWR). Although your Air Helper Springs are rated at a maximum inflation pressure of 100 psi, this pressure may allow you to carry too great a load on some vehicles. It is best to have your vehicle weighed once it is completely loaded and compare that weight to the maximum allowed. Check your vehicle owner’s manual or data plate on driver's side door for maximum loads listed for your vehicle. When inflating your Air Helper Springs, add air pressure in small quantities, checking pressure frequently during inflation. The air spring requires much less air volume than a tire and, therefore, inflates much quicker.

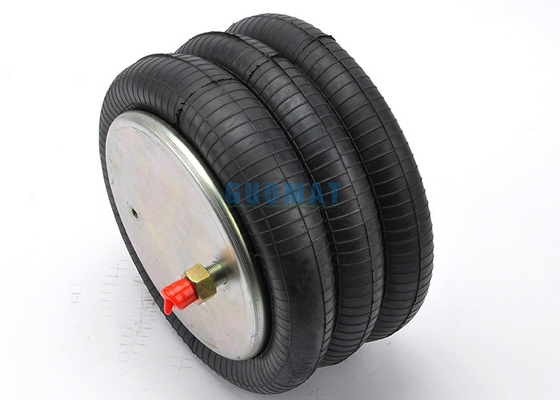

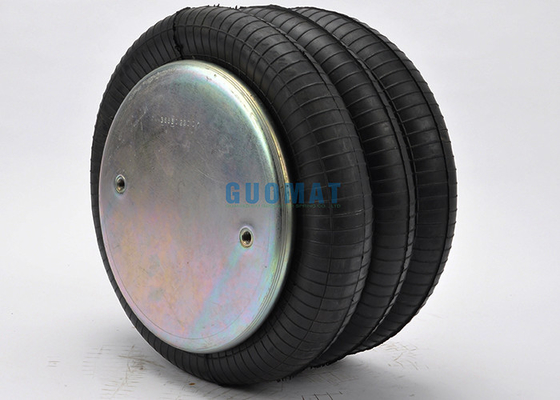

The Real Pictures
