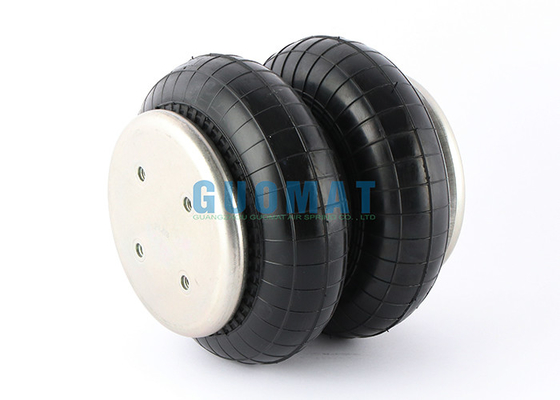

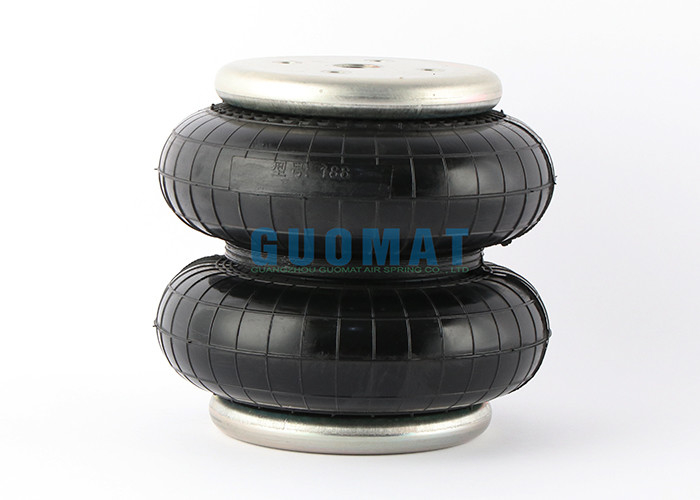

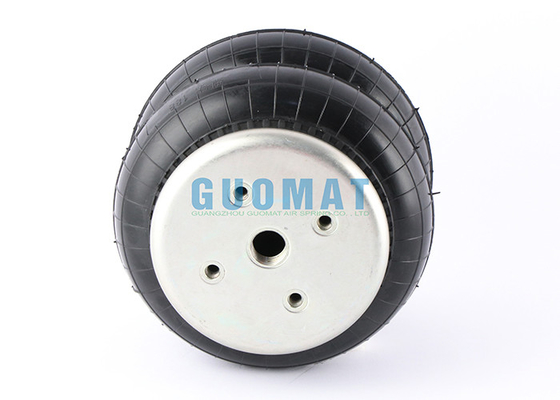

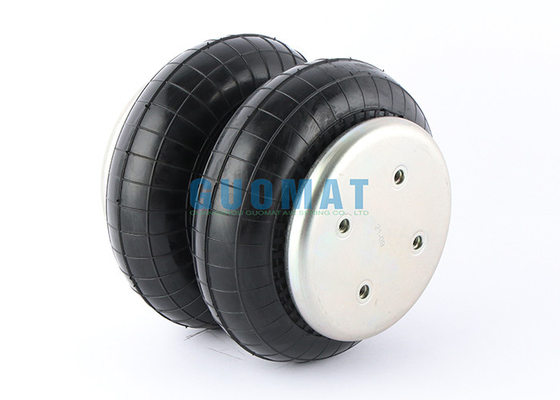

2B188168 Double Convoluted Type Air Suspension Spring Gas Hole G1/4 Industrial Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B188168

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Type:	Rubber Air Spring	Material:	Rubber Bellow And Aluminum Cover
Warranty:	1 Year Warranty	Function:	Reduce Shock
Air Connection:	G1/4	Pressure Ability:	0.2-0.8 M Pa
Number Of Bolts:	4 Pieces	Other Name:	Air Spring Bellows
Highlight:	Double Convoluted Type Air Suspension Spring , 2B188168 Air Suspension Spring , Industrial Bellow Air Suspension Spring

GUOMAT 2B188168 Double Convoluted Type Air Suspension Spring Gas Hole G1/4 Industrial Bellows

Product Description

OEM Original Equipment Manufacturer Number

Contitech Number: 603N

Contitech Number: 603 N

Firestone Number: W01-358-0142

Firestone Number: W01 358 0142

Firestone Number: W013580142

Firestone Flex Number: 26

Phoenix Number: 2B07R

Phoenix Number: 2B07 R

Phoenix Number: 2B 07 R

Contitech Number: FD120-17

Contitech Number: FD 120-17

Goodyear Number: 2B7-540

Goodyear Number: 2B 7-540

PIRELLI 26

AIRKRAFT 114050
BOSCH 822419042
DUNLOP 2682 030000
DUNLOP (FR) SO 8201
FESTO EB-215-155

NORGREN PM/31082 (8x2)
PIRELLI T26 84181
TAURUS KF 218
WEFORMA WBZ 300-E1
AIRKRAFT 113053

Specifications and Technical Parameters

Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth	4 pcs X M8X1.25
Screw and Air Inlet Distance of Top Cover Plate	70mm
Bottom Cover Plate Screw (Nut) Tooth	4 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate	70mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	G1/4
Cover Plate
Top Cover Plate Diameter	135mm
Bottom Cover Plate Diameter	135mm
Rubber Bellow
Rubber Bellows Natural Diameter	189mm
Rubber Bellow Natural Height	177mm
Compressed Height	79mm
Design Height	178mm-203mm
Maximum Diameter	218mm

Applications of Air Actuators

No.	Application
1	Gate Valve Operator
2	Gluing Press
3	WEB Tensioning Device
4	Die Stripper
5	Knife Spring Actuator
6	Quench Tank Actuator
7	Paper Sizing Press
8	Pickling Tank Actuator
9	Quick Lock Device
10	Pressure Roll For Calender
11	Missile Assembly Fixture
12	Core Straightener
13	Belt Take Up
14	Pipe Indexing Threading
15	Roller Friction Brake
16	Oscillating Doctor For Paper Calender Roll
17	Forming Press
18	Cable Tensioning Device
19	Bag Flattener
20	Torsional Friction Brake
21	Hinged Gate
22	Hot Foil Stamping Press
23	Actuated Heavy Duty Sealer
24	Pivoted Clamping Device
25	Airstroke Actuated Roller Stop
26	Hinged Actuated Gravity Gate
27	Vertical Actuated Drive Table
28	Scissor Lift
29	Case Packer
30	Conveyor Transfer Actuator
