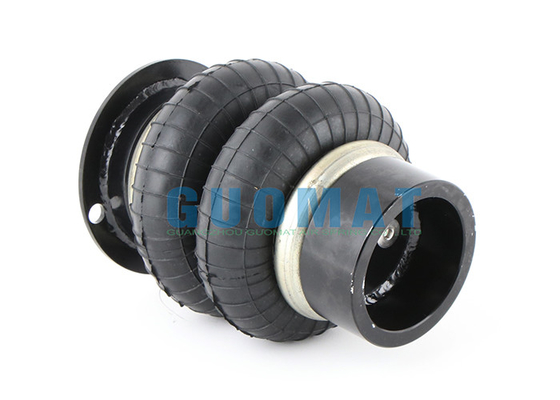

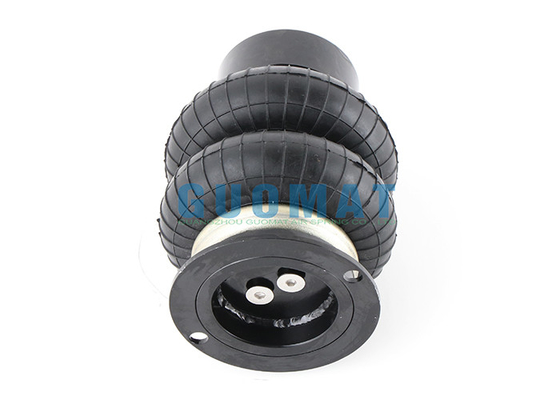

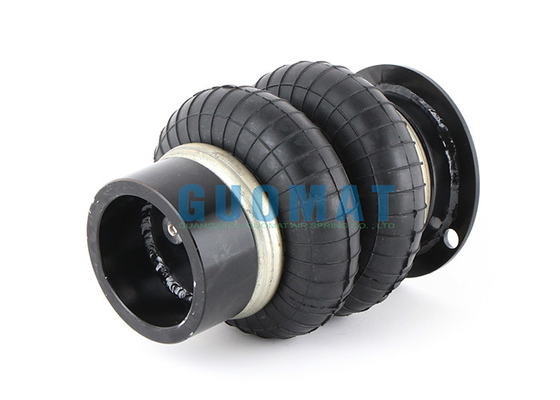

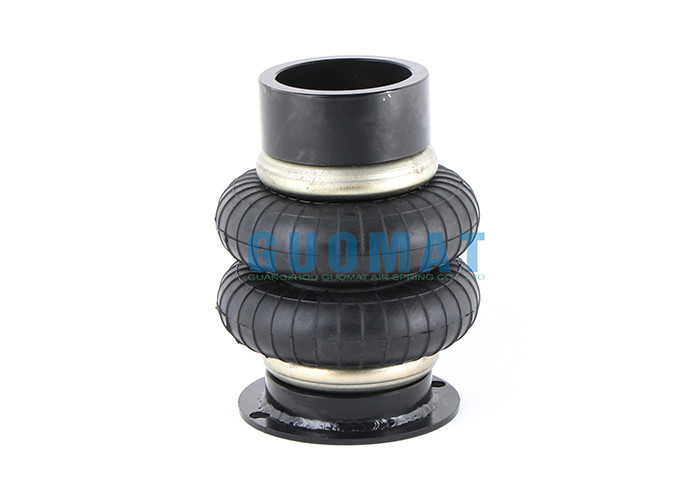

2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4060

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Type:	Rubber Air Spring	Main Material:	Natural Rubber
Warranty:	1 Year Warranty	Function:	Reduce Shock
Size:	24cm24cm24cm	Bearing Range:	50-500KG
Contitech:	FD40-10	Color:	Black
Highlight:	2B4060 Air Suspension Air Spring , 125mm Air Suspension Air Spring , FD 40-10 Industrial Air Spring

Guomat 2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

Product Description

GUOMAT NO.2B4060 can be replace Contitech FD40-10.Can be used for shock absorption of industrial equipment.At the same time reduce noise, prolong the service life of industrial machines and increase efficiency.

Manufacturer: Contitech

OEM Number:FD40-10

:FD 40-10

:FD40-10 CI 1/8 NPT

Warranty: 12 Months Warranty

Material:Rubber/Steel

Application: Industrial Machine

MOQ: 10 Pieces

Function: Reduce Vibration

Key Words: Double Convolution Air Spring

Contitech FD 40-10 Air Bellow Technical Data

Top Cover Plate Diameter (Width): 90 mm
Bottom Cover Plate Diameter (Width): 90 mm
Air inlet : G1/8
Top Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Top Cover Plate : 20 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Bottom Cover Plate : 20 mm
Rubber Bellows Natural Diameter : 125mm
Rubber Bellows Natural Height : 145 mm

Min.pressure 0 bar

Return Force to Min.Height ≤200N

Overall Weight with Clamped Plate 1.1kg

Vibration isolation-dynamic characteristic Values

Design height H:Recommened 160mm,minimum 150m

Pressure P [bar]	3	4	5	6	7	8	Vol.[I]
Force(Load) [KN]	1.1	1.5	2.0	2.4	2.8	3.2	1.2
Spring Rate [N/cm]	340	450	580	700	825	950
Natural Frequency [Hz]	2.8	2.8	2.7	2.7	2.7	2.7

Pneumatic Application-Static Characteristic Values

Force F(kN)

Pressure P	[bar]	3	4	5	6	7	8	Vol.[I]
Height H [mm]	160	1.1	1.6	2.0	2.4	2.8	3.2	1.2
	140	1.6	2.2	2.8	3.3	3.9	4.5	1.1
	120	2.0	2.7	3.4	4.1	4.8	5.5	0.9
	100	2.3	3.1	4.0	4.8	5.6	6.4	0.7
	80	2.6	3.5	4.5	5.4	6.3	7.1	0.6
