Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags

Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags

  • Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags
  • Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags
  • Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags
  • Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags
Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B5204
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Item Type: Rubber Air Spring Material: Natural Rubber/Steel
Warranty: 1 Year Warranty Function: Reduce Shock
Firestone: Bellow 255-1.5 Packing Size: 16cm*16cm*16cm
Gross Weight: 1.4KG Application: Modified Vehicle Suspension
High Light:

Double Convoluted Firestone Air Spring

,

Rubber Firestone Air Spring

,

Industrial Air Spring Double Convoluted

Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags

Product Description


Item

Firestone Industrial Double Convoluted Air Spring

Material

Rubber + Steel

Warranty

12 Months

MOQ

10 Pieces

Certificate

ISO/TS16949:2009

Color

Black

Application

For Industrial Machine

Manufacturer

Firestone

Cross Reference

Bellow 255-1.5


Specifications and Detailed Technical Parameters

Cover Plate
Top Cover Plate Diameter: 111mm
Bottom Cover Plate Diameter: 111mm

Gas Hole/Air Hole
Gas Hole: 3/8NPT

Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.5 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 165mm
The Stroke: Min 65mm-Max 175mm

Air springs are used in industrial equipment

When we talk about air springs, what many people can think of is the shock absorption on cars. In fact, in the automotive field, installing air springs in automobile suspension can bring excellent shock absorption effects. Of course, air springs can not only be used in the automotive industry, but also in industry.

With the development of industry, air springs are widely used in industrial production equipment. For example, paper machinery, vibrating screens, presses, centrifugal dehydrators, casting and textile machinery and equipment, precision machine tools and other industrial equipment. When the mechanical equipment operates, the noise generated by the vibration will cause damage to the machinery itself and physical harm to the staff. When the mechanical equipment is equipped with an air spring, it can cache and absorb the vibration generated by the machine's work, effectively reducing the noise. At the same time, it can also extend the service life of machinery and equipment, improve the production efficiency of enterprises, and be conducive to the sustainable development of enterprises.


Product IDOEM NumberDescriptionApplication
2B6935W01-358-6935Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B6940W01-358-6940Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B6941W01-358-6941Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B6949W01-358-6949Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B7788W01-358-7788Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B7795W01-358-7795Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B7892W01-358-7892Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B7894W01-M58-7894Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines
2B6905W01-358-6905Firestone Industrial Air SpringCan be used for vibration reduction of industrial machines

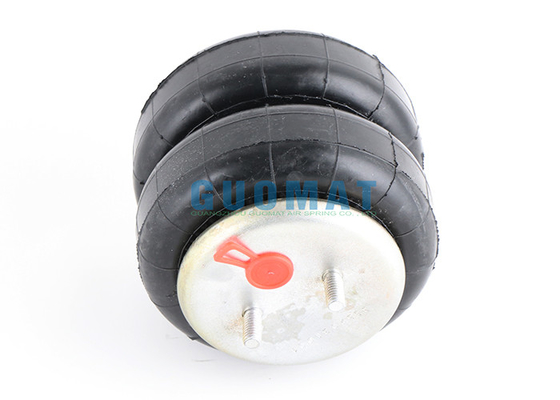

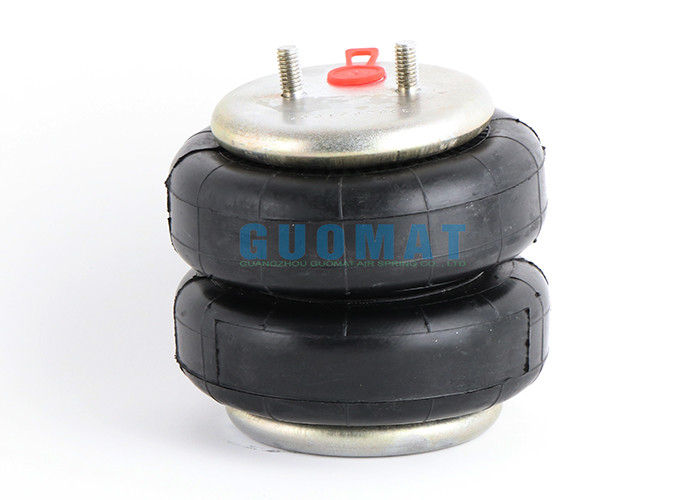

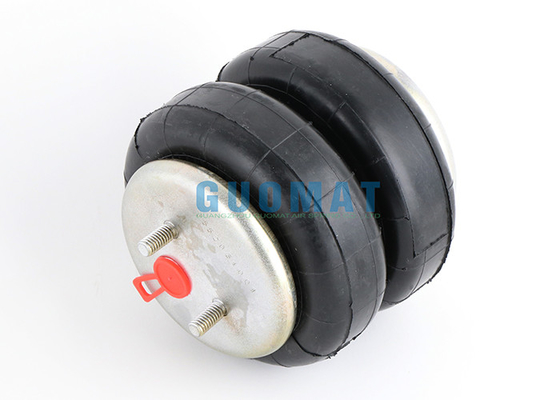

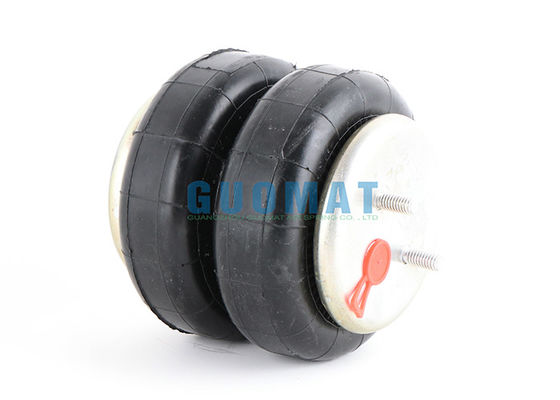

The Real Pictures
Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags 0Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags 1
