| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B8X4 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Guomat Suspension Air Bags | Material: | Natural Rubber/Steel |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Function: | Reduce Shock |
| Application: | Paper Machine Equipment | With Flange: | Yes |
| MOQ: | 10 Pieces | Part Number: | 2B8X2 |
| High Light: | 2B8X2 Air Spring Bag,FD138-18 Air Spring Bag,Industrial Rubber Air Spring Bag |
||
2B8X2 Air Springs Bags Actuator FD138-18 DS Plate Industrial Rubber Bellows 1/4NPT Gas Filled
Product Description
Item: Guomat 2B8X2 Convoluted Air Bags
Spring Material: Rubber+Steel
Warranty: 12 Months
MOQ: 10 Pieces
Certificate: ISO/TS16949:2009
Color: Black
Application: For Industrial Machine
Other Name: Air Actuator
Cross Reference Number
Contitech Air Spring: FD138-18 1/2 M10
Contitech Air Spring: FD 138-18 1/2 M10
Contitech Air Spring: FD 138-18 DS 1/2 M10
Contitech Air Spring: FD 138-18 DS G1/2 M10
Contitech Air Spring: FD 138-18 DS G1/2 CR
Contitech Air Spring: FD138-18 DS/FD 138-18 DS/FD13818DS
Contitech Air Spring: FD 138-18 / FD138-18/ FD13818
Firestone Air Spring: W01-R58-4055
Firestone Air Spring: W01 R58 4055
Firestone Air Spring: W01R584055
Firestone Air Spring: WO1-R58-4055
Firestone Air Spring: WO1 R58 4055
Firestone Air Spring: WO1R584055
Firestone Air Spring: 8X2/8''X2/8''x2
Goodyear Air Spring: 2B8-2150
Goodyear Air Spring: 2B 8-2150
Goodyear Air Spring: 2B8 2150
Goodyear Flex No.: 578-92-3-2150
Goodyear Flex No.:57892 3 2150
Goodyear Flex No.:5789232150
Norgren Air Spring: M/31082
Norgren Air Spring:M 31082
Norgren Air Spring:M31082
Dunlop FR: SP1490
Dunlop FR: SP918
Dunlop UK (Pneuride): PNP 30550 01 12 1 PNP305500112
YS-AIR: YS-210-2V
YS-AIR:YS 2102V
YS-AIR:YS2102V
Springride: 2B8 -2150 1 2B82150 /2B82150
Springride Flex No.: 578-92-3-2150;
Springride Flex No.:578923 2150;
Springride Flex No.:5789232150
WEFORMA: WBZ-G 350 1 WBZ-G350 1 WBZG350
Airtech: 113060
Airtech Ref.: 2B-200 12B 200 12B200
Prime- Ride New: 2B8-2150 1 2B82150 12B82150
Prime- Ride New Flex No.: 578- 92-3-2150/ 578 92 32150/
5789232150
2B8X2 Technical Data
♦Top Cover Plate Diameter: 135mm/5.3inch
♦Screw Center Distance of Top Cover Plate : 70mm/2.8inch
♦Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
♦Bottom Cover Plate Diameter: 135mm5.3inch
♦Screw Center Distance of Bottom Cover Plate : 70mm/2.8inch
♦Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
♦Gas Hole: 1/4NPT
♦Rubber Bellow Diameter: 185mm/7.3inch
♦Rubber Bellow Height: 196mm/7.7inch
Min.Pressure:0 bar
Return Force to Min.Height: ≤200N
Overall Weight with Clamped Plates:2.3KG
Vibration Isolation-Dynamic Characteristic Values
Design Height H:Recommended 205mm,minimum 190mm
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol V[I] |
| Force(Load) [KN] | 4.6 | 6.2 | 7.8 | 9.4 | 11.1 | 12.7 | 4.1 |
| Spring Rate [N/cm] | 650 | 840 | 1030 | 1200 | 1390 | 1541 | |
| Natural Frequency [Hz] | 1.9 | 1.8 | 1.8 | 1.8 | 1.8 | 1.7 |
Pneumatic Application-Static Characteristic Values
Force F(kN)
| Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[I] |
| Height H [mm] | 200 | 4.7 | 6.2 | 7.9 | 9.6 | 11.2 | 12.9 | 4.1 |
| 160 | 5.8 | 7.8 | 9.8 | 11.9 | 13.9 | 15.8 | 3.4 | |
| 120 | 6.8 | 9.0 | 11.3 | 13.7 | 16.0 | 18.0 | 2.6 | |
| 80 | 7.3 | 9.7 | 12.1 | 14.7 | 17.1 | 19.5 | 1.7 |

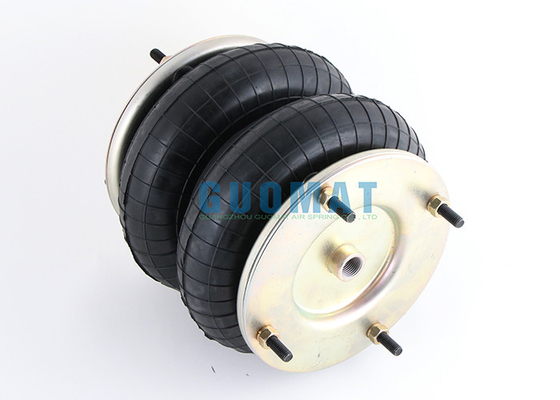

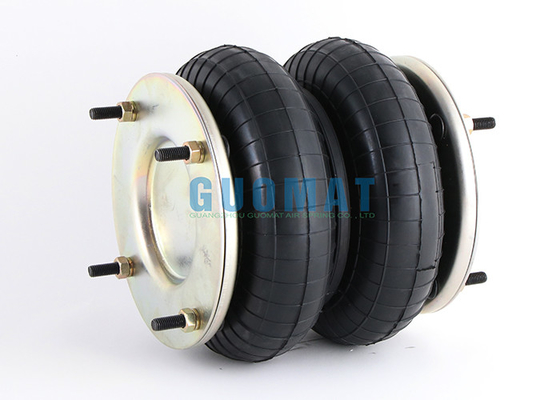

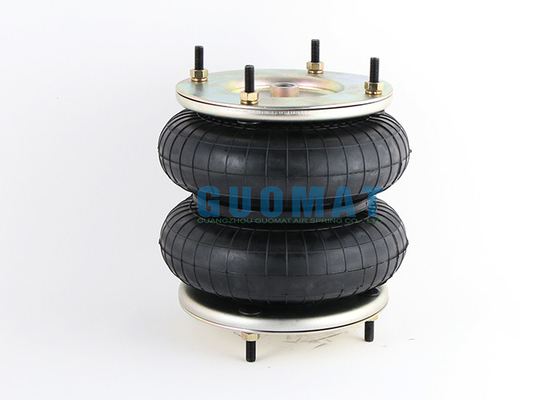

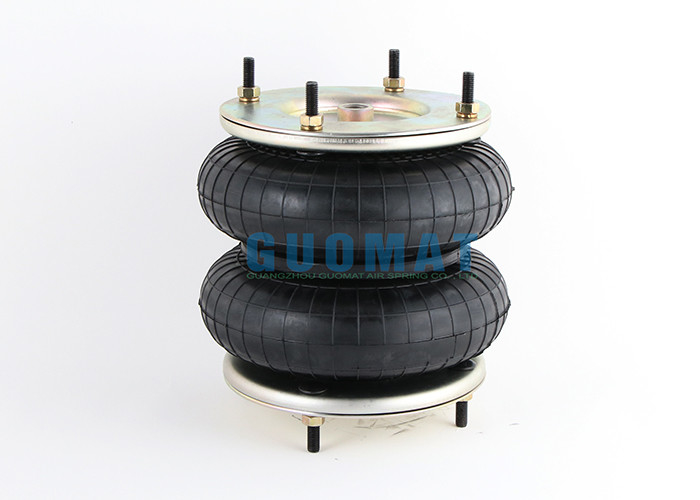

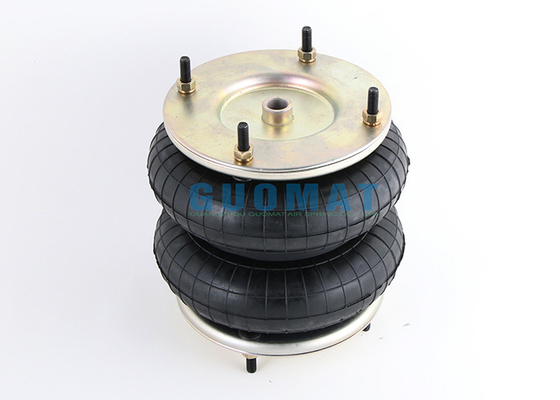

The Real Pictures
