| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8X4 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Type: | Single Convoluted Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Metal+Rubber | Function: | Reduce Shock |
| Package Size: | 24*24*24(cm) | N.W.: | 2.1KG |
| Gas Hole: | 1/4 NPTF | OEM: | 1B8-550 |
| High Light: | 1B8X4 Single Convoluted Rubber Air Spring,Rubber Air Spring W013587564,Industrial Air Spring 1B8X4 |
||
1B8X4 Single Convoluted Rubber Air Spring W013587564 Firestone Air Lift Suspension 1/4NPTF
Product Description
|
Product |
Single Convoluted Style Air Spring |
|
Model No. |
1B8X4 |
|
Warranty |
One Year Warranty |
|
Material |
Natural Rubber |
|
Country of Origin |
China |
|
Brand |
GUOMAT/Neutral |
| Color | Black |
| Application | For Industrial Machine |
| Quality | High Quality |
List of Cross Parameter
| Manufacturer | Cross Number |
| FIRESTONE | W01-358-7564 |
| FIRESTONE | W013587654 |
| FIRESTONE | W01 358 7654 |
| GOODYEAR | 1B8-550 |
| GOODYEAR | 1B8 550 |
| CONTITECH | FS120-10 |
| CONTITECH | FS 120-10 |
| CONTITECH | FS120 10 |
Technical Data
Top Cover Plate Diameter: 135mm/13.5cm
Screw Center Distance Of Top Cover Plate: 70mm/7cm
Air Connection: 1/4NPTF
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Diameter:135mm/13.5cm
Screw Center Distance Of Bottom Cober Plate: 70mm/7cm
Bottom Cover Plate Screw(Nut) Tooth: 2X3/8-16UNC
Rubber Bellow MAX Diameter: 230mm/23cm
The Working Stroke:MAX 140 to MIN 50mm
Maximum Height:140mm/14cm
Minimum Height:50mm/5cm
Compression Height:90mm/9cm
Air Spring
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring
rate increases.The larger the air spring, the greater the maximum load it can support.
About Us
We want our customers to be completely satisfied with their purchases. If you have any dissatisfaction with us. Please feel free to contact us, we will try our best to help you solve the problem.
· Our payment methods: TT, Western Union, LC and PayPal
· Please confirm the model and quantity of the product with us before purchasing
· Items are shipped by DHL, FedEx, etc., depending on the weight and size of the item. If the weight or size is large, we will choose to ship by sea.
· Generally, it will be shipped within 3-10 working days after payment, depending on the stock.
Firestone Single Convoluted Air Suspension Spring
W01-M58-6165;W01 M58 6165;W01M586165
W01-M58-6166;W01 M58 6166;W01M586166
W01-358-7731;W01 358 7731;W013587731
W01-M58-6374;W01 M58 6374;W01M586374
W01-358-7008;W01 358 7008;W013587008
W01-358-7009;W01 358 7009;W013587009
W01-358-6994;W01 358 6994;W013586994
W01-358-6919;W01 358 6919;W013586919
W01-358-7725;W01 358 7725;W013587725
W01-358-7598;W01 358 7598;W013587598
W01-358-7094;W01 358 7094;W013587094
W01-358-7095;W01 358 7095;W013587095
W01-358-7551;W01 358 7551;W013587551

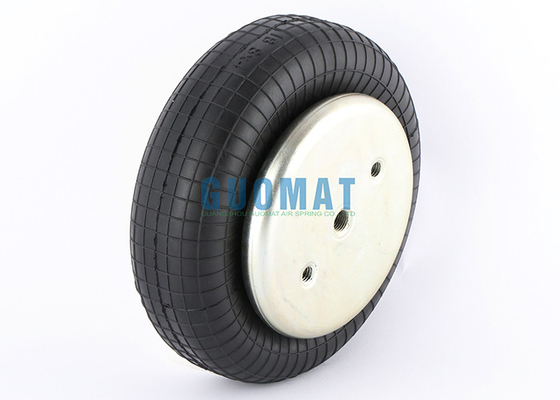

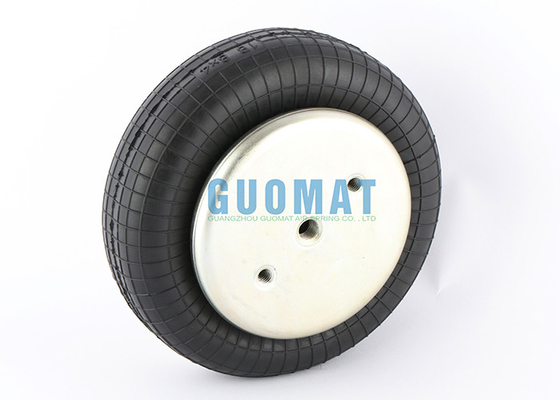

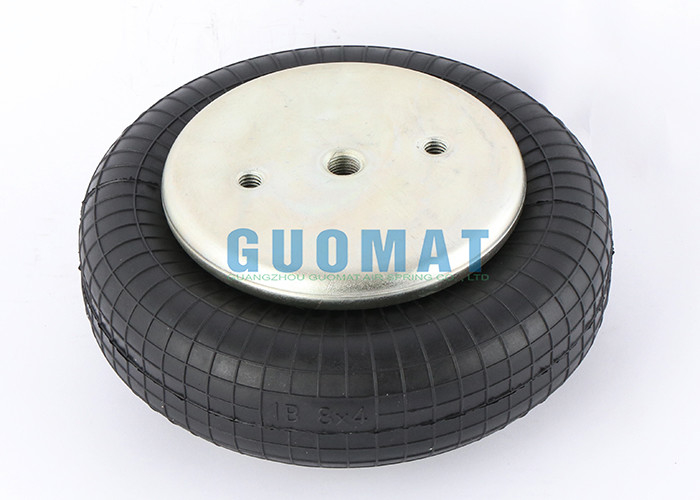

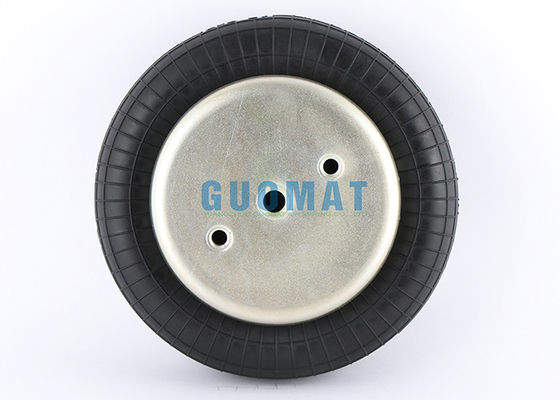

The Real Pictures Of GUOMAT 1B8x4 Air Bag
