| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-240-3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber |
|---|---|---|---|
| Color: | Black | Application: | Punching Press Machine |
| OEM: | YOKOHAMA S-240-3R | Other Name: | Air Springs Bellows Actuator |
| Number Of Convolution: | 3 | Quality: | High Quality |
| High Light: | Triple Convoluted Yokohama Air Spring,Yokohama Air Spring S-240-3R,S-240-3R Industrial Air Spring |
||
Hot Sale Triple Convoluted Yokohama Air Spring S-240-3R For Industrial Punching Press
Product Description
In our industrial production, the use of equipment such as punch presses to produce molds or parts is precisely because of the high utilization rate of punch press equipment, so it is also critical to the service life of the machine. By installing an air spring on the punching machine, it can buffer the impact of the punching machine, and can maintain other parts of the punching machine very well, and it will not cause the punching machine to crack or loose parts. So that the punching machine can be well maintained and the use of the punching machine can be extended. life and improve economic efficiency.
The choice of air spring must meet the application requirements of the punch press, and there must be no air leakage. The damage of the air spring should be checked regularly and replaced in time to avoid deformation of the punch due to damage to the air spring, resulting in the machine not working properly.
Product Cross Reference Number
YOKOHAMA S-240-3R
YOKOHAMA S 240 3R
YOKOHAMA S2403R
S-240-3R Techical Data Purchase Order Data
|
Height H (mm) |
Design Height (mm) |
152 |
|
Max Height (mm) |
232 |
|
|
Min Height (mm) |
82 |
|
Common Maximum Travel (mm) |
±60 |
|
Common Max Outside Diameter (mm) |
300 |
|
Standard height, approximate value at internal pressure of 0.49MPa |
Effective Area(cm2) |
450 |
|
Volume(L) |
7.3 |
|
|
Load(KN) |
22.2 |
|
|
Dynamic Spring Constant(n/mn) |
324 |
|
|
Natural Vibration Frequency(Hz) |
1.9 |
|
Maximum Internal Pressure(Mpa) |
0.88 |
|
Internal Pressure Failure(MPa) |
2.9-3.9 |

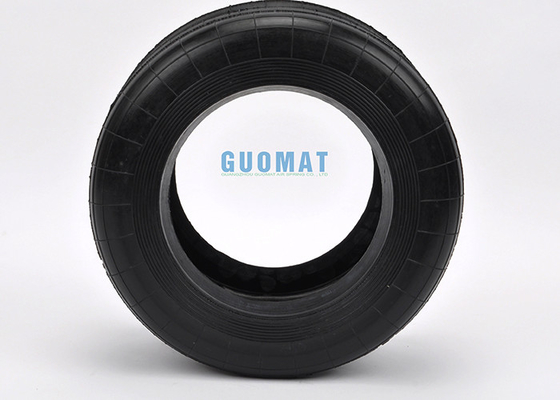

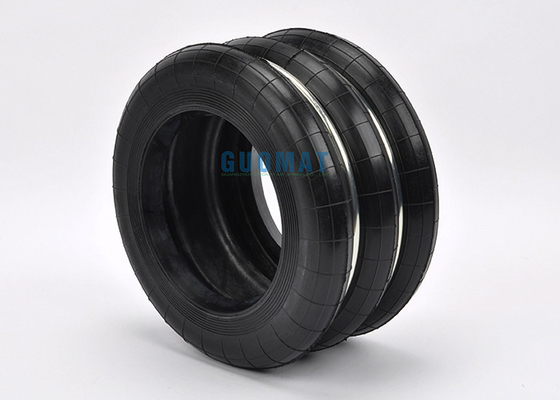

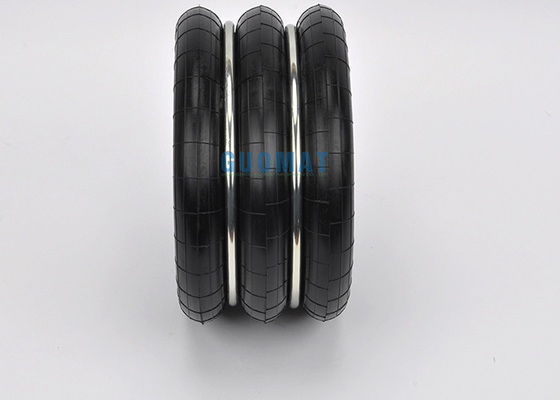

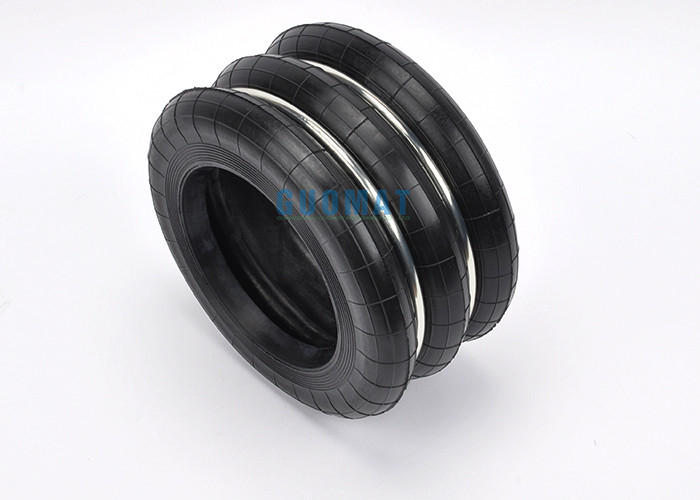

Real Pictures
FAQ
1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.
2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.
4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.
5. Can i use my own logo and design on products?
YES,OEM is welcomed.
6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
