1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen

1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen

  • 1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen
  • 1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen
  • 1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen
  • 1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen
1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7-544
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $59.9-159.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product: Goodyear Industrial Air Spring Manufacturer: Goodyear
Warranty: 12 Months Material: Metal+Rubber
Function: Reduce Shock Bellow No.: 579912544
Pressure Ability: 0.2-0.8 M Pa Color: Black
Highlight:

1B7-544 Goodyear Single Convoluted Air Spring

,

579 912 544 Single Convoluted Air Spring

,

1B7-544 Goodyear Air Spring

1B7-544 Goodyear Single Convoluted Style Air Spring Bellows NO. 579 912 544 For Vibrating Screen


Product Description



American imports airbag 1B7-544 Goodyear rubber air spring single-turn curved air spring
Enidine Air Springs YI-1B7-544

1B7-544 can replace 1B7-520



Material: Natural Rubber

Warranty: 1 Year Warranty

MOQ: 10 Pices

Goodyear: 1B 7-544

Bellows No.: 579-912-544

Bellows No.: 579912544

Spring Type: Convoluted Type Air Spring

Other Name: Goodyear Air Bag



Single Convoluted Type Air Spring -GOODYEAR

Part Number

1B5-500

1B5-502

1B5-503

1B5-510

1B5-512

1B5-520

1B5-521

Air Hole

1/4

3/4

1/4

1/4

3/4

1/4

3/4

Bumper

NO

NO

NO

NO

NO

NO

NO

Max 100 psi (Inches)

5.7

5.7

5.7

6.0

6.0

6.5

6.5

Design Load Range(Pounds)

220-1370

220-1370

220-1370

195-1560

195-1560

190-1555

190-1555

Design Load Range(Inches)

2.5-3.0

2.5-3.0

2.5-3.0

2.5-4.0

2.5-4.0

3.5-5.0

3.5-5.0

Useable Stroke(Inches)

2.0

2.0

2.0

3.0

3.0

4.0

4.0

Min Comp Height(Inches)

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Max Ext Height(Inches)

3.8

3.8

3.8

4.8

4.8

5.8

5.8



Part Number

1B6-530

1B6-531

1B6-532

1B6-535

1B6-536

1B6-538

1B7-540

Air Hole

1/4

1/4 OS

1/4 OS

1/4

1/4 OS

1/4 OS

1/4

Bumper

NO

NO

YES

NO

NO

YES

NO

Max 100 psi (Inches)

6.5

6.5

6.5

7.0

7.0

7.0

7.7

Design Load Range(Pounds)

290-1960

290-1960

290-1960

250-2210

250-2210

250-2210

260-2225

Design Load Range(Inches)

3.0-4.0

3.0-4.0

3.0-4.0

4.0-6.0

4.0-6.0

4.0-6.0

4.0-5.0

Useable Stroke(Inches)

3.0

3.0

2.5

5.3

5.3

4.8

3.8

Min Comp Height(Inches)

1.8

1.8

2.3

1.8

1.8

2.3

1.8

Max Ext Height(Inches)

4.8

4.8

4.8

7.0

7.1

7.1

5.6



2B9-251 578-92-3-206

2B9-252 578-92-3-206

2B9-253 578-92-3-206

2B9-254 578-92-3-206

2B9-255 578-92-3-206

2B9-265 578-92-3-206

2B9-266 578-92-3-206

2B9-270 578-92-3-206

2B9-280 578-92-3-211

2B9-288 578-92-3-211

2B9-296 578-92-3-211

2B9-606 578-92-3-211

2B9-607 578-92-3-211

2B9-611 578-92-3-211

2B9-614 578-92-3-211



2B10-226 578-92-3-250

2B12-300 578-92-3-309

2B12-304 578-92-3-309

2B12-305 578-92-3-310

2B12-307 578-92-3-309

2B12-309 578-92-3-309

2B12-313 578-92-3-309

2B12-317 578-92-3-310

2B12-318 578-92-3-309

2B12-319 578-92-3-309

2B12-320 578-92-3-309

2B12-324 578-92-3-310

2B12-340 578-92-3-309

2B12-345 578-92-3-315



Product Images

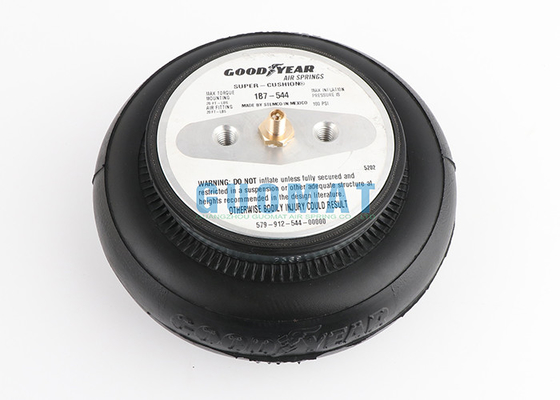

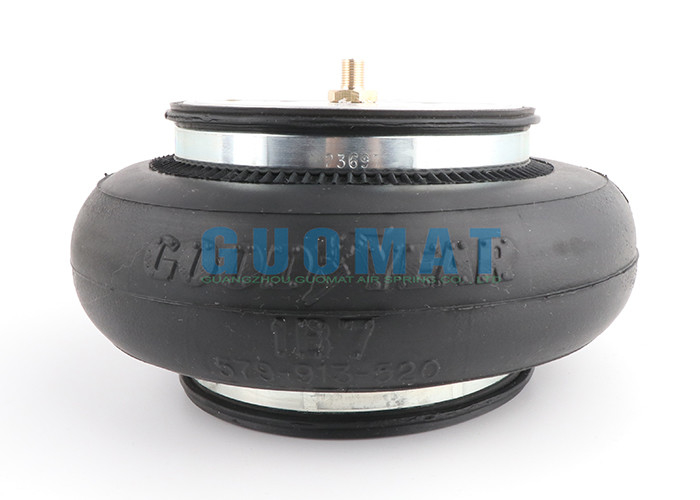

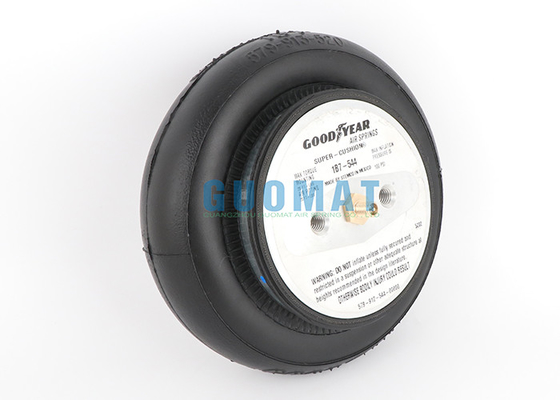

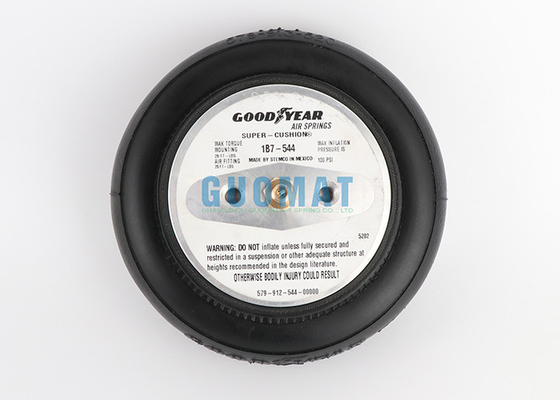

1B7-544 Goodyear Single Convoluted Air Spring Bellows NO. 579 912 544 For Vibrating Screen 0
