| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 12X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-199.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Quality: | 100 % Tested |
| Firestone No.: | W01R584061 | Dunlop No.: | 12''X2 |
| Dunlop: | SP1541 | Flange Ring: | With |
| High Light: | W01-R58-4061 Firestone Air Spring,Dunlop Pneuride Firestone Air Spring,SP1541 Industrial Air Bag |
||

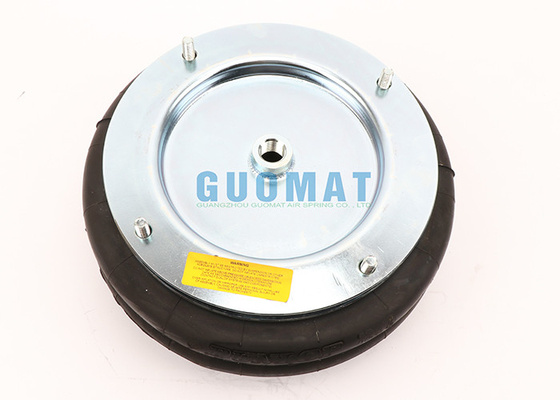

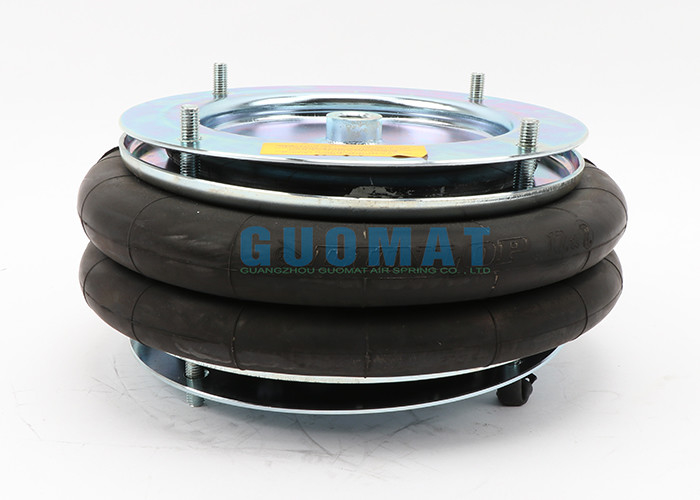

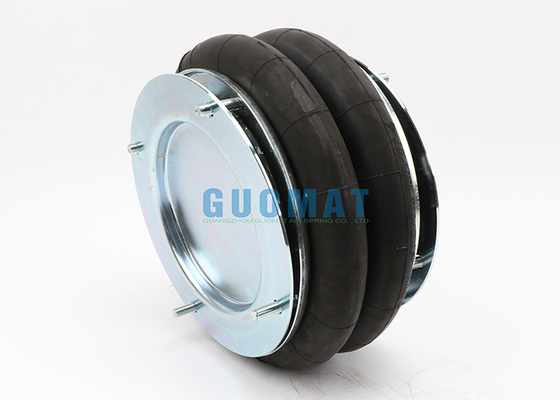

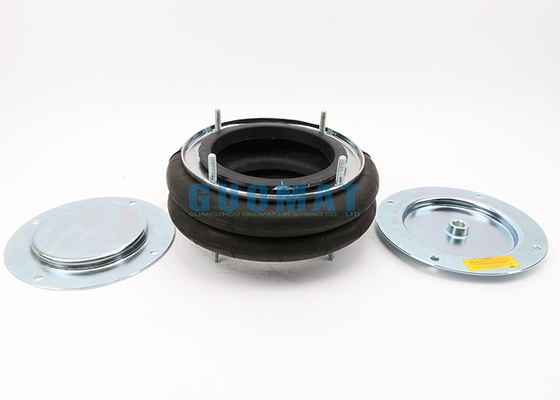

W01-R58-4061 Firestone Air Spring Dunlop Pneuride 12" x 2 / SP1541 Industrial Air Bag With Flange
Technical Data
Model Number: 12X2
Brand: DUNLOP
Product Description: Dunlop Double Convoluted Air Spring
Cover Plate Diameter: 260mm
Rubber Bellow Max Diameter: 330mm
Min.Height: 74mm
Max.Height: 240mm
Total Stroke: 166mm
Static Height: 160mm
Distance Between Studs: 232mm
Space Envelope: 345mm
Weight in kg:5.85kg
Air Inlet: 1/2 BSP
Load Necessary to obtain the minimum height without air in the bellows
|
Type |
41/2''X1 |
41/2''X2 |
41/2''X3 |
6''X1 |
6''X2 |
6''X3 |
8''X1 |
8''X2 |
91/4''X2 |
10''X1 |
10''X2 |
10''X3 |
12''X1 |
12''X2 |
12''X3 |
141/2''X1 |
141/2''X2 |
141/2''X3 |
16''X2 |
16''X3 |
|
Static height(mm) |
65 |
100 |
145 |
70 |
120 |
180 |
90 |
150 |
160 |
95 |
160 |
235 |
95 |
160 |
222 |
105 |
180 |
280 |
180 |
280 |
|
Min.height (mm) |
45 |
65 |
100 |
58 |
70 |
102 |
47 |
72 |
70 |
50 |
70 |
100 |
47 |
74 |
100 |
147 |
70 |
100 |
77 |
125 |
|
Load in daN |
12 |
15 |
20 |
15 |
20 |
12 |
13 |
14 |
12 |
12 |
11 |
77 |
10 |
10 |
81 |
9 |
9 |
86 |
9 |
65 |
Cross Reference
FIRESTONE NO. W01-R58-4061
FIRESTONE NO. W01R584061
FIRESTONE NO. W01 R58 4061
DUNLOP NO.12''X2;12X2
DUNLOP NO. SP1541
DUNLOP NO. SP 1541
CONTITECH NO.FD412-22 DS ; FD 412-22 DS
NORGREN NO. M/31122 ; M 31122 ; M31122
PARKER NO. 9109041
Firestone Part Number W01 R58 4061
Firestone Part Number 12X2
Contitech Part Number FD412-22
Contitech Part Number FD 412-22
Application
|
Scissor Lift |
|
Hopper Vibration and Damping |
|
Mechanical Handing Stop |
|
Quick Lock Device |
|
Reel Tensioning |
|
Machine Isolation |
|
Direct force |
|
Impact Absorbtion |
|
Roller Tensioning |
|
Platform Lift |
|
Short Stroke Mechanical Linkage |
|
Hot Foil Stamping Press |
Selection of Air Bellows
1. Establish the force required in N at working air pressure.
2. Divide the force required by the working air pressure in bar.
3. Select the standard stroke: always choose the next highest stroke to that required.
The Real Pictures
