Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | F-200-2 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $69.9-89.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Name: | Yokohama Shock Absorbers | Warranty: | 12 Months |
---|---|---|---|
Material: | High Quality Rubber | Usage: | Industrial Machine |
Shape: | Rolling Lobe Type | Spring Type: | Air Spring |
Keywords: | Yokohama Air Suspension | OEM No.: | S-200-R2 |
High Light: | S-200-R2 Yokohama Air Spring,Natural Rubber Yokohama Air Spring,S-200-2 Industrial Air Spring |
Natural Rubber S-200-R2 Yokohama Air Spring S-200-2 Air Isolation For Flexibility Testing Machine
Product Description
Item |
Value |
OEM Number |
S-200-R2 |
Spring Material |
Rubber |
Type |
Air Spring |
Size |
200-3 |
Warranty |
12 Months |
Application |
Various Industrial Equipment |
Packing Size | 120*260*260(mm) |
Place of Origin |
China |
The Technical Data of GUOMAT F-200-2 Double Convoluted Air Spring
Design Height(mm):98
Max Height(mm):148
Min Height(mm):53
Common Maximum Trace(mm):±35
Compression Max Outside Diameter(mm):260
Effective Area(cm2):315
Volume(L):3.2
Load(KN):15.4
Dynamic Spring Constant(n/mm):373
Natural Vibration Frequency(Hz):2.5
Maximum Internal Pressure(Mpa):0.88
Internal Pressure Failure(Mpa):2.9-3.9
Working pressure:< 0.7Mpa
Burst pressure:> 1.6Mpa
Endurance cycle:> 10"
Temperature:-35℃ ~+60℃
Japan YOKOHAMA Airbag Common Specifications are as Follows
S-120-R2 ; S-120-R3 ; R-120-R4
S-160-R4 ; S-160-R3 ; S-160-R2 ; S-160-R1
S-200-R4 ; S-200-R3 ; S-200-R2
S-220-R2 ; S-220-R3 ; S-220-R4
S-240-R1 ; S-240-R2 ; S-240-R3 ; S-240-R4
S-300-R1 ; S-300-R2 ; S-300-R3 ; S-300-R4
S-350-R1 ; S-350-R2 ; S-350-R3 ; S-350-R4
S-400-R2 ; S-400-R3 ; S-400-R4 ; S-400-R5
S-450-R1 ; S-450-R2 ; S-450-R3 ; S-450-R4 ; S-450-R5
S-500-R2 ; S-500-R3 ; S-500-R4 ; S-500-R5
S-550-R2 ; S-550-R3
S-600-R1 ; S-600-R2 ; S-600-R3 ; S-600-R4 ; S-600-R5
Advantages of Punch Air Spring Shock Absorption
1. The air spring of the punch press has excellent anti-shock and noise reduction performance. The natural frequency of the shock absorber is 3Hz~5Hz, and the damping coefficient is 0.12~0.13. Low natural frequency design, good anti-vibration effect.
2. GUOMAT punch press air spring has higher stability and safety. The air spring of the punch press is mainly designed with natural rubber as the main body to eliminate the adverse effects caused by false contact and ensure the stability and safety of the product during use.
3. The air spring of GUOMAT punching machine has strong versatility, and it can be easily installed on machines of different specifications. Suitable for shock equipment vibration, many equipment can be applied.
4. The air spring level adjustment of GUOMAT punch press is very convenient. It is very simple to adjust the level of the machine just by inflating and deflating the air.
5. GUOMAT punch air spring is easy to install and maintain.
What Services Can We Provide?
Accepted Delivery Terms: CIF,EXW,FOB... |
Accepted Order: Sample Order; Wholesale Order |
Accepted Payment Currency:USD,EUR,CNY |
Accepted Payment Type: T/T,L/C,PayPal,Western Union |
Language Spoken:English,Chinese |

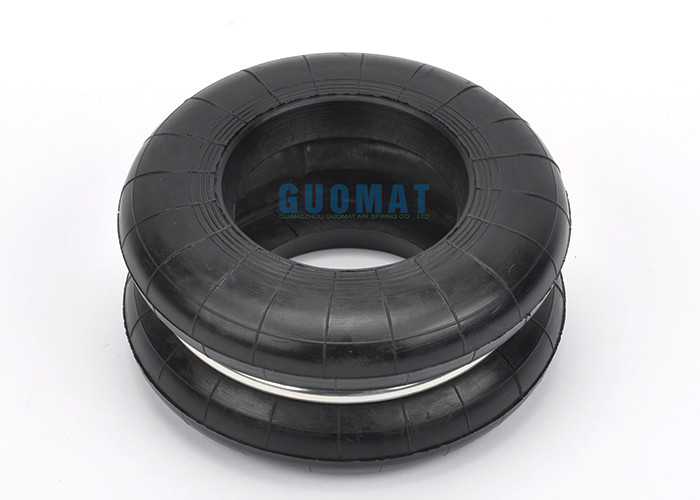

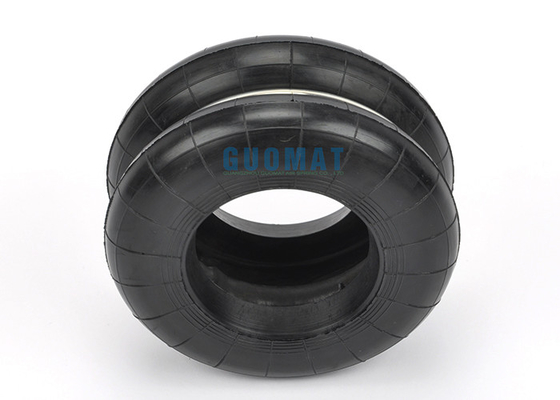

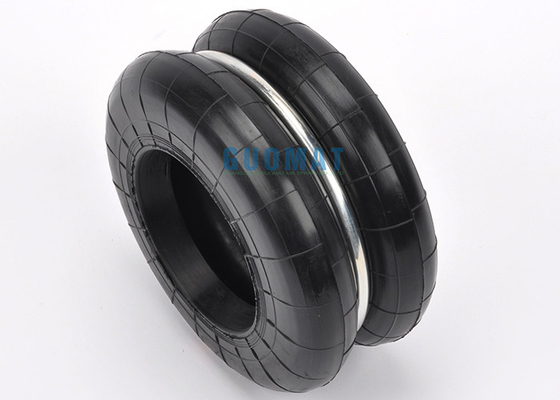

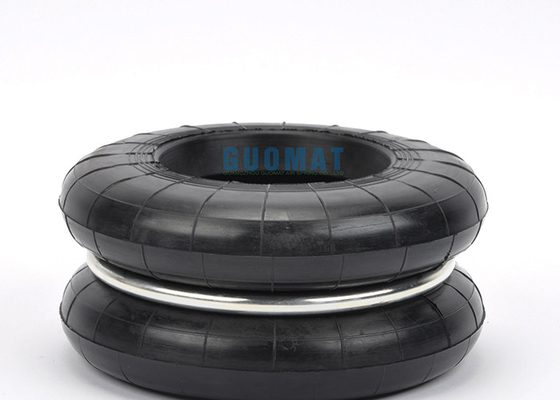

The Real Pictures of YOKOHAMA Air Spring
