Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B7994 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $69.9-79.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Warranty: | 12 Months | Material: | High Quality Rubber |
---|---|---|---|
Usage: | Industrial Machine | Shape: | Convoluted Type |
Spring Type: | Air Spring | Firestone: | W01-358-7994 |
Contitech: | FT 330-29 546 | Goodyear: | 3B12-328 |
High Light: | W01-358-7994 Rubber Air Spring,3B12-328 Rubber Air Spring,3B12-328 Goodyear Industrial Air Spring |
W01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air Spring
Product Description
Firestone Part Number: W01-358-7994
Firestone Part Number: W013587994
Firestone Part Number: W01 358 7994
Contitech Part Number: FT 330-29 546
Contitech Part Number: FT330-29 546
Contitech Part Number: FT 330-29546
Contitech Part Number: 64572
Goodyear Part Number: 3B12-328
Goodyear Part Number: 3B 12-328
Goodyear Part Number: 3B12 328
Triangle Part Number: 4546
Triangle Part Number: 6364
Watson&chalin | AS-0019-F |
Euolid/meritor After Market | E-FS7994 |
3B7994 Triple Bellow Air Spring Technical Data
♦Cover Plate
Top Cover Plate Diameter: Ø231mm
Bottom Cover Plate Diameter: Ø231mm
♦Combo Stud/Bolt
Combo Stud: 1/4NPTF
Combo Stud: 3/4-16UNF
Threaded Hole of Top Cover Plate: 3/8-16UNC
Threaded Hole of Bottom Cover Plate: 2X3/8-16UNC
Combo Stud and Threaded Hole Center Distance of Top Vover Plate: 140mm
Distance Between Threaded Holes of Bottom Cover: 157.5mm
♦Rubber Bellow
Rubber Bellow Max Diameter: 330mm MAX.OD
Rubber Bellow Max Height: 460mm
Rubber Bellow Min Height: 160mm
The Working Stroke: 330mm
What is an air spring
Air springs are the only load support products that provide both leveling capability and ride comfort. Only air springs can give you load support that can be adjusted to your specific load. Fill up when driving with a full load to keep your vehicle level for a safer, more comfortable ride. Bleed the air springs for the best ride quality when riding unladen.
Benefits of Air Springs
1. Eliminate squats
2. Reduce Braking and Poor Steering
3. Eliminate bumpy rides
4. Eliminate Poor Headlight Aiming
We proudly offer the highest quality replacement air springs that exceed OEM requirements.
Firestone | Contitech | Goodyear | Triange |
W01-358-7995 | FT330-29 547 | 3B12-329 | 4757 |
W01-358-7938 | 64573 |
| 4703 |
W01-358-7996 | FT330-29 520 | 3B12-335 | 6334/4520 |
W01-358-8006 | FT330-29 430 | 3B12-304 | 6334/4430 |
W01-358-8008 | FT330-29 431 | 3B12-300 | 6334/4431 |
W01-358-8010 | FT330-29 432 | 3B12-301 | 6334/4432 |
W01-358-8016 | FT330-29 433 |
| 6334/4433 |
W01-358-8025 | FT330-29 469 | 3B12-300 | 6334/4469 |
W01-358-8027 | FT330-29 466 | 3B12-310 | 6334/4466 |
W01-358-8030 | FT330-29 498 | 3B12-304 | 6334/4432 |
w01-358-7808 | FD330-22 364 | 2B12-313 | 6319/4336 |

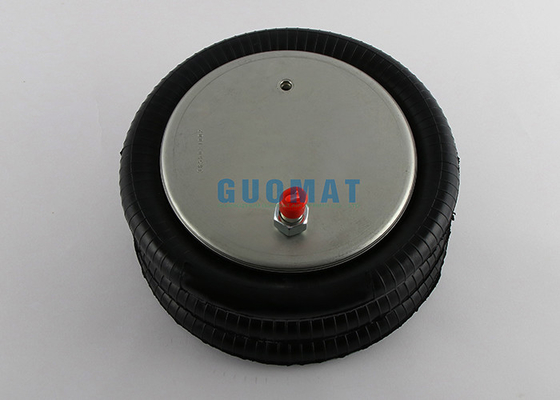

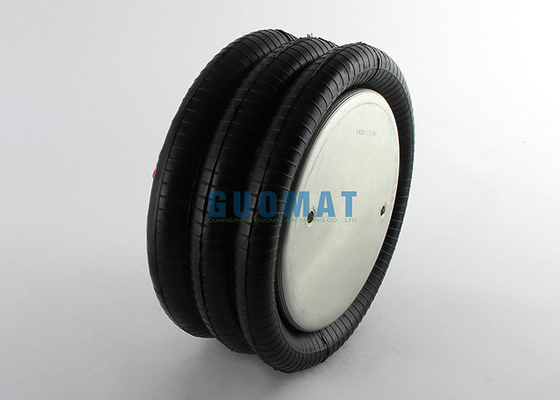

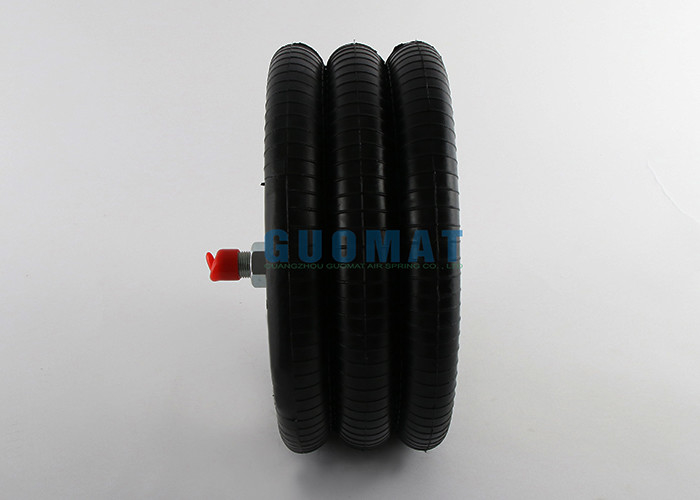

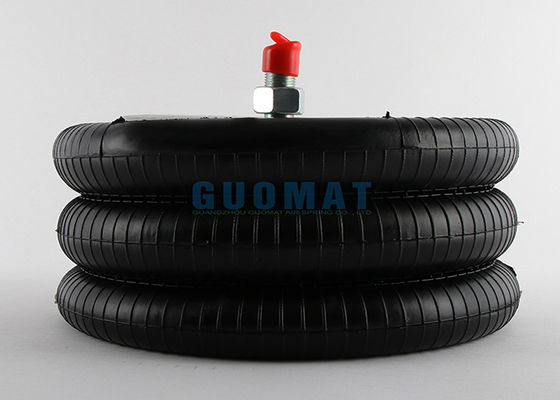

The Real Pictures
