| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS310-12 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Contitech Industrial Air Spring | Manufacturer: | Contitech |
|---|---|---|---|
| Warranty: | 12 Months | Material: | Rubber |
| Function: | Reduce Shock | OEM No.: | FS 310-12 |
| Spring Type: | Single Convoluted Air Bag | MOQ: | 10 Pieces |
| High Light: | FS 310-12 Single Convoluted Air Actuators,Contitech Rubber Single Convoluted Air Actuators,ECO Single Convoluted Air Actuators |
||
FS 310-12 ECO Single Convoluted Air Actuators Contitech Rubber Air Spring Vibration Isolators
Product Description
FS310-12 Contitech Air Spirng Cross Reference Number
Contitech Part Number: FS310-12
Contitech Part Number: FS310-12 DS
Contitech Part Number: FS 310-12 DS
Contitech Part Number: FS 310-12 1/2 M10
Contitech Part Number: FS 310-12 DS G1/2
Contitech Part Number: FS310-12 DS 1/2 M10
Contitech Part Number: FS 310-12DS G1/2 M10
FS 310-12 Replacement for Phoenix 1 B20
FS 310-12 ECO Replacement for Phoenix 1 B20-4
Technical Data of FS310-12 Single Convoluted Air Bags
|
Min.pressure: 0 bar |
|
Max. lifting Pressure: 8 bar |
|
Return force to min.height: ≤120N |
|
Min. Height: 55mm/5.5cm |
|
Max. Stroke: 120mm/12cm |
|
Ma. Diameter: 320mm/32cm |
|
Installation Space Needed: 335mm/33.5cm |
|
Bead Diameter: 172mm/17.2cm |
|
Inner Sealing and Mounting Surface: 131mm/13.1cm |
|
Height of Bead: 11mm/1.1cm |
|
Max. Loading Capacity(7bar / 115mm): 26.8kN |
Advantages of Air Springs
♦Good isolation and shock absorption ability
Air shock isolators can provide the best degree of isolation and shock absorption that any other shock absorber can't match. Lower natural frequencies can be provided by attaching an external gas storage device.
♦Precise height control
Air springs use internal air pressure to adjust the ride height. The air spring does not create friction with other components. Automatic adjustment of system pressure ensures a stable operating height in the event of capacity changes.
♦Good horizontal stability
Air springs provide good horizontal stability.
♦Effectively reduce noise
Air springs reduce structure-borne noise, and since they do not have the vibrations found in ordinary coil springs, they do not generate noise of their own
Pay Attention to the Use of Air Springs
1. Do not use the air spring beyond the recommended safe extension height
2. In order to prolong the life of the air spring, do not use the air spring at the lowest compression height
3. Do not use the air spring under the pressure exceeding 0.7Mpa
4. Do not use the air spring in a twisted state
About Us
---------Guangzhou Guomat Air Spring Co.,Ltd.
| 1 | We always focus on developing automotive components and providing you with quality products and competitive prices. |
| 2 | If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know |
| 3 |
We are looking forward to establishing business with you. |
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

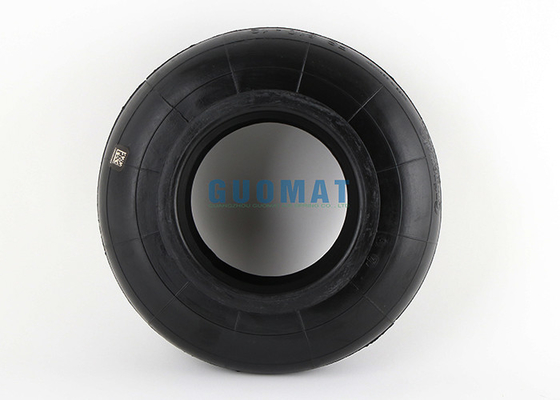

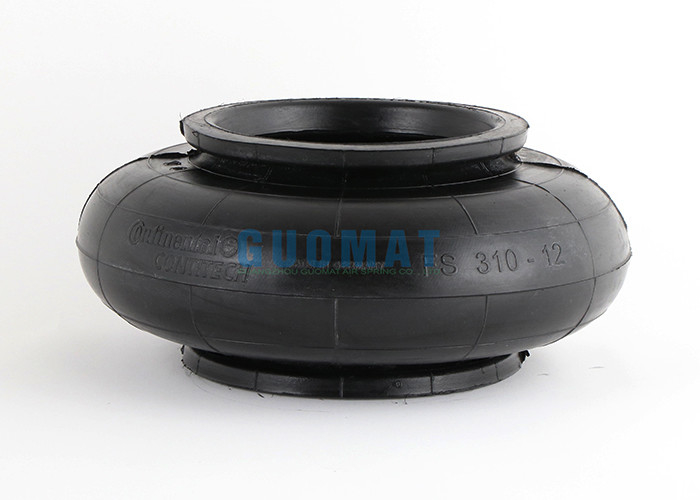

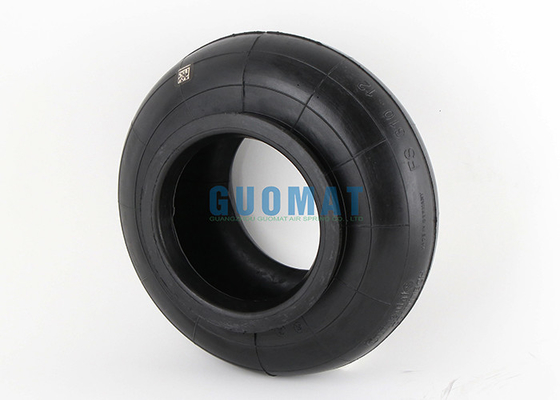

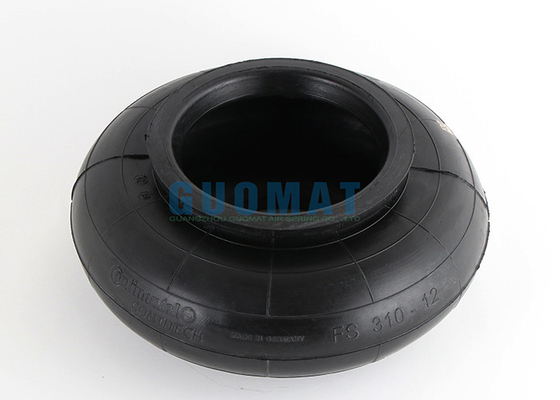

The Real Pictures
