| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B120-19 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Quality: | 100 % Tested |
| Contitech: | FD 120-19 | Screw Tooth: | 2 Pcs X M8X1.25 |
| Color: | Black | Air Inlet: | G3/4 |
| High Light: | Contitech FD120-17 Continental Air Bellow,Continental Air Bellow Double Convoluted,Double Convoluted Continental Air Bellow |
||
Contitech FD120-17 Continental Air Bellow Double Convoluted Air Spring For Printing Press
Product Description
|
Part Number |
FD120-17 CI |
|
Manufacturer |
CONTITECH |
|
Manufacturer Warranty |
12 Months |
|
Main Material |
Natural Rubber |
|
Weight |
2.5KG |
|
Packing Size |
24*24*24CM |
|
Cover Plate Dia. |
135mm |
|
Screw Center Distance |
70mm |
|
Gas Hole |
G3/4 |
|
Rubber Bellow Dia. |
215mm Max.OD |
|
Screw (Nut) |
M8X1.25 |
|
Number of Screw(Nut) |
4 Pieces |
|
The Natural Height |
167mm |
|
The Stroke |
75mm-230mm |
OEM Number
CONTITECH Part Number: FD120-17
CONTITECH Part Number: FD 120-17
BOSCH Part Number: 822419042
DUNLOP(FR) Part Number: SO8201
FESTO Part Number: EB-215-155
GOODYEAR Part Number: 2B 7-540
GOODYEAR Part Number: 2B7-540
NORGREN Part Number: PM/31082(8X2)
PIRELLI Part Number: T2684181
TAURUS KF Part Number: 218
WEFORMA WBZ Part Number: 300-E1
AIRKRAFT Part Number: 113053
CONTITECH Bellow Number: 603N
FIRESTONE FLEX Bellow Number: 26
FIRESTONE Bellow Number: W01-358-0142
PHOENIX Bellow Number: 2B O7R
AIRKRAFT Bellow Number: 114050
Double Convolution Bellows
|
Contitech No. |
Max.diameter(mm) |
Max.stroke(mm) |
Min.height(kN) |
Max.stroke(kN) |
Standrad air inlet |
|
Force with p=8 bar |
|||||
|
FD 40-10 CI |
145 |
100 |
7.4 |
2.5 |
G1/8 |
|
FD 70-13 CI |
165 |
128 |
11.6 |
2.6 |
G1/4 |
|
FD 110-15 CI |
203 |
156 |
16.5 |
2.9 |
G3/4 |
|
FD 120-17 CI |
215 |
155 |
18.0 |
6.3 |
G3/4 |
|
FD 120-20 CI |
218 |
193 |
19.6 |
6.6 |
G3/4 |
|
FD 200-19 CI |
250 |
200 |
26.1 |
5.7 |
G3/4 |
|
FD 200-22 CI |
255 |
218 |
26.2 |
7.0 |
G3/4 |
|
FD 200-25 CI |
260 |
248 |
25.4 |
8.2 |
G3/4 |
|
FD 330-22 CI |
325 |
230 |
46.4 |
14.3 |
G3/4 |
|
FD 330-30 CI |
340 |
283 |
49.0 |
13.7 |
G3/4 |
|
FD 530-22 CI |
385 |
233 |
65.5 |
21.8 |
G3/4 |
|
FD 530-30 CI |
400 |
273 |
71.2 |
21.6 |
G3/4 |
|
FD 530-35 CI |
405 |
313 |
47.8 |
21.0 |
G3/4 |
|
FD 960-22 CI |
444 |
225 |
101.0 |
37.0 |
G3/4 |
|
FD 1330-25 CI |
518 |
243 |
145.4 |
46.5 |
G3/4 |

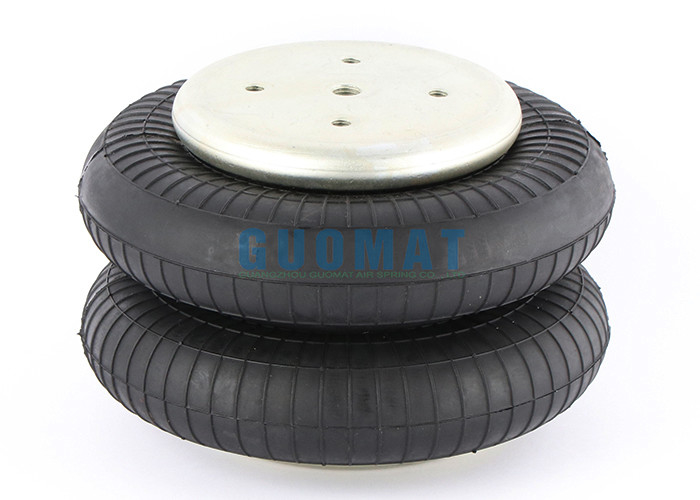

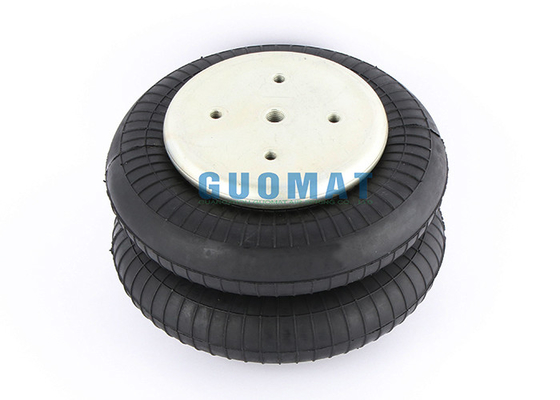

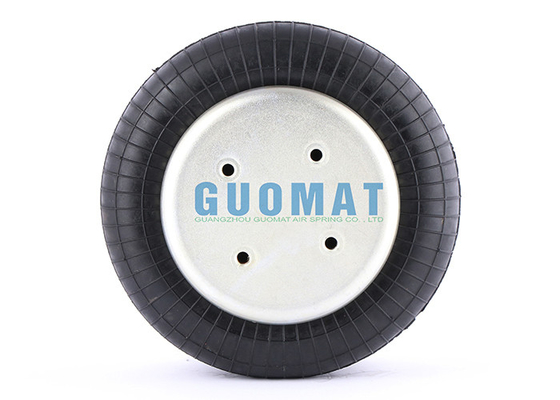

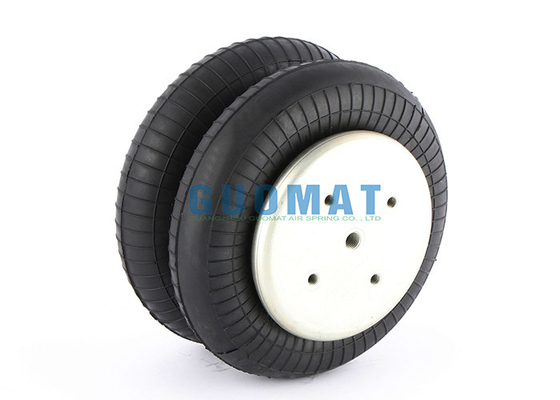

The Real Pictures
