| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD 200-25 426 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Color: | Black |
| Neway/SAF: | 90557237 | Tuthill: | 6352 |
| Ridewell: | 1003586943C | Type: | Air Balloon , Air Bag |
| High Light: | Black Firestone Airide Air Spring,Firestone Airide Air Spring W01-358-6943,Convoluted Type Firestone Airide Air Spring |
||
Firestone Airide Air Spring W01-358-6943 Convoluted Type 2B9-250 Goodyear Air Actuator
Cross Reference Number
Firestone Number: W01-358-6943
Contitech Number: FD 200-25 426
Contitech Bellows Number: 161332
Goodyear Number: 2B9-250
Goodyear Bellows Number: 578923206
Triangle Number: 6332/4426
Watson&Chalin Number: AS-0041
Neway/SAF Number: 90557237
Ridewell Number: 1003586943C
Tuthill Number: 6352
V-Steer II(Lift Bag)
Van Raden
W01-358-6943;W013586943;w01 358 6943;FD 200-25 426;FD200-25 426;2B9-250;2B 9-250;2B9 250
AS-0041;1003586943C;6352;578923206;6332
Firestone Rubber Air Spring Technical Details
|
Top Cover Plate Diameter |
160mm |
|
Bottom Cover Plate Diameter |
160mm |
|
Gas Hole / Air inlet |
1/4NPTF |
|
Rubber Bellows MAX Diameter |
262mm |
|
The Working Stroke |
MAX 325 mm to MIN 79 mm |
|
Top Cover Plate Screw (Nut) Tooth |
2X1/2-13UNC |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Top Cover Plate |
89mm |
|
Screw Center Distance of Bottom Cover Plate |
89mm |
|
Screw And Gas Hole Distance of Top Cover Plate |
44.5mm |
Air Spring
An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.
Firestone Double Convoluted Airide Spring
|
Assembly Part No. |
Description |
|
W01-M58-6160 |
Blind nuts,1/4 BSP |
|
W01-358-0025 |
Rubber Bellows only(no girdle hoop) |
|
W01-M58-6105 |
Blind nuts,1/4 BSP |
|
W01-358-0048 |
Rubber bellows only |
|
W01-M58-6400 |
Blind nuts,1/4 BSP |
|
W01-358-3407 |
Countersunk steel bead ring |
|
W01-M58-6353 |
Blind nuts,1/4 BSP |
|
W01-M58-6387 |
Blind nuts,3/4 BSP |
|
W01-358-0142 |
Rubber bellows only |
|
W01-M58-6187 |
Blind nuts,1/4 BSP |
|
W01-M58-6188 |
Blind nuts,1/4 BSP,Bumper |
|
W01-M58-6185 |
Blind nuts,3/4 BSP |
|
W01-M58-6186 |
Blind nuts,3/4 BSP,Bumper |
|
W01-M58-6990 |
Countersunk steel bead rings,40mm bolts washers |
|
W01-358-0297 |
Rubber bellows only |
|
W01-M58-6192 |
Blind nuts,1/4 BSP |
|
W01-M58-6190 |
Blind nuts,3/4 BSP |
|
W01-M58-6183 |
Blind nuts,1/4 BSP |
|
W01-M58-6194 |
Blind nuts,3/4 BSP |
|
W01-M58-6880 |
Countersunk steel bead rings,40mm bolts |
|
W01-358-0305 |
Rubber bellows only |
|
W01-M58-6381 |
Blind nuts,1/4 BSP |
|
W01-M58-6382 |
Blind nuts,1/4 BSP,bumper |
|
W01-M58-6200 |
Blind nuts,3/4 BSP |

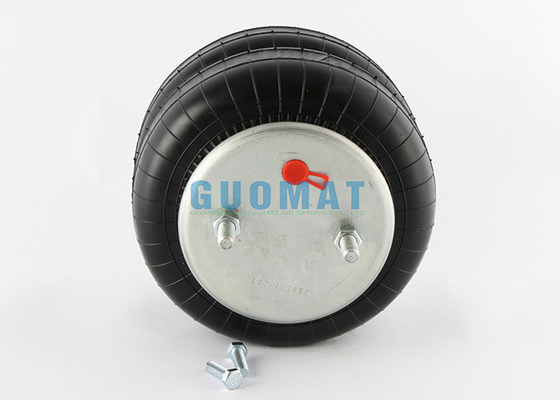

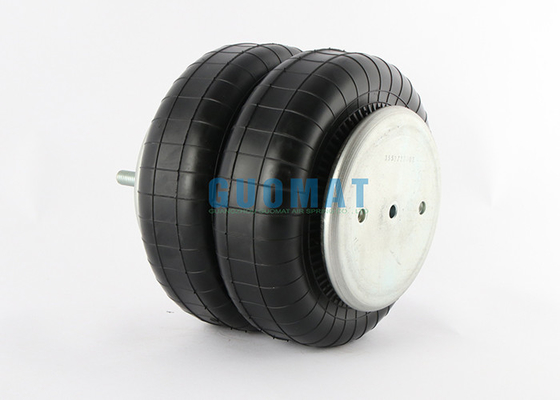

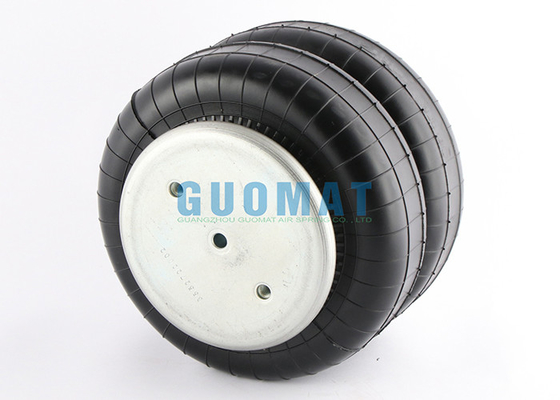

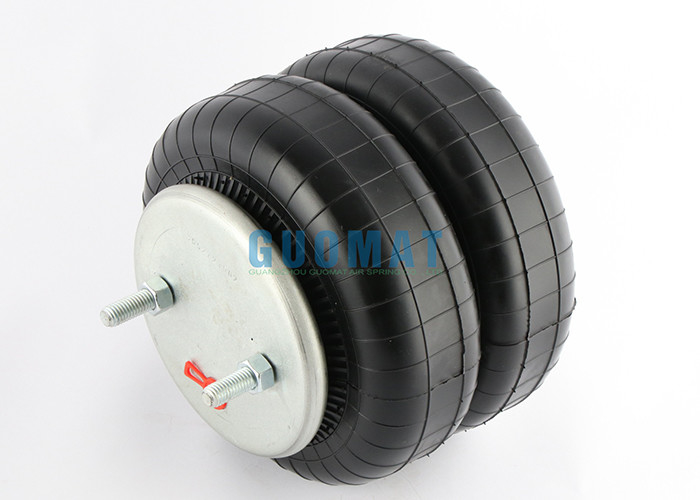

The Real Pictures
