| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS120-9 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Metal+Rubber |
|---|---|---|---|
| Function: | Reduce Shock | Quality: | 100% Tested |
| Compatibility: | W01 M58 6165 | Product: | Industrial Air Spring |
| Type: | Air Suspension Spring | MQO: | 10 PCS |
| High Light: | Single Convoluted Rubber Trailer Air Spring,W01-M58-616 Rubber Trailer Air Spring,Industrial Air Spring W01-M58-6165 |
||
Single Convoluted Rubber Trailer Air Spring Firestone W01-M58-6165 Norgren PM/31081 For Industrial
Product Description
Product: For Industrial Air Spring Reduce Shock
Spring Material: Rubber/Metal
Warranty: 12 Months
Air Spring: Air Vibration Industrial
Single Packing Size: 24*24*24(cm)
Weight: 2.0kg
Firestone: W01-M58-6165
Contitech: FS120-9
Norgren: PM/31081
Cross Reference Informatio
|
Firestone |
W01 M58 6165 |
Firestone |
W01M586165 |
|
Contitech |
FS120-9 |
Contitech |
FS 120-9 |
|
Dunlop(FR) |
8''X1 S08101 |
Bosch |
822419003 |
|
Festo |
EB-215-80 |
Norgren |
PM 31081 |
|
Norgren |
8X1 |
Weforma |
WBE 300-E1 |
|
Airtech |
140293 |
Airtech |
111003 |
|
Airtech |
1B-190FB |
Megatech |
1S120-9 3/4 M8 |
|
Firestone |
W01-M58-6166 |
Firestone |
W01M586166 |
|
Firestone |
W01 M58 6166 |
Contitech |
FS120-9 |
|
Dunlop(FR) |
8''X1 S08100 |
Bosch |
822419008 |
|
Weforma |
WBE300-E2 |
Weforma |
WBE 300-E2 |
Firestone W01-M58-6165 Air Spring Technical Data
1.Top Cover Plate Blind Nut: M-8X1.5,15mm deep
2.Screw Center Distance of Top Cover Plate: 70mm
3.Top Cover Plate Diameter: 135mm
4.Air Inlet: G3/4
5.Bottom Cover Plate Blind Nut: M-8X1.5,15mm deep
6.Screw Center Distance of Bottom Cover Plate: 70mm
7.Bottom Cover Plate Diameter: 135mm
8.Rubber Bellows MAX Diameter: 215mm
9.The Working Stroke: MAX 115mm to MIN 50mm
10.Maximum Height: 115mm
Air Inlet: G1/4
Force Table(Use for Air Spring Design)
| Assembly Height(mm) | Volume @7BAR (cu cm) | EFF Area @7 BAR (cm2) | kN Force | ||||
| @3 BAR | @4 BAR | @5 BAR | @6 BAR | @7 BAR | |||
| 130 | 2635 | 110 | 2.86 | 4.04 | 5.17 | 6.51 | 7.71 |
| 120 | 2506 | 138 | 3.75 | 5.20 | 6.60 | 8.20 | 9.65 |
| 110 | 2341 | 163 | 4.54 | 6.22 | 7.86 | 9.70 | 11.38 |
| 100 | 2164 | 183 | 5.20 | 7.07 | 8.92 | 10.95 | 12.82 |
| 90 | 1956 | 201 | 5.75 | 7.84 | 9.84 | 12.04 | 14.07 |
| 80 | 1745 | 215 | 6.19 | 8.45 | 10.59 | 12.91 | 15.08 |
| 70 | 1509 | 228 | 6.54 | 8.91 | 11.18 | 13.64 | 15.92 |
| 60 | 1280 | 236 | 6.82 | 9.20 | 11.58 | 14.17 | 16.55 |
Every standard air spring consists of 4 layers
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.

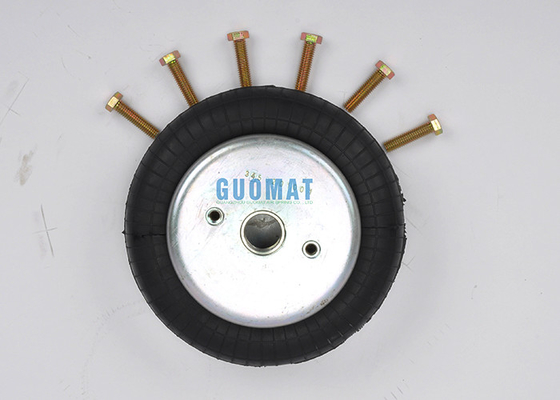

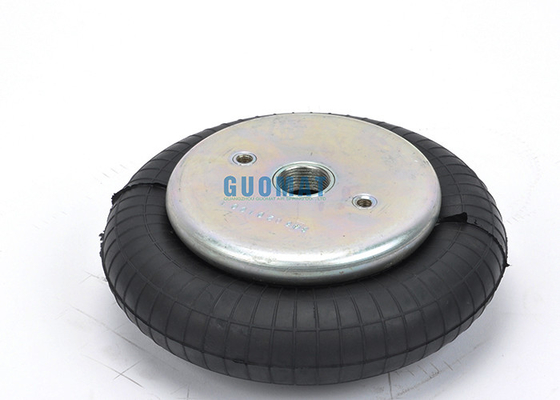

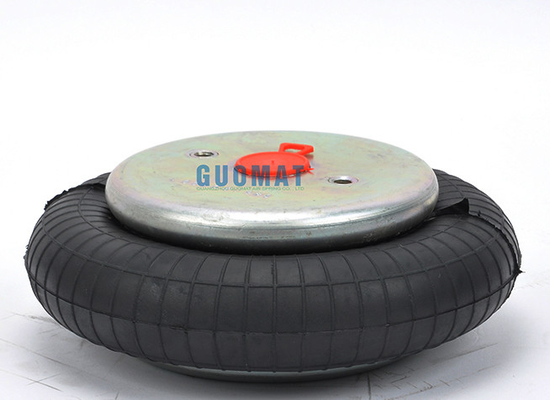

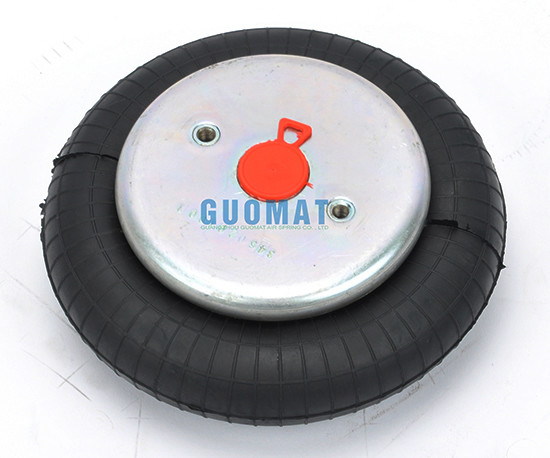

The Real Pictures
