| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 200-10 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Metal+Rubber |
|---|---|---|---|
| Quality: | 100% Tested | Type: | Air Suspension Spring |
| Sample: | Available | Condition: | Brand-New |
| Package: | Cartons | Air Inlet: | G3/4 |
| High Light: | Industrial Rubber Air Bellow,W01-M58-6374 Rubber Air Bellow,SP1B12 Rubber Air Bellow |
||
For Industrial Rubber Air Bellow Firestone W01-M58-6374 SP1B12 Phoenix Air Ride Spring
Product Description
|
Single Firestone Suspension Spring Technical Data |
|
|
♦Nut/Blind Nut |
|
|
Top Cover Plate Screw (Nut) Tooth |
2XM8X1.25 |
|
Screw and Air Inlet Distance of Top Cover Plate |
38mm |
|
Screw Center Distance of Top Cover Plate |
89mm |
|
Bottom Cover Plate Screw (Nut) Tooth |
2XM8X1.25 |
|
Screw Center Distance of Bottom Cover Plate |
89mm |
|
♦Gas Hole / Air inlet / Air Fitting |
|
|
Gas Hole / Air inlet |
G3/4 |
|
♦Cover Plate |
|
|
Top Cover Plate Diameter |
160mm |
|
Bottom Cover Plate Diameter |
160mm |
|
♦Rubber Bellow |
|
|
Rubber Bellows Natural Diameter |
220mm |
|
Natural Height |
110mm |
Reference Number
Firestone Air Spring W01-M58-6374
Contitech Air Spring FS 200-10
Phoenix Air Spring SP 1B 12
Dunlop(FR) Air Spring 9'' 1/4 S09101
Bosch Air Spring 822419004
Festo Air Spring EB-250-85
Norgren Air Spring P/M31091(8 1/4 X1)
W01 M58 6374
W01M586374
FS200-10
FS 200-10
SP1B12
SP 1B12
9''1/4X1
S09101
822419004
EB-250-85
PM/31091
PM 31091
PM31091
8 1/4 X1
8'' 1/4 X1
Rubber Air Spring
An air spring is a carefully designed rubber/fabric bellows containing a compressed air column. The rubber bellows itself does not provide force or support load. The column of air does this.
Firestone air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard two-ply air spring bellows is actually made up of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric-reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at a specific bias angle to the first ply).
d. An outer cover of calendered rubber.
Our air springs are also available in high-strength construction for higher pressures. In this case, there are either four plies of fabric-reinforced rubber or two plies of special high-strength cord, with an inner liner and outer cover.
Firestone Convoluted Air Spring
AIR INLET
1/4 BSP parallel is standard. 3/4 BSP parallel is also available for most parts.
BLIND NUT
M8 x 1.25 — 6H x 15 mm deep (two or four per plate depending on part size). Used for mounting the part.
UPPER BEAD PLATE
(9 gauge carbon steel, 4 mm approx). Permanently crimped to bellows to form an airtight assembly which allows for leak testing before the unit leaves the factory. Zinc/chromate plated for rust protection.
GIRDLE HOOP
Wire wound type is shown, molded into the bellows.
BELLOWS
The wall gauge is approximately 6 mm.
LOWER BEAD PLATE
Usually the same as the upper bead plate, except without air inlet.

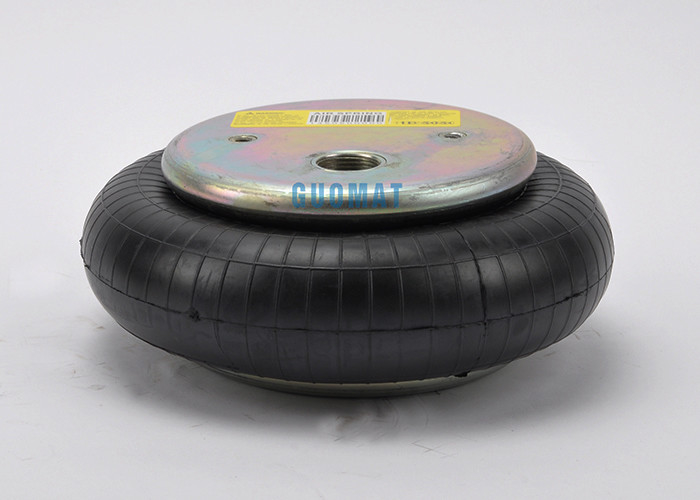

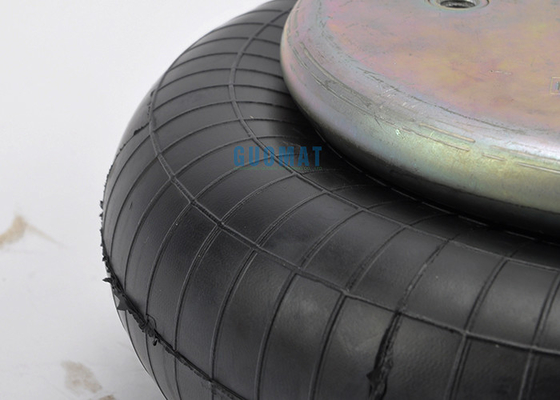

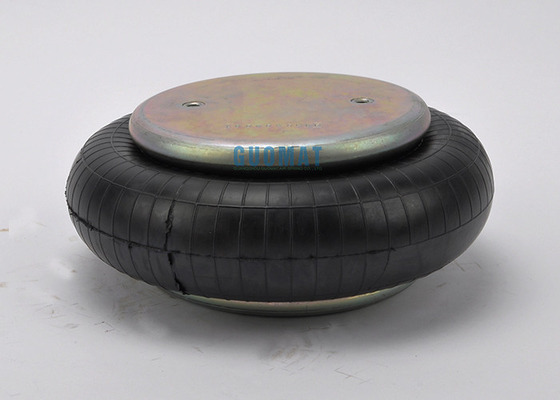

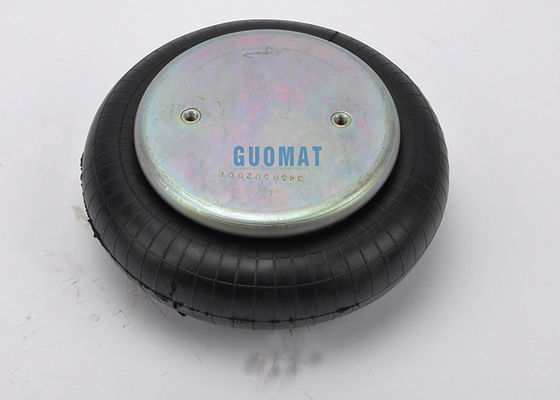

The Real Pictures
