| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6926 |
| Price: | $59.9-69.9/pc |
|---|---|
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Minimum Order Quantity: | 10 Pieces | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Function: | Reduce Shock |
| Color: | Black | Application: | For Industrial Machine |
| Operation: | Gas-filled | LOGO: | GUOMAT/Customized |
| High Light: | W01-358-6926 Firestone Air Spring,Firestone Air Spring Dual Convoluted,FD200-19 Firestone Air Spring |
||
Gas Filled Double Convoluted W01-358-6926 Firestone Air Spring FD200-19 504 Contitech Air Bellows
Product Description
|
Part Number |
2B6926 |
|
OEM |
W013586926/FD200-19 504 |
|
Material |
Rubber+Steel |
|
Warranty |
12 Months |
|
MOQ |
10 Pieces |
|
Price |
Negotiable price |
|
Trade Terms |
FOB;EXW;CNF;CIF |
|
Working Tempreature |
-40°C bis +70°C |
|
Product Weight |
3.5KG |
|
Packing Size |
24*24*24CM |
Original Equipment Manufacturer Reference Number
|
Firestone |
W01-358-6926 |
Firestone |
W013586926 |
|
Firestone |
W01 358 6926 |
Contitech |
FD200-19 504 |
|
Contitech |
FD 200-19 504 |
Contitech |
161299 |
|
RR Load |
LS20 |
Double Convoluted Type Air Spring Data Sheet
|
Stroke |
95mm-274mm |
|
Max. Extended Height |
274mm |
|
Natural Diameter |
224mm |
|
MAX Diameter |
251mm |
|
Gas Hole |
1/4NPTF |
|
Threaded Hole |
3/8-16UNC |
|
Number of Threaded Hole |
4 PCS |
|
Threaded Hole Center Distance |
89mm |
|
Distance Between Threaded Hole and Gas Hole |
38mm |
|
Note on operating and pilot medium |
Lubricated operation not possible |
|
Ambient Temperature |
-40 °C ... 70 °C |
|
Type of mounting |
Via female thread |
|
Product weight |
3.5kg |
Specific Uses of Air Spring
The air spring has nonlinear characteristics, and its stiffness changes with the load, so its natural frequency remains almost unchanged under any load; it has good high-frequency vibration absorption and sound insulation performance; it can bear axial load and radial load at the same time. Different bearing capacities can be obtained by adjusting the internal pressure. Therefore, it can meet the needs of various loads.
Because air springs have so many advantages, air springs are widely used in equipment vibration isolation in industrial machinery, such as precision mechanical equipment and precision testing equipment, such as presses, air compressors, centrifuges, vibrating conveyors, control hammers, Foundry machinery and textile machinery, optical and laser instruments, integrated circuits, ultra-precision machine tools, etc.
With the development of society, people have higher and higher requirements for life (including reducing the interference of vibration and noise) and the phenomenon of air spring damage, so air springs are installed on industrial equipment. Field application shows that air spring has better buffering effect and longer service life than steel compression spring, which can improve equipment efficiency and prolong equipment service life
Advantages of GUOMAT Air Springs
1. Made of high-quality materials
2. Competitive price
3. Effectively reduce vibration
4. Easy to install on site
5. Comfortable and stable
6. Long life
7. Solve abnormal noise

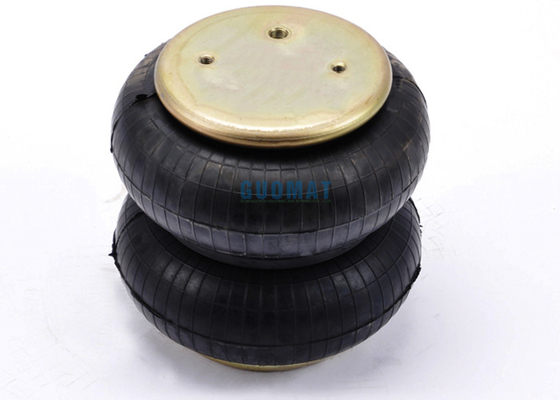

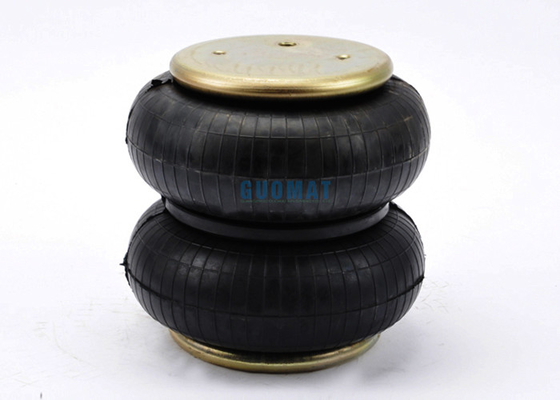

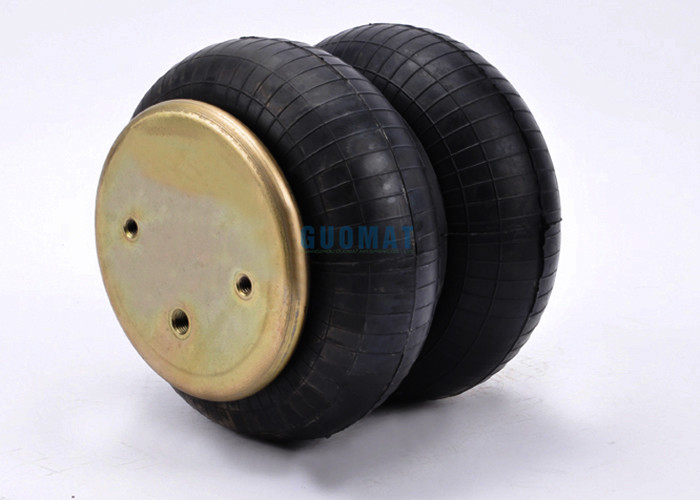

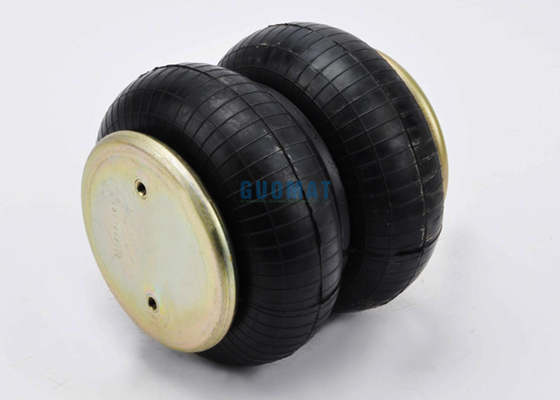

The Real Pictures
