| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7180 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Brand: | GUOMAT/Customized | Sample: | Available |
| Firestone: | W01-358-7180 | Contitech: | FD 330-22 363 |
| Triangle: | 6316/4363 | SAF Holland: | 57007180 |
| High Light: | Double Bellow Air Spring,Double Bellow Air Spring 2B12-425,Industrial Double Bellow Air Spring |
||
Goodyear Double Bellow Air Spring 2B12-425 FD330-22 363 Contitech Industrial Rubber Air Bag
Product Description
Air spring: rubber air spring; air vibration isolator; pneumatic actuator; air bag, air bag cylinder, leather bag cylinder, etc.
The air spring is a convoluted structure, and the number of convoluted capsules is usually 1 to 3 convoluted capsules, but it can also be designed and manufactured into sleeve type, membrane type, and belt type air springs according to needs, and the two capsules can also be combined under certain conditions. Type air springs are superimposed for use.
Air springs are widely used in self-adjusting air suspensions of commercial vehicles, buses, rail vehicles, machinery and equipment and building foundations.
Material: Ruuber + Steel
Warranty: 12 Months
MOQ: 10 Pieces
Packing Size: 24*24*24(cm)
Type: Industrial Air Spring
Color: Black
Number of Convolution: 2
Goodyear 2B12-311 Technical Data
|
Top Cover Plate Diameter |
231mm |
|
Bottom Cover Plate Diameter |
231mm |
|
Gas Hole / Air inlet |
1/4 NPTF |
|
Rubber Bellows MAX Diameter |
325mm |
|
The Working Stroke |
MAX 305 mm to MIN 81 mm |
|
Top Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
| Center Distance Between Air Inlet and Nut | 73mm |
|
Screw Center Distance of Top Cover Plate |
157mm |
|
Screw Center Distance of Bottom Cover Plate |
157mm |
Original Equipment Manufacturer Number
|
Firestone |
W01-358-7180 |
Firestone |
W013587180 |
|
Firestone |
W01 358 7180 |
Firestone |
W01-358-7122 |
|
Firestone |
W01 358 7122 |
Firestone |
W013587122 |
|
Contitech |
FD330-22 363 |
Contitech |
FD 330-22 363 |
|
Goodyear |
2B12-425 |
Goodyear |
2B 12-425 |
|
Goodyear |
2B12-311 |
Goodyear |
2B 12-311 |
|
Goodyear |
578923309 |
Goodyear |
578-92-3-309 |
|
Triangle |
6316 |
Triangle |
4363 |
|
Airkraft |
115061 |
Airkraft |
3B-356 |
Vibracoustic: VSP2B22R7180
EI Ride: 8030190
Leland: Sc2075
Navistar: 1685179C1
Hendrickson: 1VA1816
Ridewell: 1003587180C
SAF Holland: 57007180
Watson&Chalin: AS01541G
Watson&Chalin: 01881F
Peerless: 055000001
Peerless: 0550 00001
Double Convoluted Air Bag-W01-358-7180 Firestone Air Spring
Price: Negotiable
Payment: You can transfer by L/C, Western Union, PayPal or TT
Delivery Time: 3-8 working days after received your payment
Shipment:1.By Sea
2.By Air
3.By Express (FedEx,DHL,UPS,EMS...)
After Sale: Our product warranty period is one year, if you find any problems after receiving the product or during use, please contact me in time, we will try our best to help you .

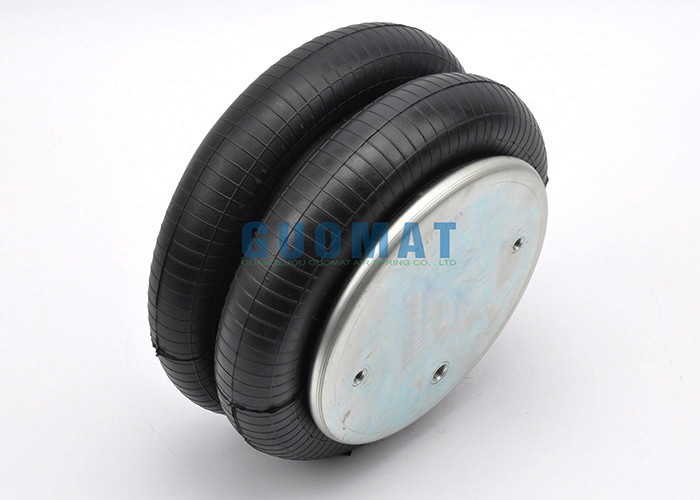

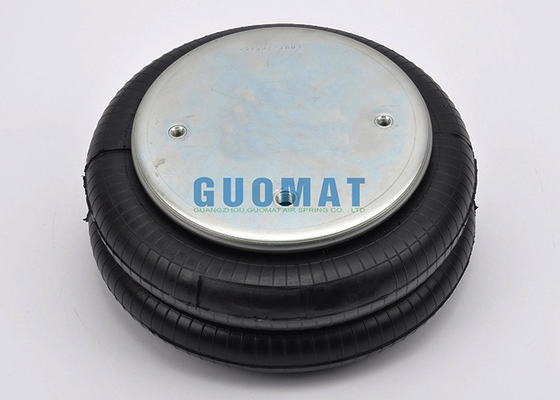

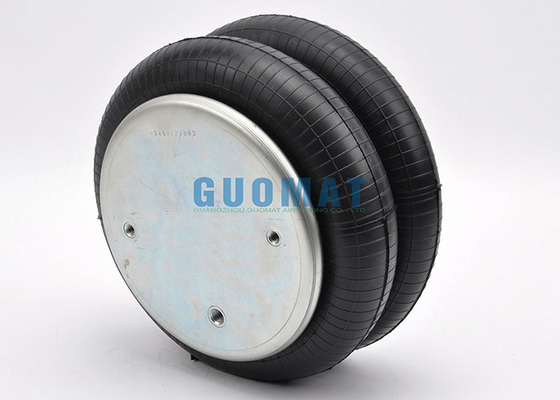

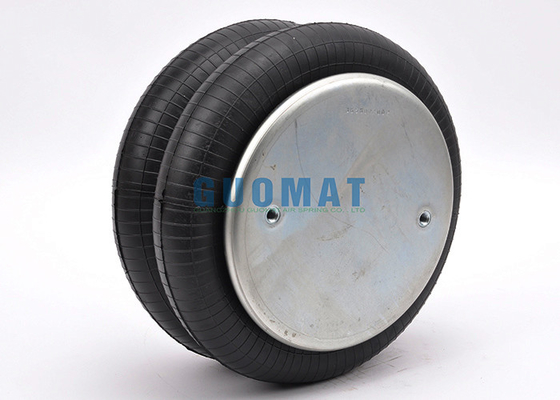

The Real Pictures
