| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1K130070 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item: | Industrial Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Metal+Rubber | Sample: | Available |
| Rubber: | High-Quality Rubber | Gas Hole: | 3/4-14NPTF |
| Pressure Ability: | 0.2-0.8 M Pa | Number Of Convolution: | 1 |
| High Light: | 1K130070 Industrial Air Spring,1B5-550 Rubber Industrial Air Spring,Goodyear Industrial Air Spring |
||

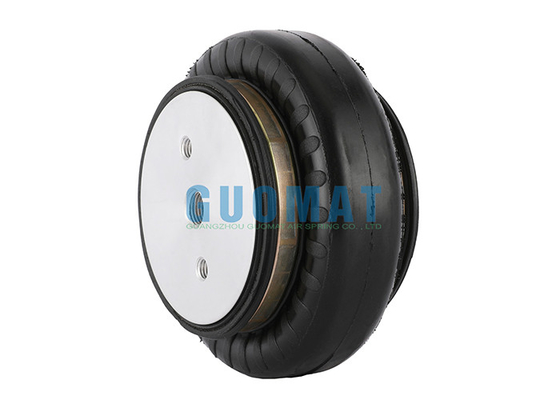

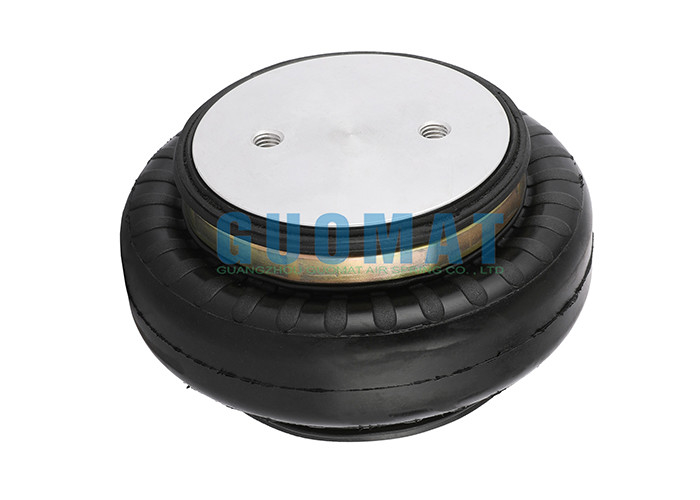

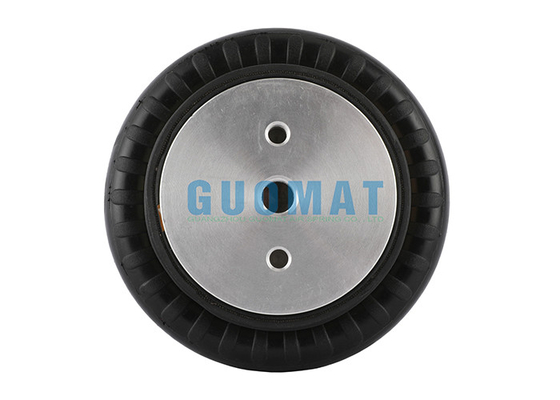

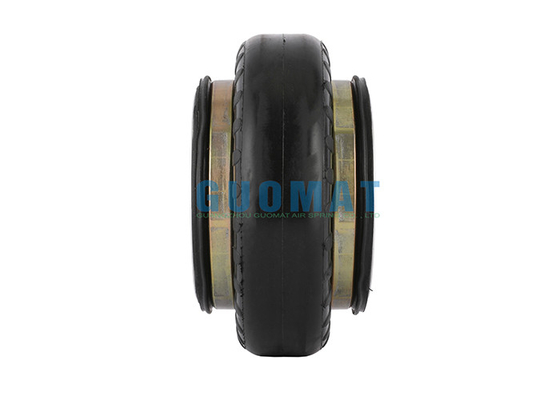

1K130070 Single Convoluted Type Air Spring Replace 1B5-550 Goodyear Industrial Rubber Air Bag
Product Description
GUOMAT No.: 1K130070
GUOMAT No.: 1K 130070
Goodyear No.: 1B5-550
Goodyear No.: 1B 5-550
1B5-550 Rubber Air Bag Technical Data
Material: High Quality Rubber
Cover Plate Material: Aluminum
Net Weight: 0.85 KG
Port Size: G1/4
Cylinder Type: Standard
Number of Convolutions: Single
MAX Diameter: 145 MM
Stroke Length: 50 MM
Maximum Working Pressure (Bar): 8
Maximum Ambient Temperature (°C): 70 ℃
Minimum Ambient Temperature (°C): -40℃
GUOMAT 1K130070 Air Isolation
It is use in a wide variety of actuation and vibration isolation.
With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.
As an actuator, Air Springs can provide either linear or angular motion.
These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze.
Single Convoluted Bellows Type
|
Part Number |
Max Stroke(in.) |
Isolator Load Range @ 100 psi (lbs.) |
Desight Height Range(in.) |
|
|
Desight Number |
Assembly Number |
|||
|
1B5 |
500 |
2.0 |
1100-1350 |
2.5-3.0 |
|
1B5 |
502 |
2.0 |
1100-1350 |
2.5-3.0 |
|
1B5 |
510 |
3.0 |
1050-1500 |
2.5-4.0 |
|
1B5 |
512 |
3.0 |
1050-1500 |
2.5-4.0 |
|
1B5 |
520 |
4.0 |
1000-1500 |
3.5-5.0 |
|
1B5 |
521 |
4.0 |
1000-1500 |
3.5-5.0 |
|
1B6 |
530 |
2.8 |
1500-1900 |
3.0-4.0 |
|
1B6 |
531 |
2.8 |
1500-1900 |
3.0-4.0 |
|
1B6 |
532 |
2.8 |
1500-1900 |
3.0-4.0 |
|
1B8 |
550 |
3.3 |
2000-2900 |
3.75-4.75 |
|
1B8 |
552 |
3.3 |
2000-2900 |
3.75-4.75 |
|
1B8 |
553 |
3.3 |
200-2900 |
3.75-4.75 |
|
1B9 |
202 |
3.6 |
3200-3900 |
4.5-5.0 |
Installation and Operating Instructions
1. Provide stroke limitations
to prevent exceeding the maximum allowable stroke height.
2. Provide stops for minimal height
or use Air Spring with,potional Internal Bumper.
3.Max.allowable pressure:100 psi(7bar).
4.Never use Air Spring in torsion.
GUOMAT 1K130070 Air Bags Cross Goodyear 1B5-550
