| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS200-10 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Bellows Style Industrial Air Spring | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Package: | Carton/Cartons |
| OEM No.: | FS 200-10 | Function: | Reduce Shock |
| Applicaton: | For Industrial Machine | Convolution: | Single |
| High Light: | Contitech Single Convoluted Air Spring,FS 200-10 Single Convoluted Air Spring,Rubber Single Convoluted Air Spring |
||
FS 200-10 CI Continental Contitech Single Convoluted Air Spring Vibration Absorption Of Papermaking Equipment
Product Description
Continental Contitech FS200-10
Continental Contitech FS 200-10
Continental Contitech FS200-10 CI
Continental Contitech FS 200-10 CI
Continental Contitech FS 200-10 CI 3/4 NPT
Continental Contitech FS 200-10 CI 1/4 NPT
Continental Contitech FS 200-10 CI 3/4 NPT OS
Continental Contitech FS 200-10 CI 1/4 NPT OS
FS200-10 Single Convoluted Air Bag Technical Data
Cover Plate
The Top Cover Plate Diameter: Ø6.34in
The Bottom Cover Plate Diameter: Ø6.34in
Blind Nut/Screw
Top Cover Plate Screw (Nut) Tooth: 2X3/8UNCX0.59in
Bottom Cover Plate Screw(Nut) Tooth: 2X3/8UNCX0.59in
Screw Center Distance Of Top Cover Plate: 3.5in
Screw Center Distance Of Bottom Cover Plate: 3.5in
Air Inlet/Gas Hole
①1/4 NPT Air Inlet
Screw And Gas Hole Distance Of Top Cover Plate: 1.75in
②3/4 NPT Air Inlet
Screw And Gas Hole Distance Of Top Cover Plate: 1.5in
Rubber Bellow
Rubber Bellow MAX Diameter: Ø9.84in
Maximum Height: 5.5in
Minimum Height: 2.0in
Appropriate Installation Width: Ø10.43in
Vibration isolation – dynamic characteristic values
Design height H: recommended 4.33 inch, minimum 3.54 inch
| Pressure P [psi] | 40 | 60 | 80 | 100 | 120 | Vol.V[in.3] |
| Force(Load) [lbf] | 1130 | 1750 | 2420 | 3100 | 3630 | 159 |
| Spring rate [lbf/in.] | 780 | 1210 | 1650 | 2080 | 2510 | |
| Natural frequency [Hz] | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
Pneumatic application – static characteristic values
Force F [lbf]
|
Pressure P |
[psi] |
40 |
60 |
80 |
100 |
120 |
Vol.V[in.3] |
|
Height H[in.] |
4.5 |
1040 |
1620 |
2280 |
2910 |
3450 |
160 |
|
4.0 |
1280 |
1960 |
2700 |
3380 |
3990 |
150 |
|
|
3.5 |
1460 |
2220 |
3030 |
3800 |
4470 |
130 |
|
|
3.0 |
1600 |
2430 |
3290 |
4120 |
4890 |
110 |
|
|
2.5 |
1730 |
2590 |
3480 |
4390 |
5250 |
86 |
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

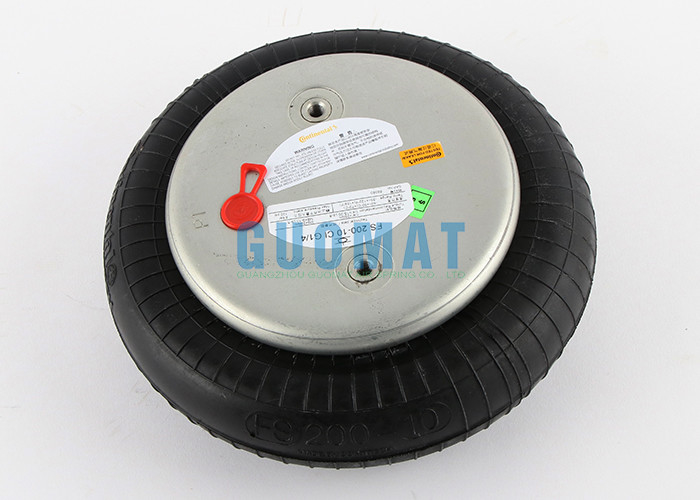

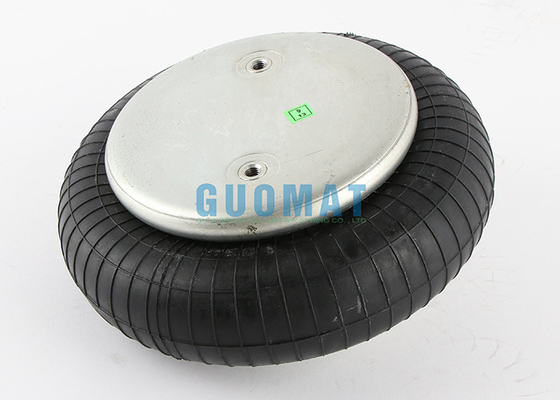

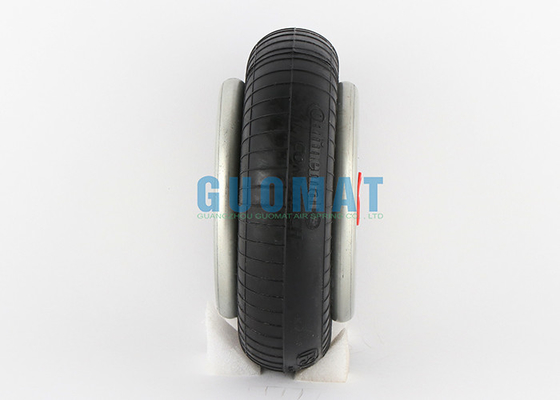

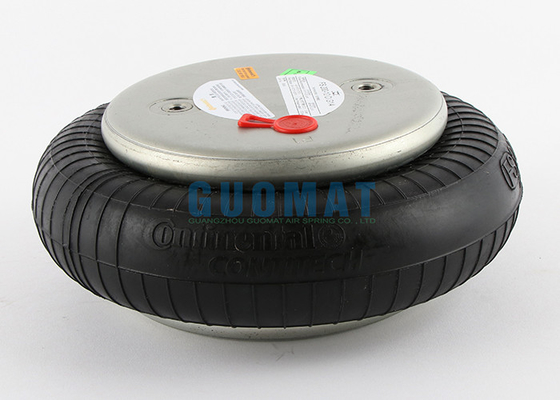

The Real Pictures
