| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7330 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Type: | Triple Convoluted Type | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Fuction: | Reduce Shock |
| Other Name: | Air Suspension Spring; Air Bellow | Natural Height: | 297mm |
| Weight: | 5.9kg | Packing: | Neutral Packaging Or According To Customer Requirements |
| High Light: | 3B7330 Triple Convoluted Air Spring,Industrial Triple Convoluted Air Spring,Triple Convoluted Air Spring Pneumatic Lifting |
||

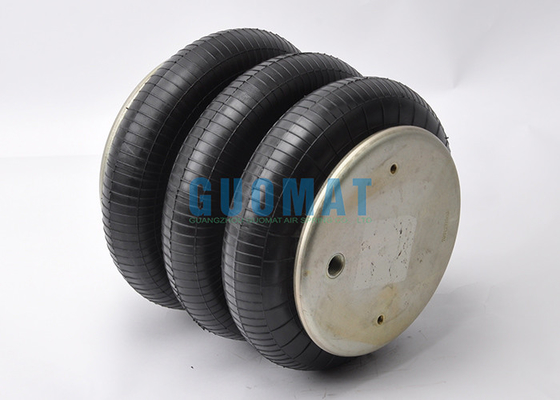

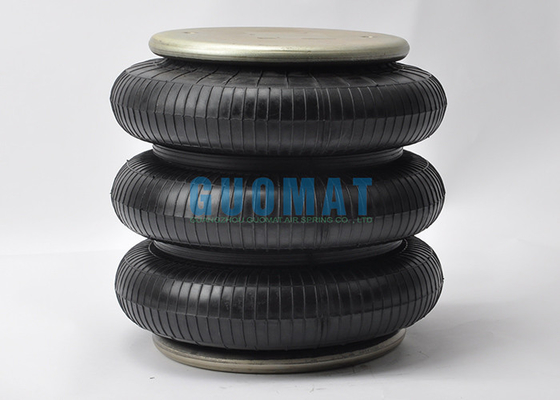

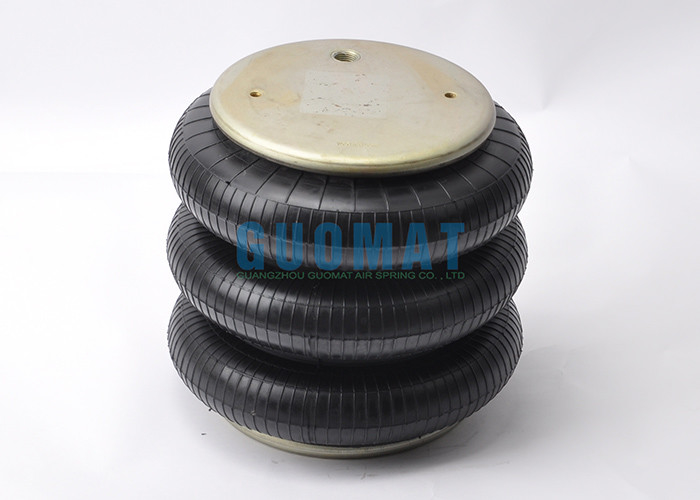

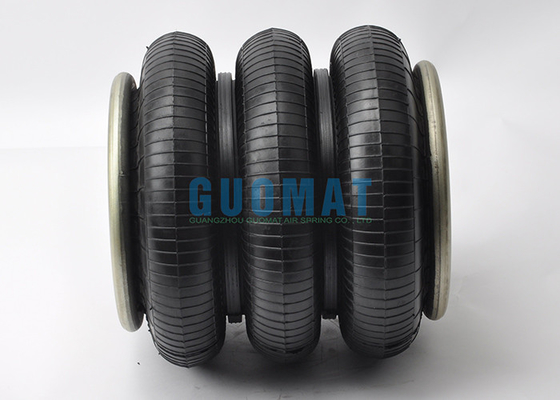

GUOMAT 3B7330 Triple Convoluted Air Spring 1/4 Air Inlet Air Suspension Bag For Industrial Pneumatic Lifting
GUOMAT 3B7330 Triple Convoluted Air Spring 1/4 Air Inlet Air Suspension Bag For Industrial Pneumatic Lifting
Product Information
Part Number : 3B7330
Material : Natural Rubber+Steel
Warranty : 12 Months Warranty
MOQ : 10 Pieces
Type : Suspension Spring ; Air Springs
Package : Carton/Cartons
Port : Huangpu,Guangzhou
Technical Parameters
1.The Top Cover Plate Diameter: 231mm
2.The Bottom Cover Plate Diameter: 231mm
3.Top Cover Plate Screw (Nut) Tooth: 2 Pieces 3/8-16UNC
4.Bottom Cover Plate Screw (Nut) Tooth: 2 Pieces 3/8-16UNC
5.Gas Hole: 1/4NPT/3/4NPT
6.Screw and Air Inlet Distance of Top Cover Plate: 73mm
7.Screw Center Distance of Top Cover Plate: 157.5mm
8.Screw Center Distance of Bottom Cover Plate: 157.5mm
9.Rubber Bellows Natural Diameter: 295mm
Min.pressure: 0Bar
Return force to min.height: ≤400N
Overall weight with cla,ped plates: 5.9kg
Pneumatic application-static characteristic values
Force F [kN]
|
Pressures p |
[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.[l] |
|
Height H [mm] |
380 |
8.8 |
11.9 |
15.1 |
18.4 |
21.7 |
15.1 |
23.6 |
|
340 |
10.7 |
14.4 |
18.2 |
22.0 |
25.9 |
29.8 |
21.6 |
|
|
300 |
12.3 |
16.5 |
20.8 |
25.1 |
29.5 |
33.7 |
19.2 |
|
|
260 |
13.7 |
18.2 |
22.9 |
27.6 |
32.3 |
36.9 |
16.6 |
|
|
220 |
14.8 |
19.5 |
24.6 |
29.6 |
34.6 |
39.5 |
13.8 |
|
|
180 |
15.9 |
21.1 |
26.5 |
31.8 |
37.2 |
42.4 |
10.7 |
|
|
140 |
17.0 |
22.4 |
28.1 |
33.6 |
39.1 |
44.7 |
7.5 |
GUOMAT Other Related Triple Convoluted Air Spring
|
GUOMAT No. |
The Stroke(mm) |
Cover Plate Dia.(mm) |
Max Outer Dia.(mm) |
Air Inlet |
Blind Nut/Screw |
|
3B5181 |
117-460 |
130 |
203 |
3/8-18NPT |
3/8-16UNC |
|
3B7996 |
117-460 |
231 |
330 |
1/4NPTF |
M12X1.75 |
|
3B7994 |
130-460 |
231 |
330 |
1/4NPTF |
3/8-16UNC |
|
3B7995 |
130-460 |
231 |
330 |
1/4NPTF |
3/8-16UNC |
|
3B8008 |
130-460 |
231 |
330 |
1/4NPTF |
3/8-16UNC |
|
3B8027 |
117-460 |
231 |
330 |
1/4NPT |
1/2-13UNC |
|
3B8030 |
130-460 |
231 |
330 |
1/4NPT |
3/8-16UNC |
Air Spring has Many Advantages in Industry
Air Spring: Air Bag ; Air Shock ; Air Spring Bags
Because of its own advantages, it is widely used in modern industial machine. Because of its own advantages, it is widely used in modern industrial machinery. Using compressed air as a material is a kind of vibration isolator that uses the stress of compressed air in its internal structure as a ductile restoring force. It is a non-metallic torsion spring with spring action. The bending stiffness changes with the load. Generally, the height, bearing capacity and stiffness coefficient of the torsion spring are selected to make the torsion spring equipment have ideal characteristics; the height pressure regulating valve is selected, and the operating height can be moderately operated according to the use regulations, and the spring load can be maintained under the condition of changing spring load. high.
1. It has the performance of high-frequency shock absorption and noise reduction and sound insulation
The air spring is composed of gas and rubber, and the internal structure friction is small, so it will not affect the ability to prevent high-frequency vibration due to the vibration of the torsion spring itself.
2. With precise height control
Air springs allow precise height control by adjusting internal air pressure.
3. Wide range of sizes
Air springs are available with isolation loads ranging from 0.44 kN to over 577 kN per mounting point.
4. Extend the life of industrial equipment
The air spring can prolong the service life of the equipment through its excellent vibration isolation ability.
