Convoluted Industrial Air Spring F-450-3 Replacement S-450-3R Yokohama Air Rubber Bellow

Name: Convoluted Industrial Air Spring F-450-3 Replacement S-450-3R Yokohama Air Rubber Bellow
Brand: GUOMAT
SKU: F-450-3
Rating: 4.5 (177 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-450-3

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber	Warranty:	12 Months
Fuction:	Reduce Shock	MOQ:	10 Pieces
Spring Type:	Yokohama Punch Airbag	Color:	Black
Usage:	Industrial Machine	Shape:	Convoluted
High Light:	Convoluted Industrial Air Spring , F-450-3 Industrial Air Spring , Yokohama Industrial Air Spring

Quality Industrial Air Spring F-450-3 Replacement S-450-3R Yokohama Air Rubber Bellow

Product Information

GUOMAT No. : F-450-3

YOKOHAMA : S-450-3

YOKOHAMA : S-450-3R

YOKOHAMA : S 450 3R

Material: Rubber

Warranty: 1 Year

Net Weight:9.55 KG

Gross Weight:10.5 KG

Package Size:173 mm*500mm*500mm

Application

Cable tensioning mechanism
Pressure Laminating Machine
Pneumatic valves
Calender Roller
Pneumatic lifting platform
Press roll adjustment mechanism
Industrial centrifuge
Industrial washing machine
Vibrating screen
Vibration Motor Isolation Table
Vibration grinder
Automation console

Characteristics of Air Spring

Long service life and excellent durability.
The maintenance is very simple, there is no frictional sliding part, so there is no need to add lubricating oil.
The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.
The elastic and soft spring parameters can be obtained, the load is large and the elasticity is soft, and the anti-vibration performance is excellent.
It has a damping effect. If it is used together with an auxiliary air chamber and a throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.
Easy to install, simple structure, easy to install and disassemble.

GUOMAT Rubber Air Spring

GUOMAT No.	Yokohama No.	Hight H (mm)			Commonly Maximum Stroke(mm)
GUOMAT No.	Yokohama No.	Design High(mm)	Max High(mm)	Min.High(mm)	Commonly Maximum Stroke(mm)
F-400-2	S-400-2	102	167	57	±45
F-400-3	S-400-3	160	260	90	±68
F-400-4	S-400-4	218	348	123	±90
F-400-5	S-400-5	276	435	156	±113
F-450-1	S-450-1	72	117	40	±30
F-450-2	S-450-2	102	172	57	±45
F-450-3	S-450-3	160	270	90	±68
F-450-4	S-450-4	218	363	123	±90
F-450-5	S-450-5	276	456	156	±113

Air Spring

Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.

As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.

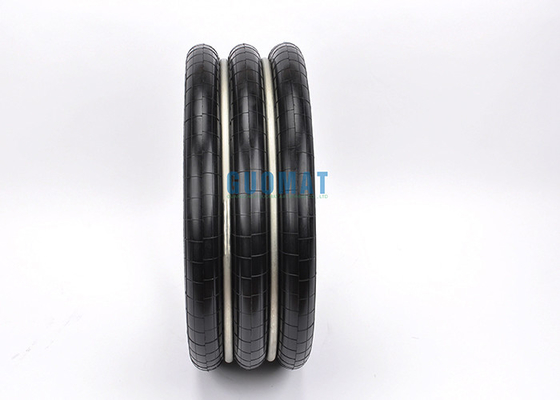

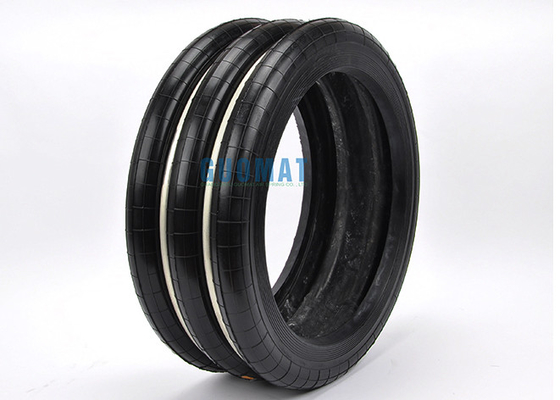

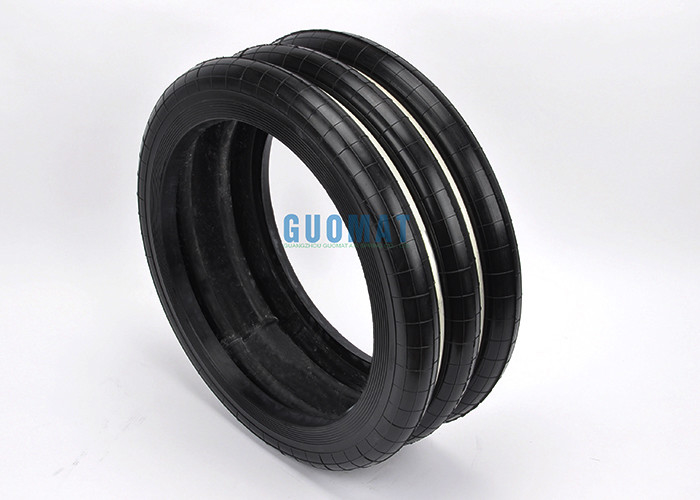

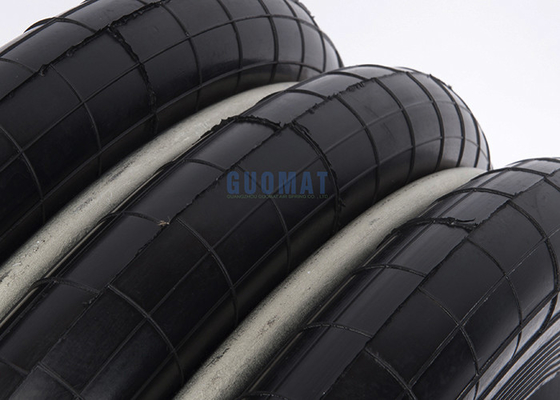

The Real Pictures
