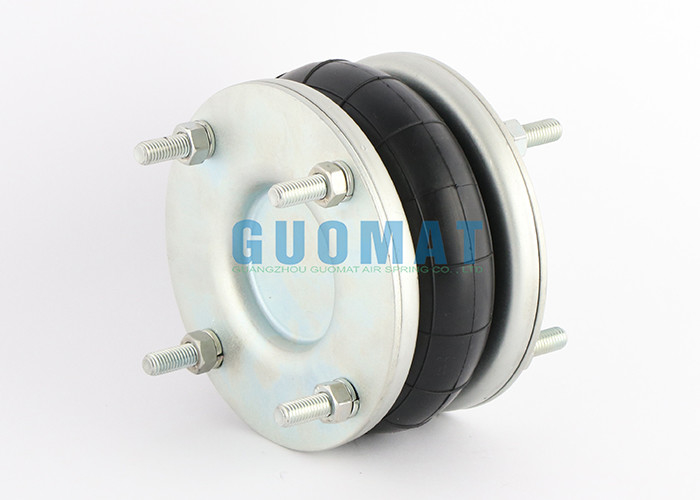

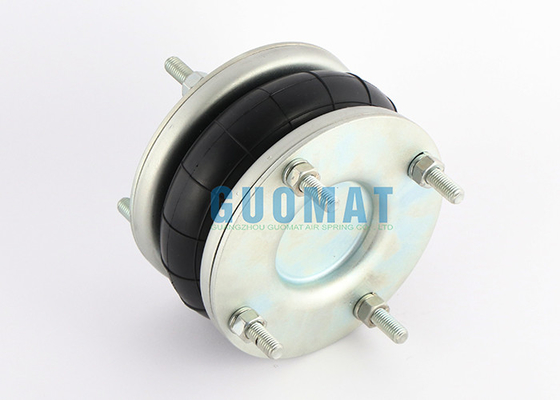

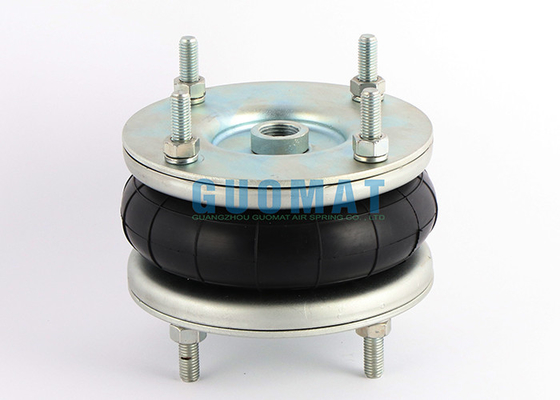

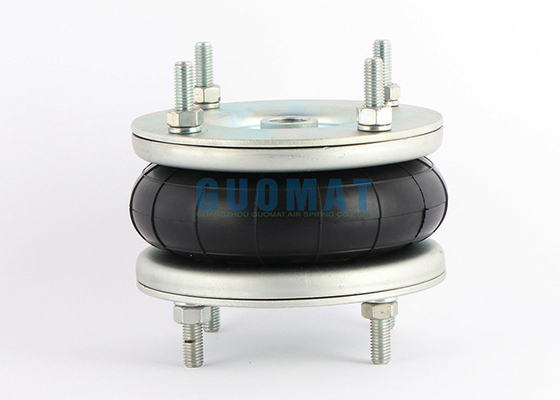

GUOMAT 6''X1 Firestone Industrial Air Spring W01-R58-4052 SP1368 Dunlop For Modified Car Suspension

GUOMAT 6''X1 Firestone Industrial Air Spring W01-R58-4052 SP1368 Dunlop For Modified Car Suspension


Cross Reference Number

Firestone Part Number: W01-R58-4052

Firestone Part Number: WO1-R58-4052

Firestone Part Number: W01 R58 4052

Firestone Part Number: W01R584052

Dunlop PNEURIDE Number: 6''X1 (Steel)

Dunlop PNEURIDE Number: 6x1 (Steel)

Dunlop SPRINGRIDE Number: SP1536

Dunlop SPRINGRIDE Number: SP 1536

Contitech Part Number: FS76-7DS

Contitech Part Number: FS 76-7DS

Contitech Part Number: FS 76-7 DS

Norgren Part Number: M/31061

Norgren Part Number: M 31061

Norgren Part Number: M31061

Parker Part Number: 9109004

Dunlop 6X1 Single Convoluted Air Suspension Bag Technical Data

1. The Top Cover Plate Diameter: Ø153.5mm

2. The Bottom Cover Plate Diameter: Ø153.5mm

3. Gas Hole: G1/2

4. The Screw (Nut): 4-M10

5. The number of Screw (Nut): 8 Pieces

6. Distance Between Screws (Nuts): Ø127mm

7. Natural Height: 77.5mm

8. The Natural Rubber Bellow Diameter: Ø159mm

9. Working Pressure: ≤0.7Mpa

The Industrial Application
Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life.Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.
Characteristic.
● The low cost, wide range of specifications
● The long service life, no maintenance and lubrication, without the need for internal control rod or piston
● no friction effect, soft medium
● The bending capacity, lateral load capacity, compact original height

Goodyear Models VS Firestone Models
