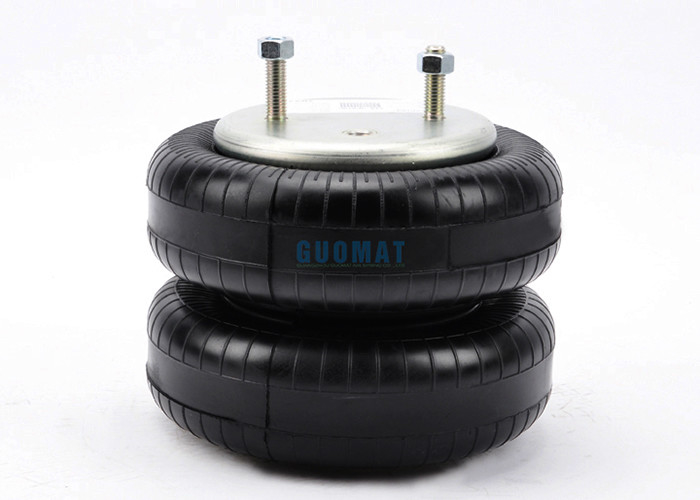

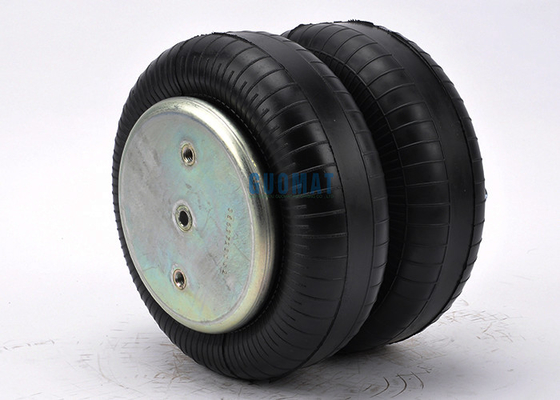

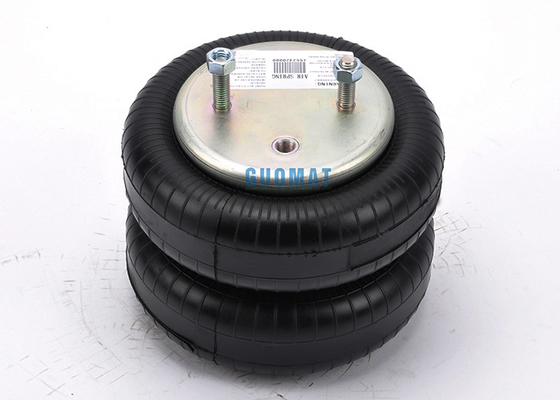

2B9-253 Goodyear Air Spring Assembly W01-358-6945 Double Convoluted Air Balloon For Trailer
Product Description
| MANUFACTURER |
PART NUMBER |
| FIRESTONE |
W01-358-6945 |
| FIRESTONE |
20-2 |
| CONTITECH |
FD 200-25 427 |
| GOODYEAR |
2B9-253 |
| GOODYEAR |
578923206 |
| TRIANGLE |
6332 |
| TRIANGLE |
4427 |
Firestone Number: W01-358-6945
Firestone Number: W01 358 6945
Firestone Number: W013586945
Contitech Number: FD200-25 427
Contitech Number: FD 200-25 427
Goodyear Number: 2B9-253
Goodyear Number: 2B 9-253
Goodyear Number: 2B9 253
Goodyear Number: 578923206
Goodyear Number: 578-923-2-06
Triangle Number: 6332
Triangle Number: 4427
Ridewell Number: 1003586945C
Leland Number: Sc2125
Watson&Chalin Number: AS0119F
Watson&Chalin Number: AS01451G
Product Detail Data
|
Failure Testing
|
≥3 millions
|
|
Working Temperature
|
-40℃ bis +70℃
|
|
Technical Data
|
Top Cover Plate Diameter:160mm
|
|
Bottom Cover Plate Diameter:160mm
|
|
Gas Hole / Air inlet:1/4NPTF
|
|
Rubber Bellows MAX Diameter:232.5mm
|
|
The Natural Height: 235mm
|
|
Screw Center Distance of Top Cover Plate:89mm
|
|
Screw Center Distance of Bottom Cover Plate:89mm
|
|
Screw And Gas Hole Distance of Top Cover Plate:44mm
|
Application of Air Spring in Automatic Industrial Washing Machine (Washing Machine)
At first, the fully automatic washer-extractors were installed on the ground with a fixed connection. Due to the relatively large loading capacity of industrial washing machines, the impact and vibration generated during high-load washing can even damage the ground.
The second-generation washer-extractor abandons the above-mentioned connection method and adopts the method of spring plus damper to obtain a good shock-absorbing effect. However, due to the high vibration frequency of the spring itself, once it is separated from the machine at the middle and high If the frequency is the same, there will be a great resonance. If this resonance cannot be effectively eliminated, a lot of noise and vibration will be generated, which will cause damage to the machine and affect the service life of the machine.
The third-generation washer-extractor uses air springs for shock absorption. Since the vibration frequency of the air spring is as low as 2HZ, its effect of absorbing high-frequency vibrations is very obvious. In addition to other advantages of the air spring, the vibration and vibration of the washer-extractor The noise is greatly reduced, thereby reducing the maintenance rate of the washing equipment and prolonging the service life of the machine.
