| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B9202 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Rubber: | High-Quality Rubber | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Metal+Rubber | Quality: | 100% Tested |
| Other Name: | Trailer Air Spring | Air Fitting: | G3/4 |
| Number Of Convolution: | One | Natural Height: | 128mm |
| High Light: | 1B9-202 Goodyear Industrial Air Spring,Industrial Air Spring Single Convoluted,578 91 3 201 Industrial Air Spring |
||

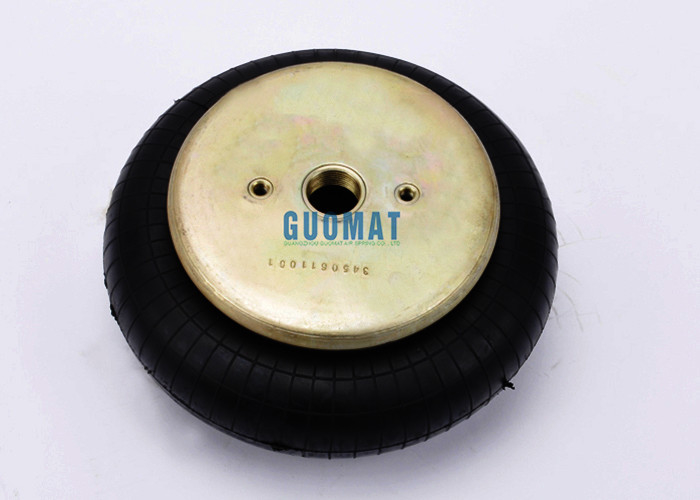

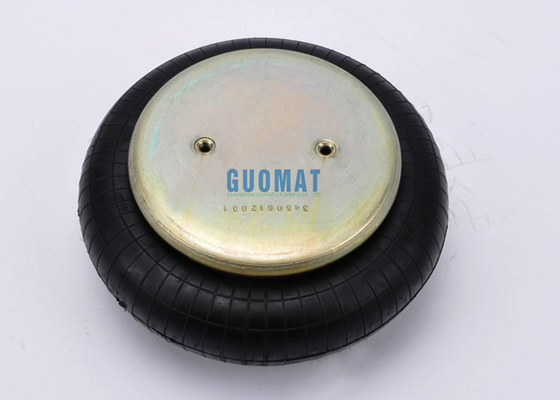

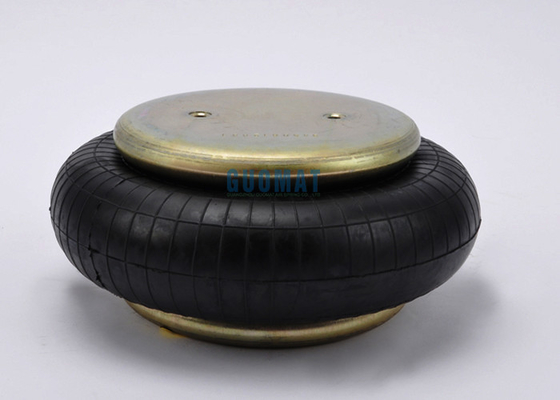

Industrial Air Spring 1B9-202 Goodyear Single Convoluted Air Ride Spring Bag 578 91 3 201
Cross Reference Number
|
Manufacturer |
Part No. |
|
GOODYEAR |
1B9-202 |
|
GOODYEAR |
1B9 202 |
|
GOODYEAR |
1B 9-202 |
|
GOODYEAR |
578913201 |
|
GOODYEAR |
578 91 3 201 |
|
GOODYEAR |
578-91-3-201 |
Brand Name: GUOMAT
Model No.: 1B9202
Material: Rubber+Steel
Warranty: 12 Months
Type: Industrial Air Spring
Delivery Time: About 3-8 working days after receive your payment
Payment: L/C,T/T,West Union,PayPal
Shipment: FedEx,DHL,UPS,EMS,By air,By sea
GUOMAT 1B9202 Single Convoluted Air Bellow Technical Data Sheet
|
Part Number |
1B9202 |
|
OEM Number |
Goodyear 1B9-202 |
|
Working temperature |
-40°C bis +70°C |
|
Failure testing |
≥3 millions |
|
Top Cover Plate Diameter |
160mm |
|
Bottom Cover Plate Diameter |
160mm |
|
Gas Hole / Air inlet |
G3/4 |
|
Rubber Bellows Natural Diameter |
222mm |
|
Natural Height |
128mm |
|
Top Cover Plate Screw (Nut) Tooth |
2XM8X1.25 |
|
Bottom Cover Plate Screw (Nut) Tooth |
2XM8X1.25 |
|
Screw Center Distance of Top Cover Plate |
70mm |
|
Screw Center Distance of Bottom Cover Plate |
70mm |
Industrial air springs are widely used in papermaking machinery, vehicle testing equipment, mechanical fixtures, vibration tables, etc., which can effectively improve the working efficiency, safety and service life of the equipment. In these fields, air springs play an important role in shock absorption, lifting, and support, helping customers save manufacturing costs and win more economic profits.
1. The product has the characteristics of low cost, wide application and simple operation.
2. Long service life, no need for maintenance and lubrication.
3. This product is flexible in expansion and contraction, strong in carrying capacity, convenient in design and simple in structure.
4. No friction, it is a soft medium.
Goodyear Air Bag
1B5-550 ; 1B 5-550 (Single Convoluted Air Spring)
1B6-833 ; 1B 6-833 (Single Convoluted Air Spring)
1B8-500 ; 1B 8-500 (Single Convoluted Air Spring)
1B8-550 ; 1B 8-550 (Single Convoluted Air Spring)
1B9-200 ; 1B 9-200 (Single Convoluted Air Spring)
1B12-313 ; 1B12-313 (Single Convoluted Air Spring)
2B8-150 ; 2B 8-150 (Double Convoluted Air Spring)
2B8-550 ; 2B 8-550 (Double Convoluted Air Spring)
2B9-295 ; 2B 9-295 (Double Convoluted Air Spring)
2B9-200 ; 2B 9-200 (Double Convoluted Air Spring)
2B12-425 ; 2B 12-425 (Double Convoluted Air Spring)
2B12-311 ; 2B 12-311 (Double Convoluted Air Spring)
2B12-345 ; 2B 12-345 (Double Convoluted Air Spring)
2B12-346 ; 2B 12-346 (Double Convoluted Air Spring)
3B12-301 ; 3B 12-301 (Triple Convoluted Air Spring)
3B12-310 ; 3B 12-310 (Triple Convoluted Air Spring)
3B14-374 ; 3B14-374 (Triple Convoluted Air Spring)
3B14-452 ; 3B14-452 (Triple Convoluted Air Spring)
1B9-202 Single Convoluted Bellows Type Air Spring
