| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FT 330-29 466 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Industrial Air Spring | Spring Material: | Rubber + Steel |
|---|---|---|---|
| Product Warranty: | 12 Months | Condition: | Brand-New |
| Stud: | 1/4NPT 3/4-16UNC | The Stroke: | 117-460mm |
| Number Of Convolution: | 3 | Application: | Paper Machine |
| High Light: | W01-358-8027 Rubber Air Spring,3B12-310 Rubber Air Spring,Triple Convoluted Rubber Air Spring |
||

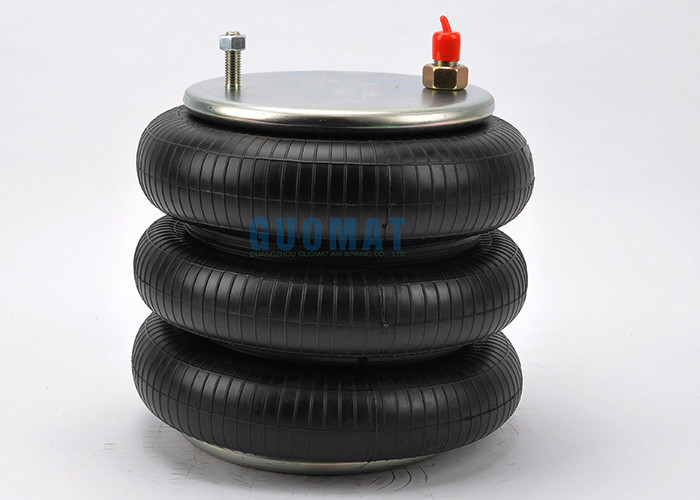

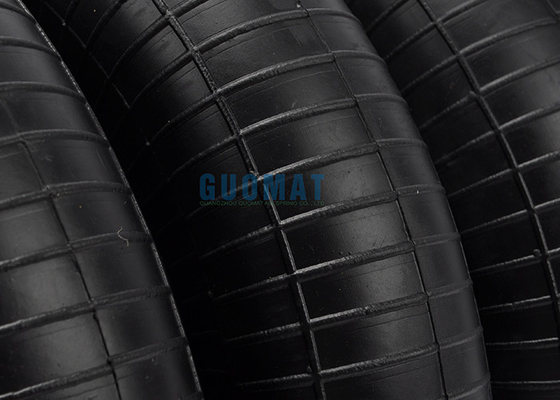

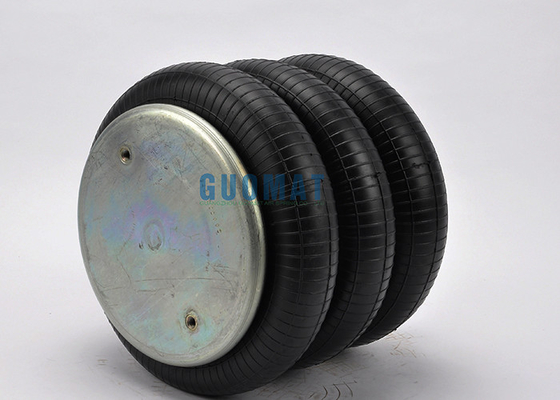

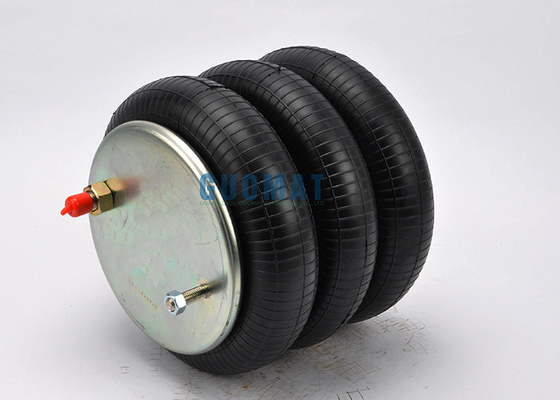

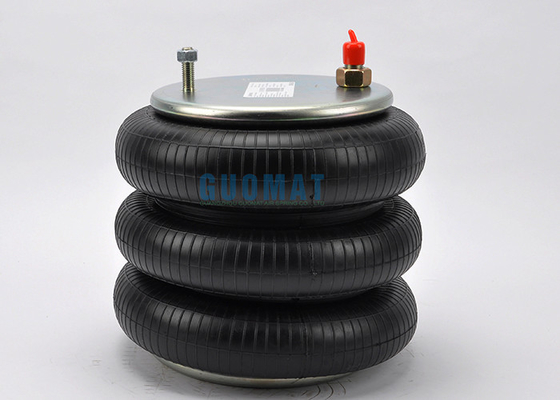

Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag
Product Description
|
Cross Reference Number |
|||
|
Firestone |
W01-358-8027 |
Firestone |
W01 358 8027 |
|
Firestone |
W013588027 |
Firestone |
W01-358-8038 |
|
Firestone |
W013588038 |
Firestone |
W01 358 8038 |
|
Firestone |
W01-358-8029 |
Firestone |
W013588029 |
|
Firestone |
W01 358 8029 |
Contitech |
FT330-29 466 |
|
Contitech |
FT 330-29 466 |
Goodyear |
3B12-310 |
|
Goodyear |
3B 12-310 |
Goodyear |
3B12 310 |
|
Goodyear |
578933100 |
Goodyear |
578-933-1-00 |
|
Triangle |
6334 |
Triangle |
4466 |
Arvin Meritor (Air Spring) 200117
Suspension (Air Spring) 200117
Silent Drive (Air Spring)
Histeer (Air Spring)
W01-358-8027 Firestone Air Bellow Technical Data
|
Technical Data |
Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm | |
| Combo Stud: 1/4NPT ; 3/4-16UNC | |
| Bolt/Stud: 1/2-13UNC | |
| Rubber Bellows MAX Diameter:330mm | |
| The Working Stroke:MAX 460 mm to MIN 117 mm | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw Center Distance of Top Cover Plate:157mm | |
| Screw Center Distance of Bottom Cover Plate:157mm |
Characteristics of Air Springs
Goodyear Air Speing VS Goodyear Air Bellow
|
Goodyear Number |
Bellow Number |
Goodyear Number |
Bellow Number |
|
2B12-432 |
578923309 |
2B12-427 |
578923309 |
|
2B12-320 |
578923309 |
2B12-311/454 |
578923309 |
|
2B14-356453 |
578923353/1 |
2B12-434 |
578923310 |
|
2B12-345 |
578923315 |
2B12-346/440 |
578923315 |
|
2B12-440 |
578923315 |
2B14-476 |
578923356 |
|
2B14-383 |
578923356 |
2B8-150 |
579923530 |
|
2B8-153 |
579923530 |
2B8-550 |
579923530 |
|
2B8 |
579923530 |
3B12-335 |
578933100 |
|
3B12-304 |
578933100 |
3B12-300 |
578933100 |
|
3B12-301 |
578933100 |
3B12-310 |
578933100 |
|
2B12-313 |
578933350 |
2B12-459 |
578933350 |
